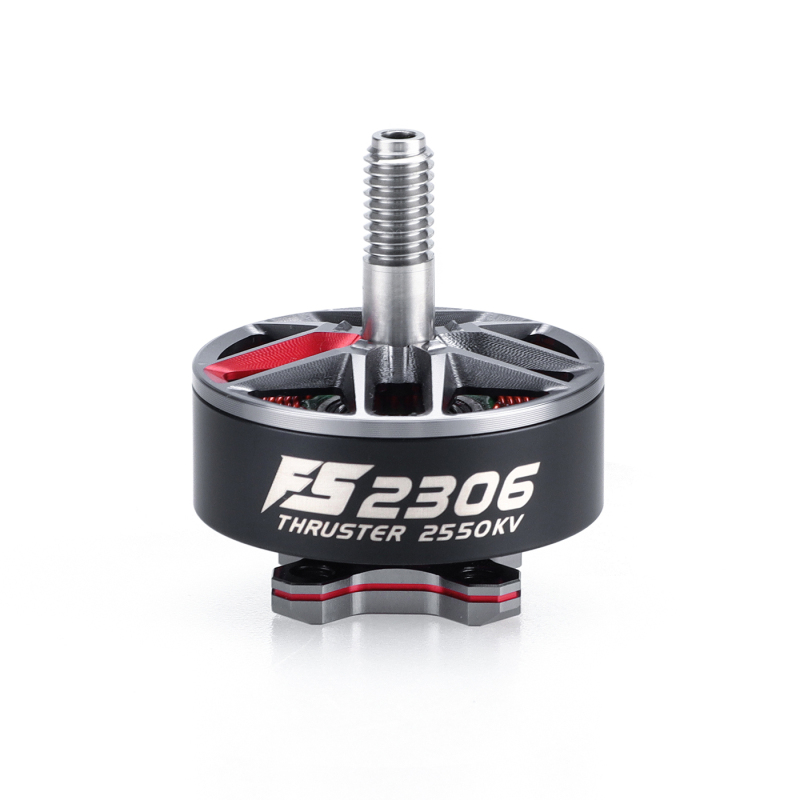

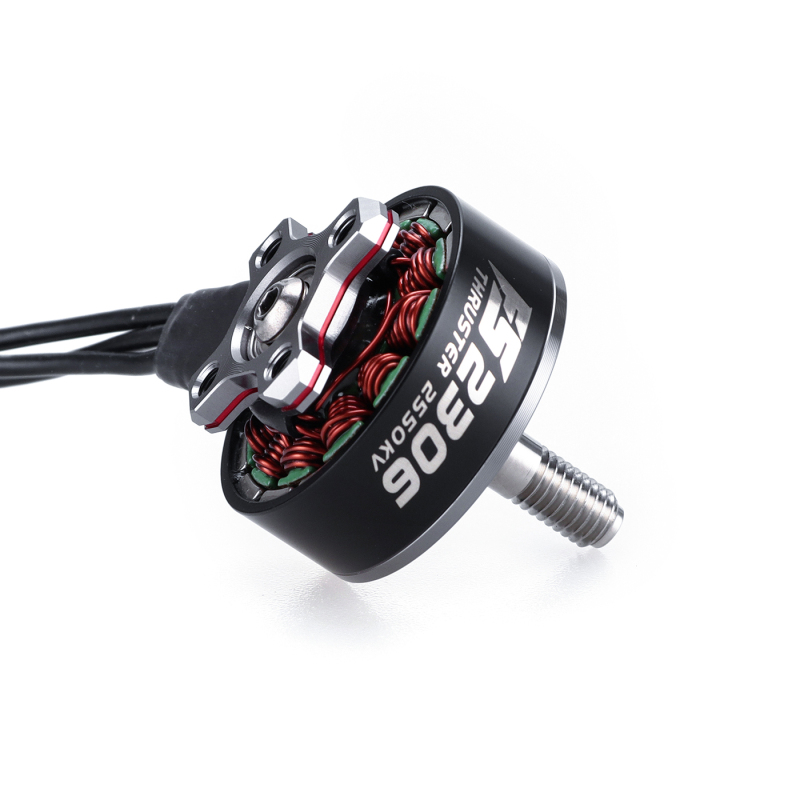

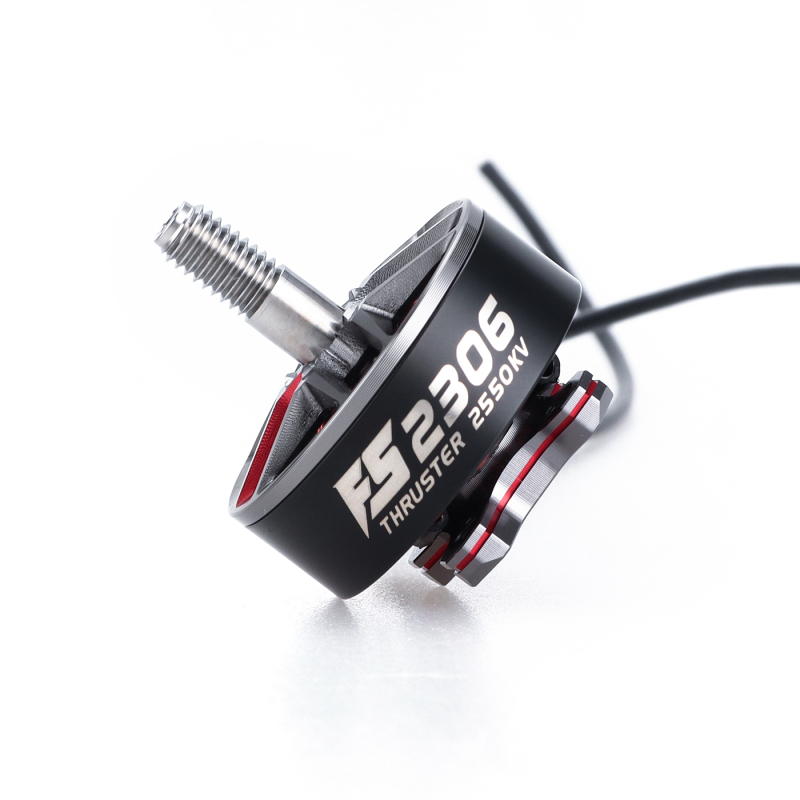

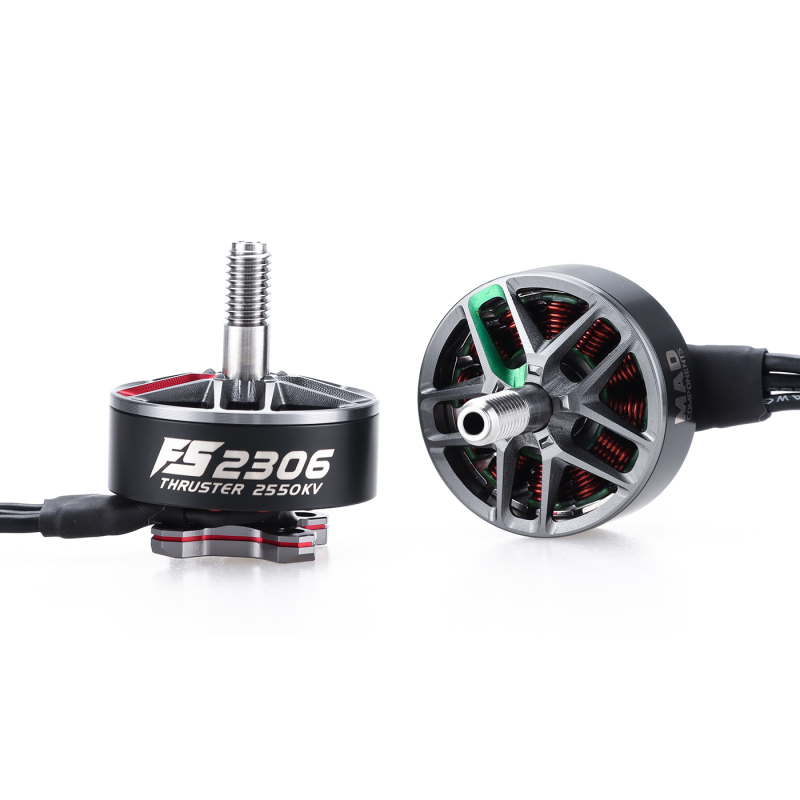

FS 2306 Thruster FPV Drone motor

SKU: 0101DJ1540
Recommended  accessories:
1.Motors: 2205/2206/2207/2305/2306
ESC: 30A-50A Propeller: 5 inch Battery: 4S 1500mAh 6s 11 50mAh
2.Motors: 2207 /2207.5/2305/2306/2407
ESC: 35A-60A Propeller: 6 inch Battery: 4S 1500mAh 6s 1300mAh
3.Motors: 2305/2306/2407/2408/2507
ESC: 40A-60A Propeller: 7 inch Battery: 4S 1800mAh 6s 2200mAh
$0.00 $18.90
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    1750KV-6S
    1960KV-6S
    2550KV-4S

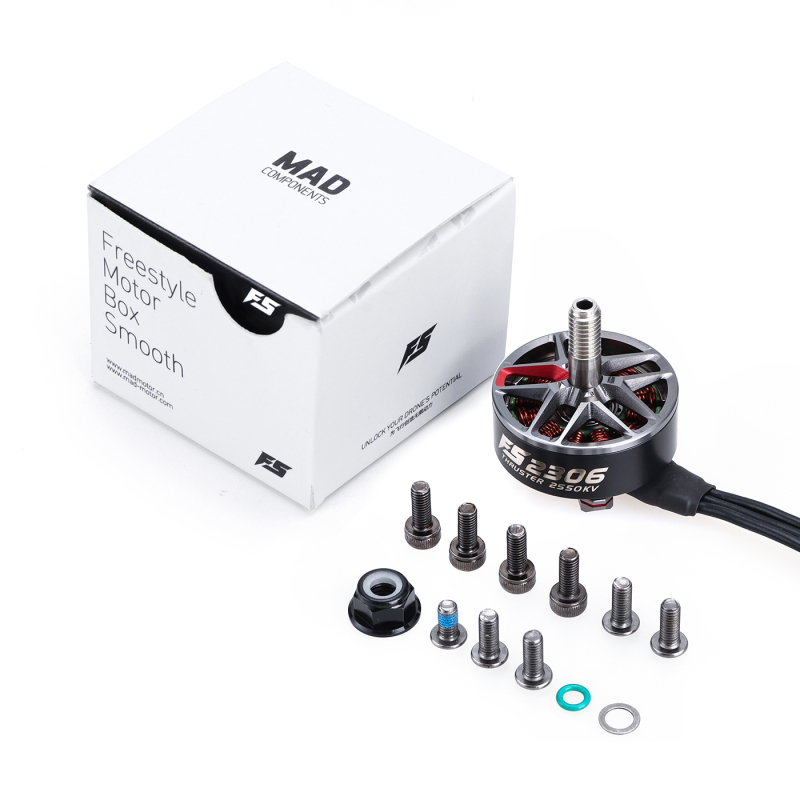

    Rotors + locking shaft screw + O ring + Gaskets
  • Color:
    Red
    Green
    Please select the information you wantX
Quantity
-
+
Download
  • MAD Thruster FS2306 Brushless motor for 5-6inch freestyle FPV drone
  • MAD Thruster FS2306 Brushless motor for 5-6inch freestyle FPV drone
  • MAD Thruster FS2306 Brushless motor for 5-6inch freestyle FPV drone
  • MAD Thruster FS2306 Brushless motor for 5-6inch freestyle FPV drone
  • MAD Thruster FS2306 Brushless motor for 5-6inch freestyle FPV drone
  • Description

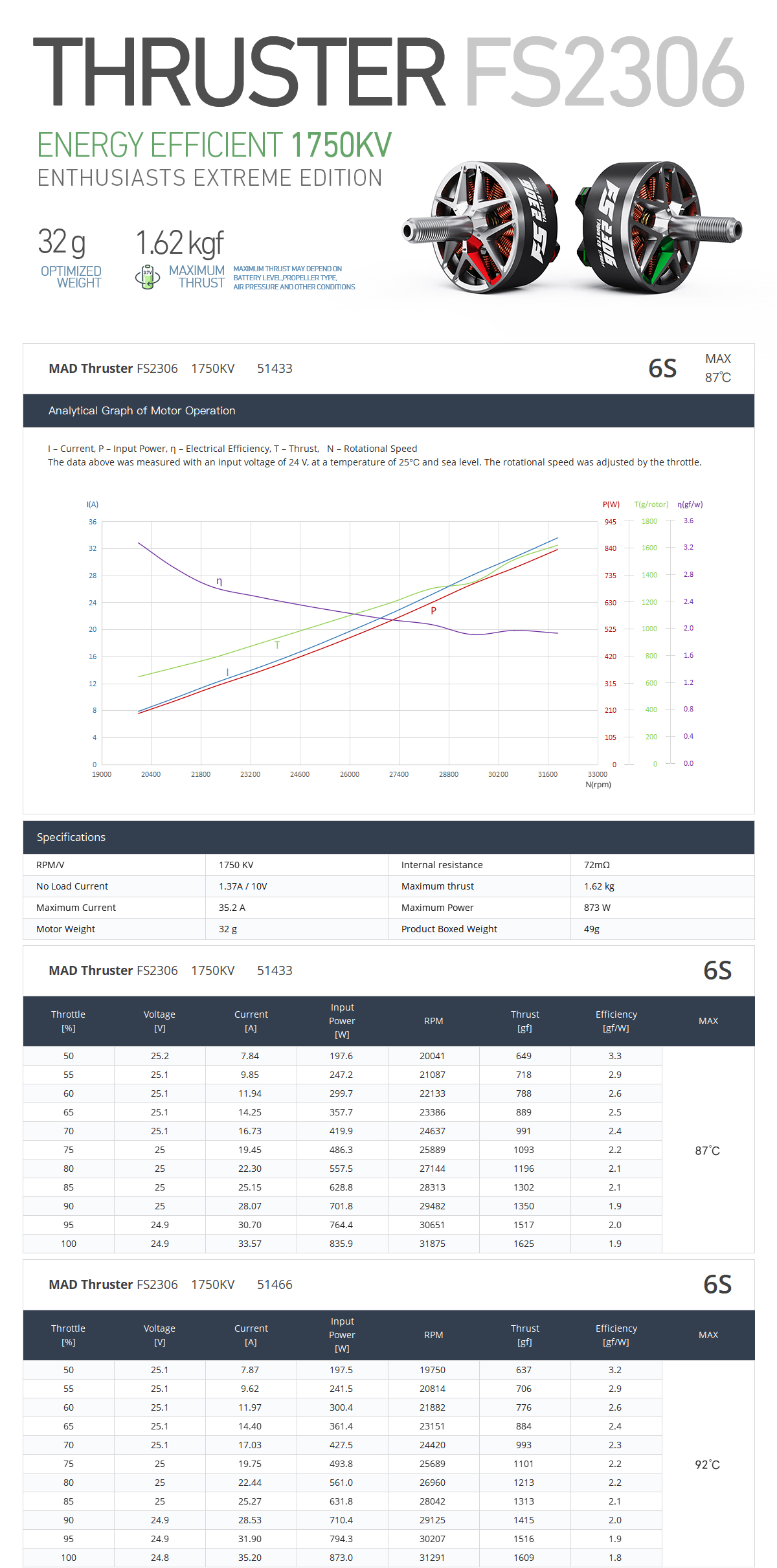

  • 1750KV-6S

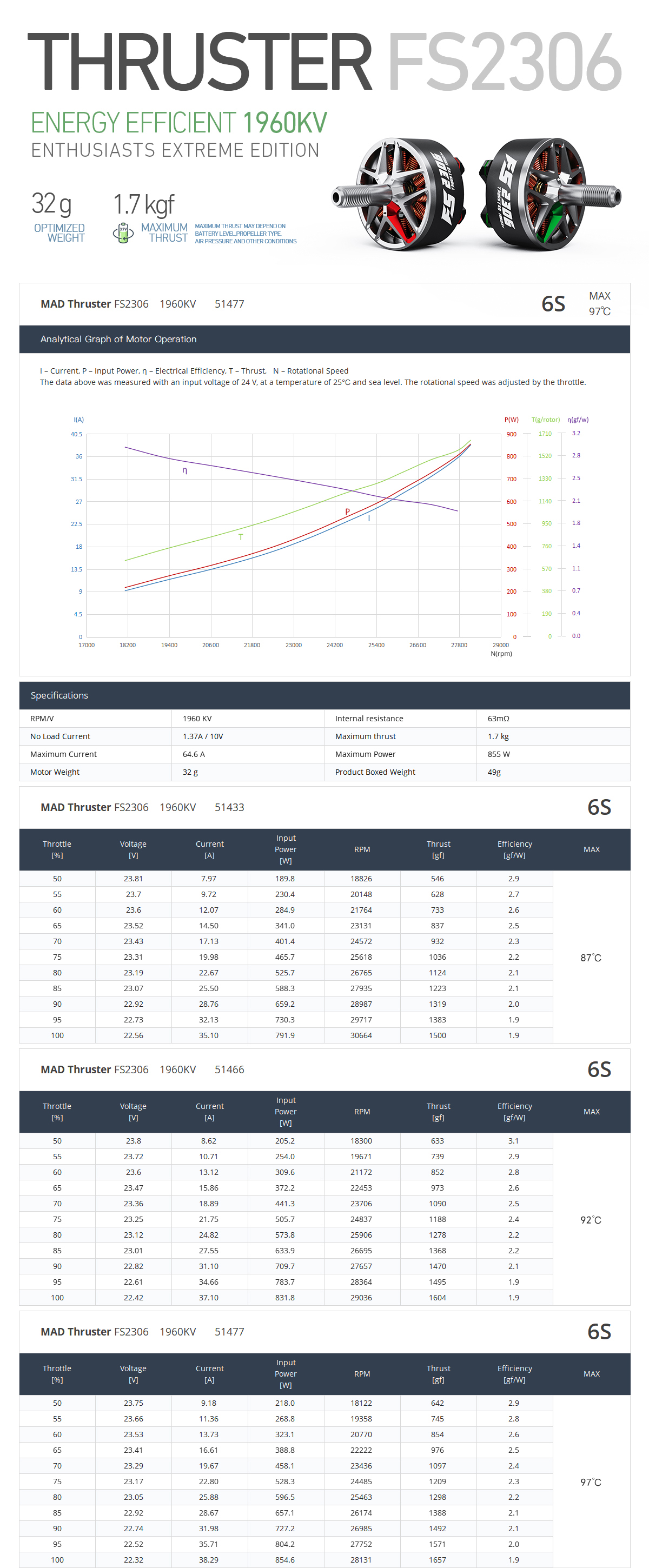

  • 1960KV-6S

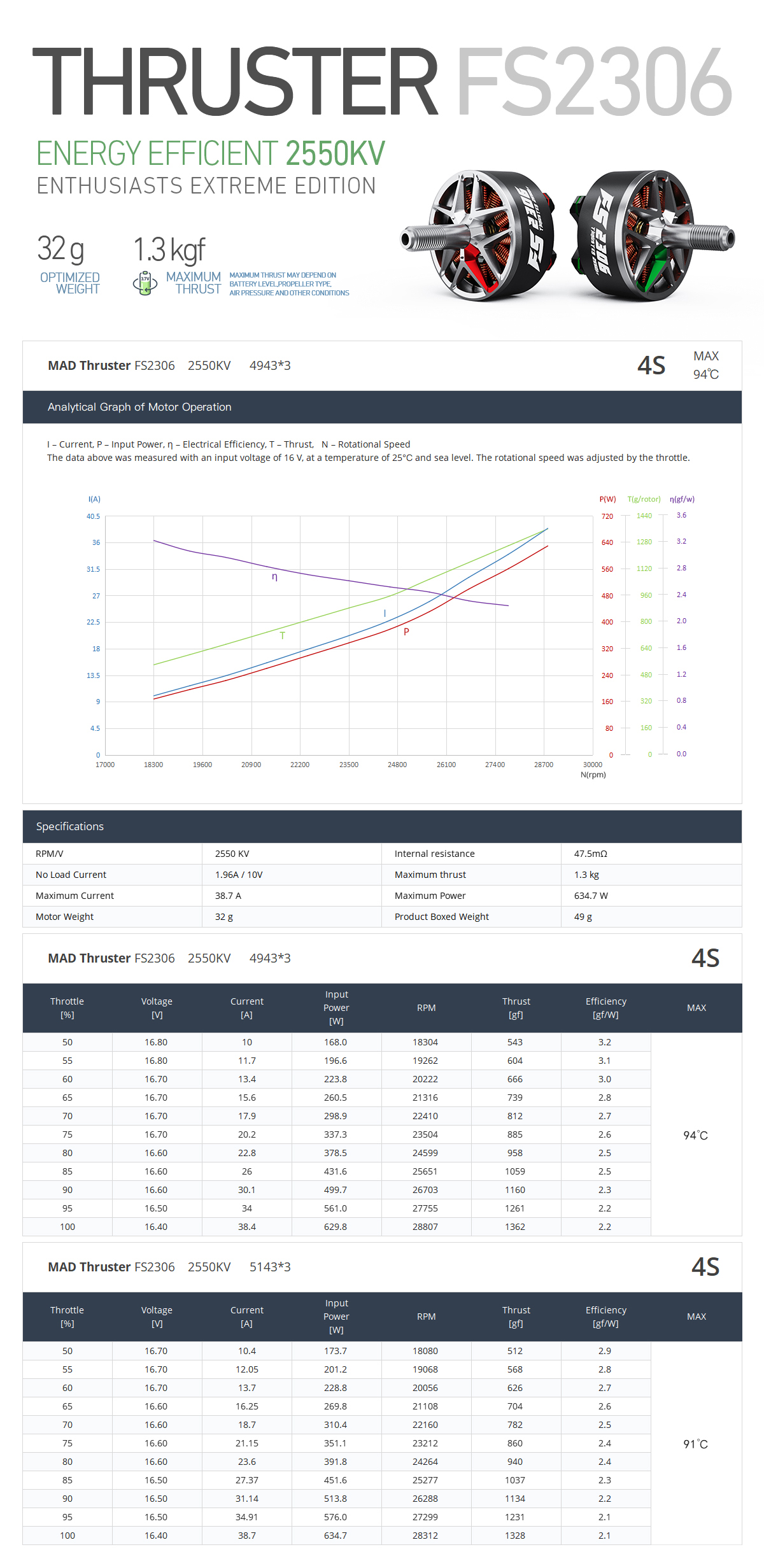

  • 2550KV-4S

Motor Data


Motor Model
MAD Thruster FS2306 V1.0
Motor Number of slots
12N14P
Motor Size
D:28.2 ×32.2 mm Rotor Balance
≤5 mg
Propeller Mounting Holes
M5 Nut
Motor Balance
D:16 M3×4
Shaft Diameter
IN: 4 mm Cable Length
150 mm 20# Awg(Black) silicone

___________________________________________________________________________________________________________________________

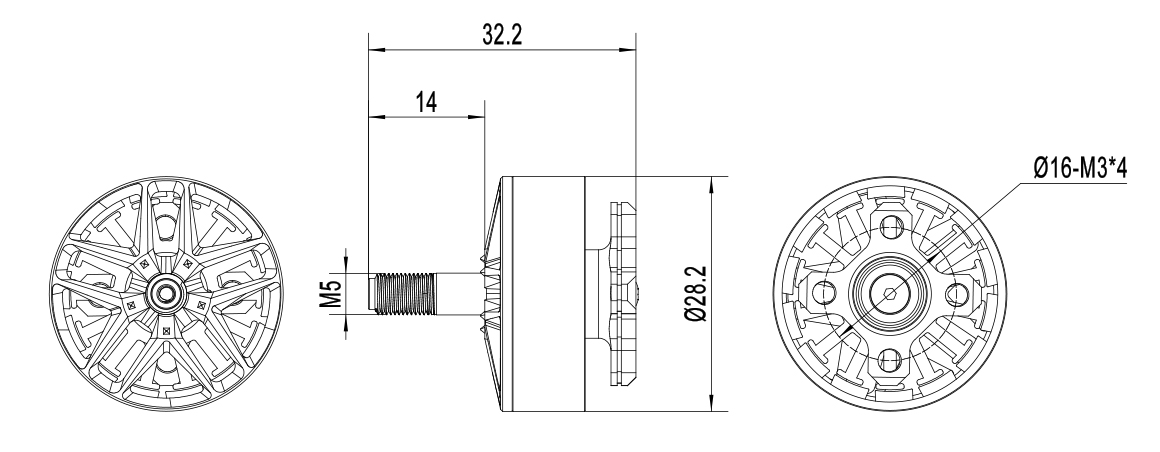

Drawing and mount holes
