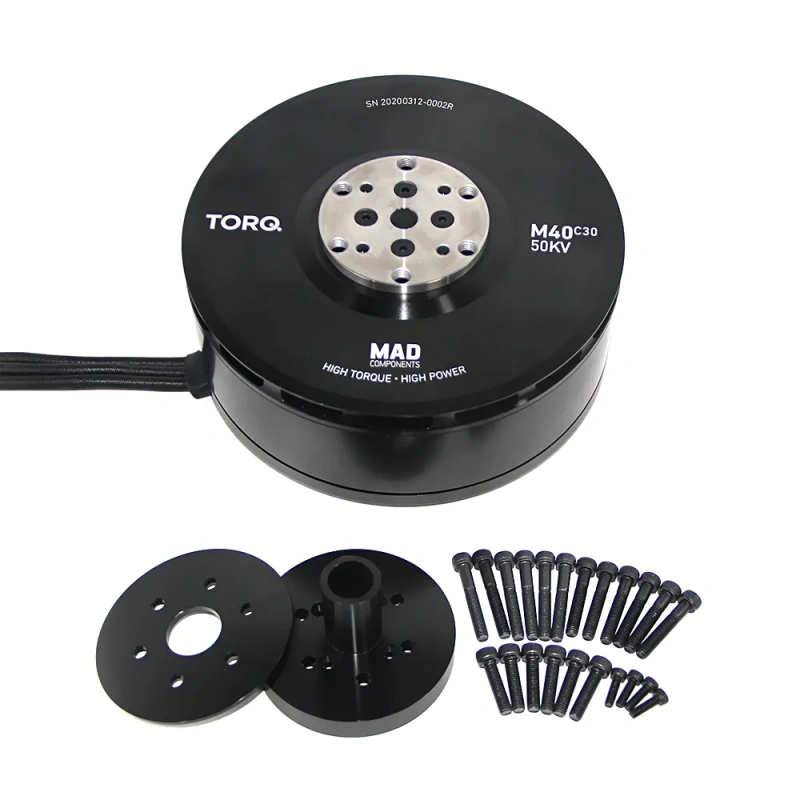

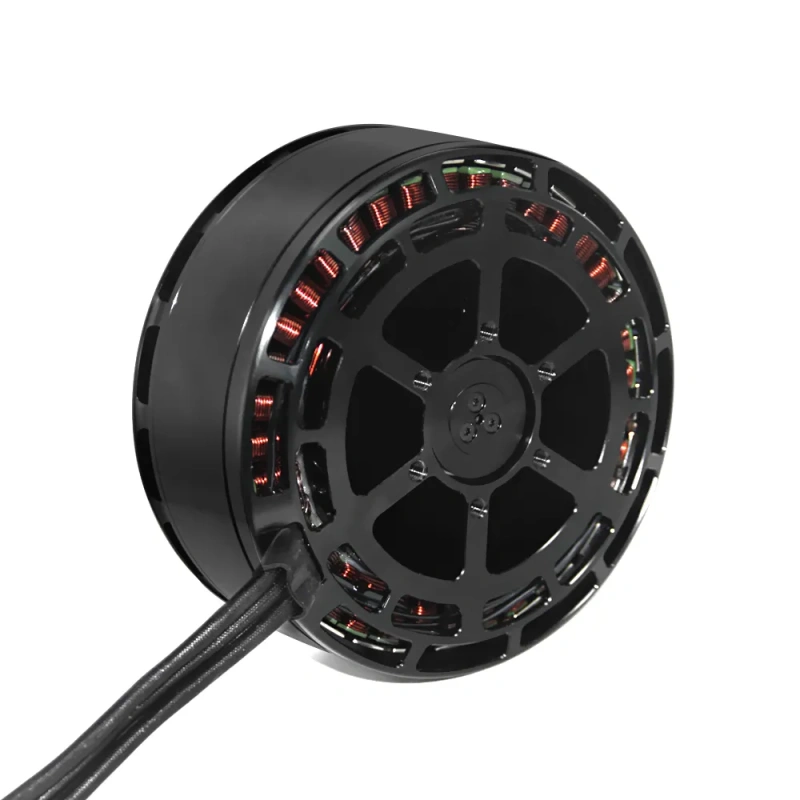

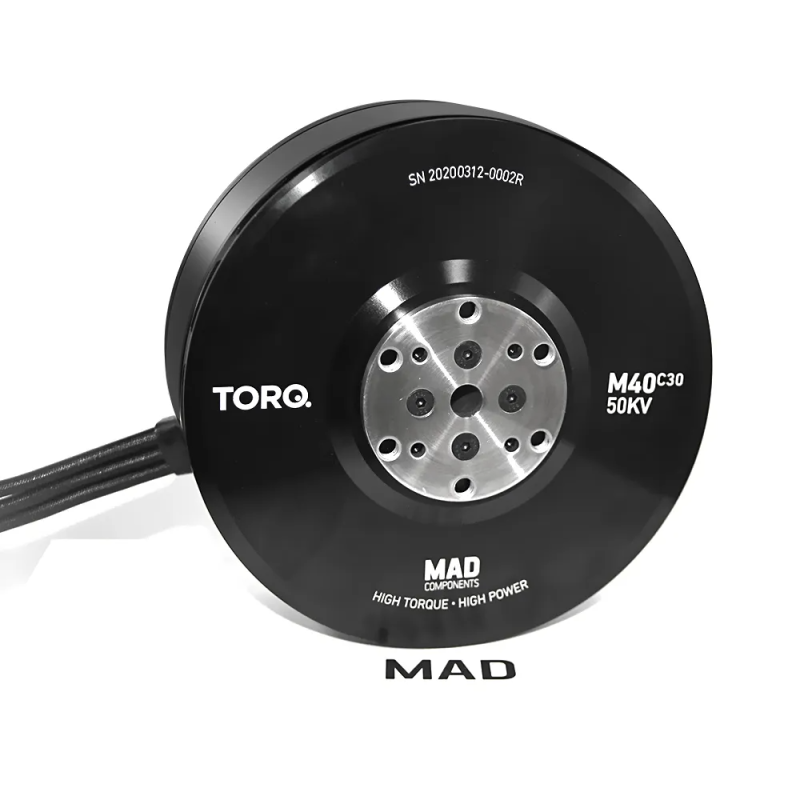

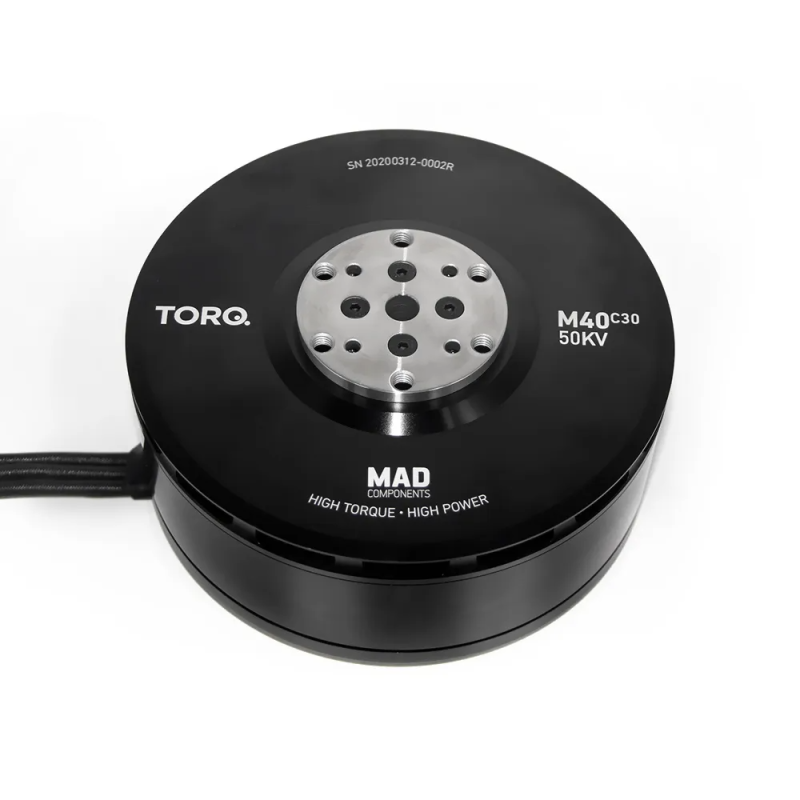

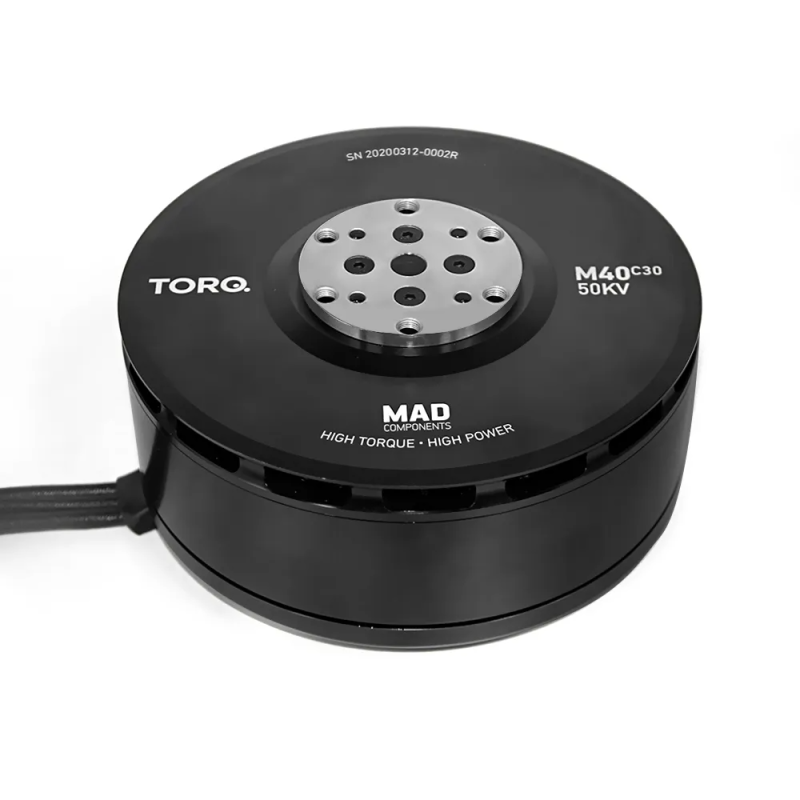

M40C30 50KV v1.0 Brushless Motor for paramotor

SKU: 0101DJ0375
The M40C30 19KW large brushless motor for paramotor paragliders is also designed for cargo transport,
This type of motor is built with industrial grade components for an unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV).
$0.00 $999.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    50KV
    Please select the information you wantX
Quantity
-
+
  • MAD M40C30 50KV 70kg DC Brushless Drone Motor 19KW for VTOL drone paramotor
  • MAD M40C30 50KV 70kg DC Brushless Drone Motor 19KW for VTOL drone paramotor
  • MAD M40C30 50KV 70kg DC Brushless Drone Motor 19KW for VTOL drone paramotor
  • MAD M40C30 50KV 70kg DC Brushless Drone Motor 19KW for VTOL drone paramotor
  • MAD M40C30 50KV 70kg DC Brushless Drone Motor 19KW for VTOL drone paramotor
  • Description

Introducing our TORQ Paramotor Series M40C30 V2.1 50KV Brushless Motors light version. Thanks Cedar Anderson from electric paramotoring of Australia, he gave the advice to keep this light version motor to be published. He has been testing different Motor, ESC and propeller combinations. So far the M40C30 V2.1 MAD motor with a 450A ESC using 18S LiPo is the best combination for the price, weight, thrust and efficiency. Using a 125cm propeller it performs nicely, In the configuration it produces 59kg of thrust which is really good for his application. He has performed 10X apron 15 minute flights, and he is really impressed with this motor. It runs nice and cool, it is also quite efficient.

Motor Data

Motor Model MAD M40C30 IPE V2.1 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:152 × 65 mm Motor Balance 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤20 mg
Propeller Mounting Holes D:50 M6×6 Motor Balance ≤30 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:50 M6×6
Bearing HR30202J / 3202A-2RZTN Disruptive test 500 V


___________________________________________________________________________________________________________________________

Drawing and mount holes
