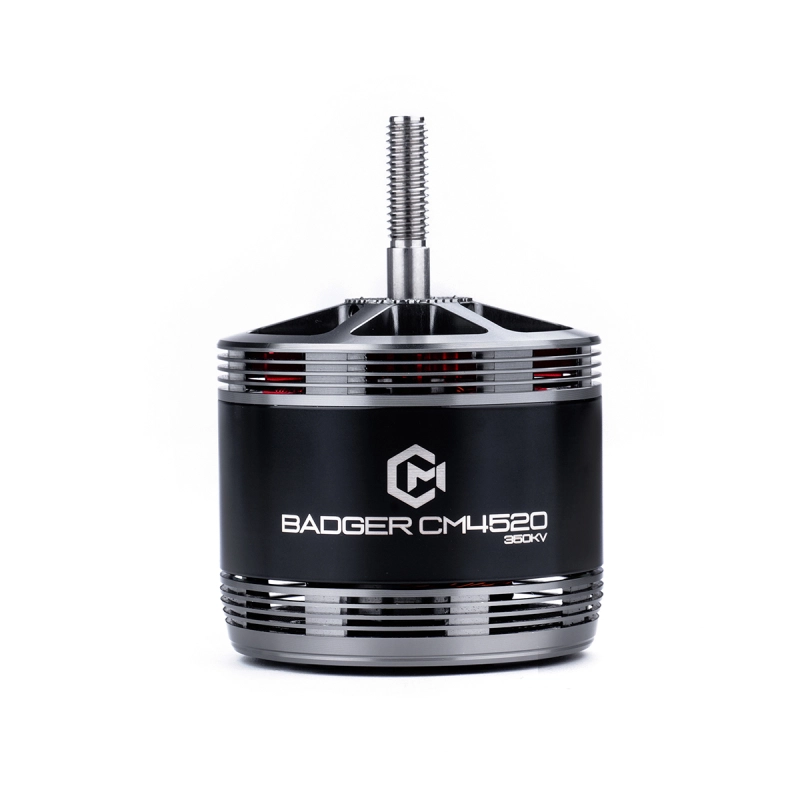

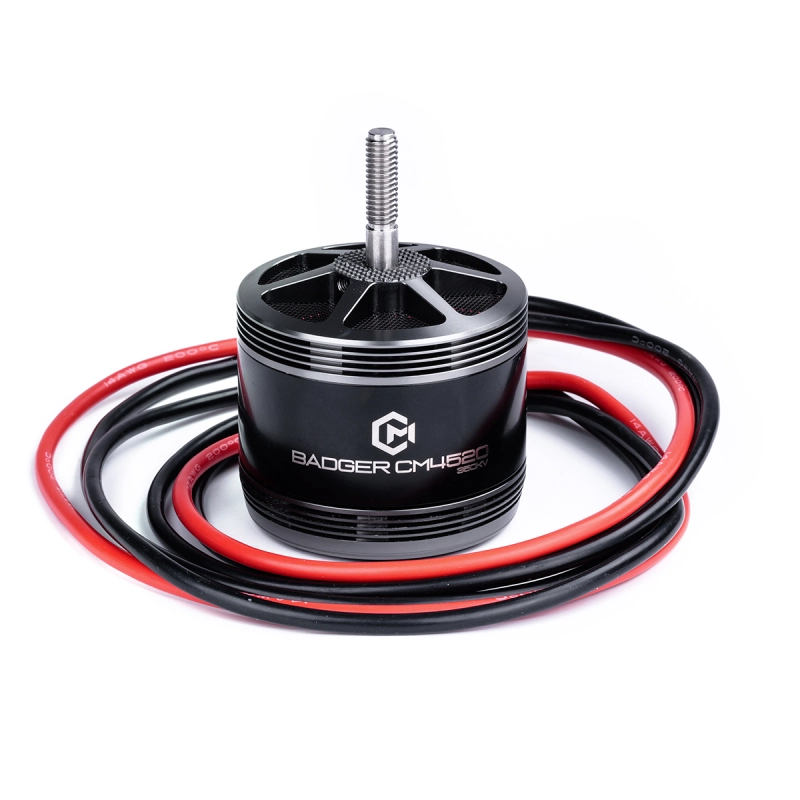

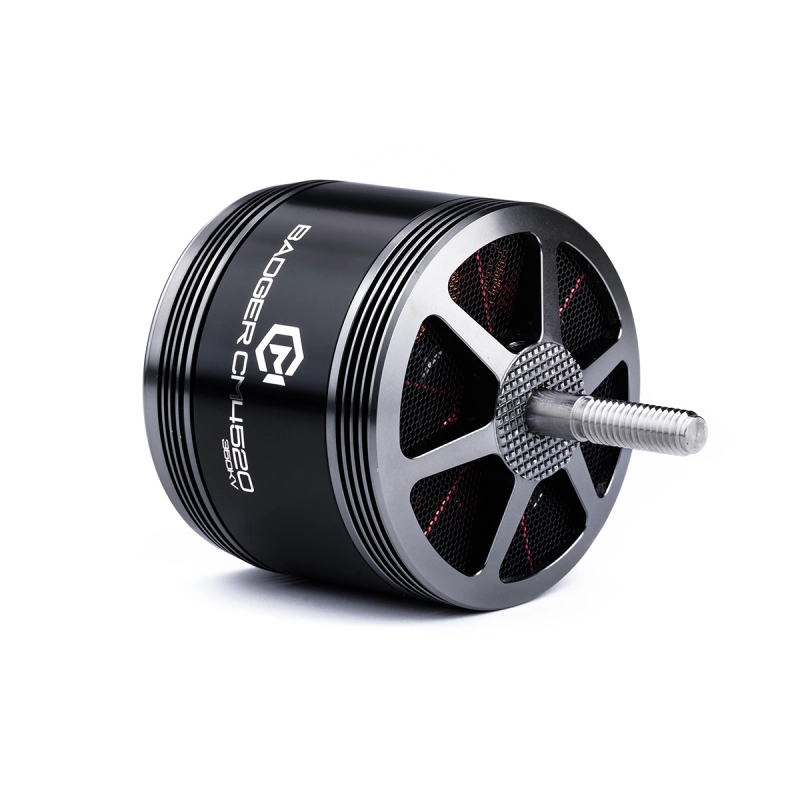

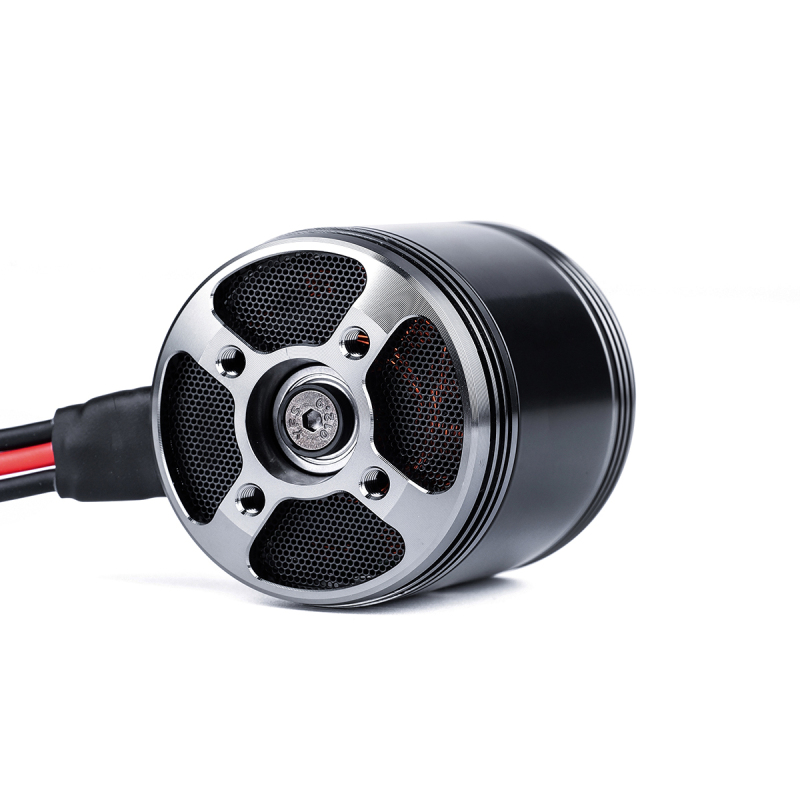

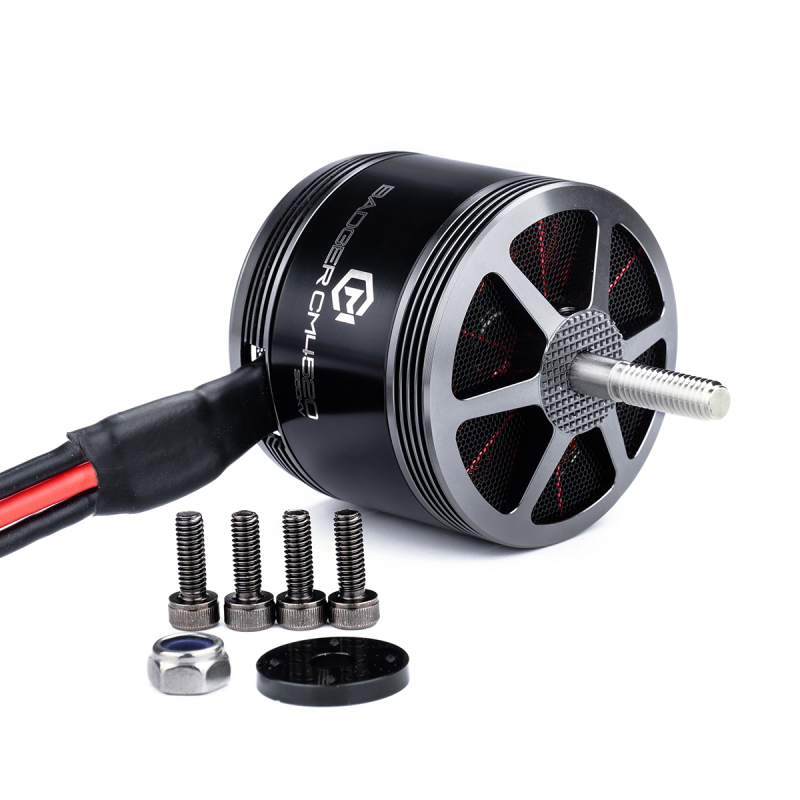

CM 4520 BADGER FPV Drone motor

Name: CM 4520 BADGER FPV Drone motor
Brand: MAD COMPONENTS
Price: 87 USD
Availability: InStock

The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.
1.Two ultra-thin stainless steel dust filters are added inside the stator.
2.The split exhaust blade is added inside the rotor.

$87.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
350KV

Motor Data
Motor Model	MAD BADGER CM4520 V1.0	Number of pole pairs	7
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:53 × 74.7 mm	Motor Balance	180°C
Propeller Mounting Holes	M6 Nut	Cable Length	750 mm 14# Awg silicone
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:30 M4×4
Bearing	606 ZZ *3	Disruptive test	500 V
