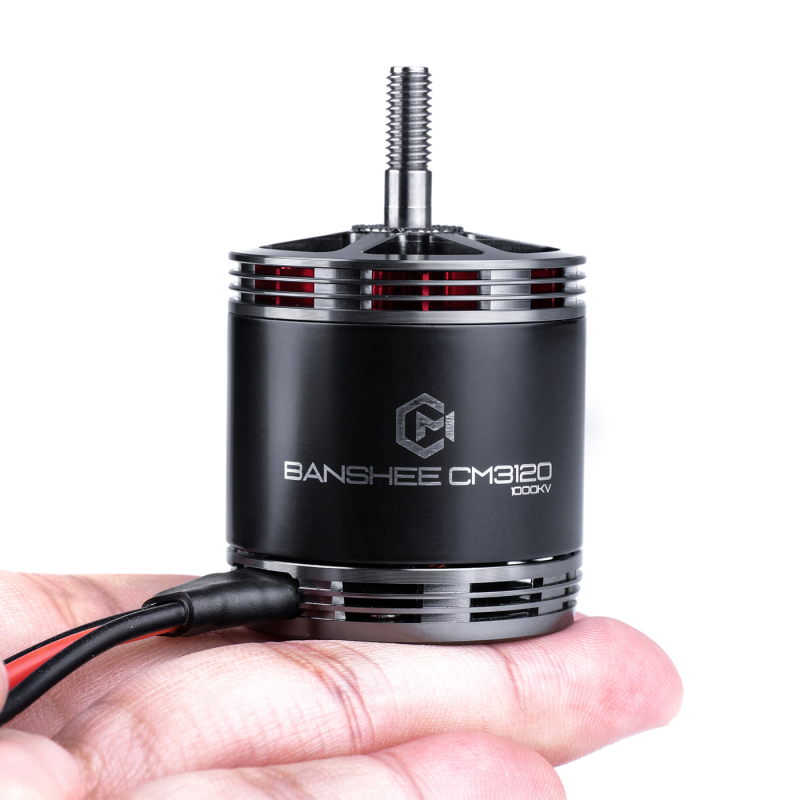

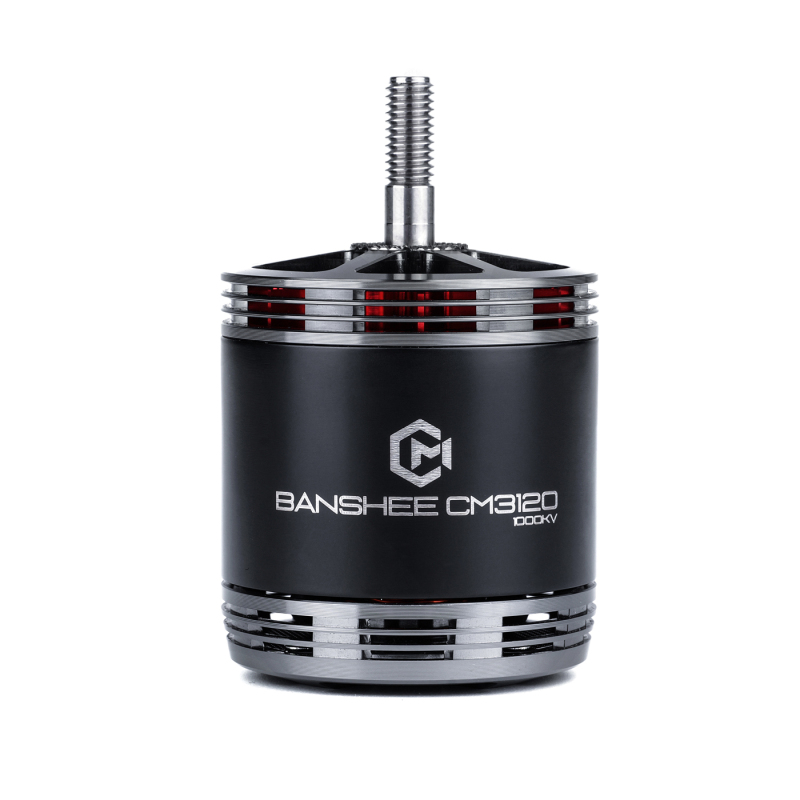

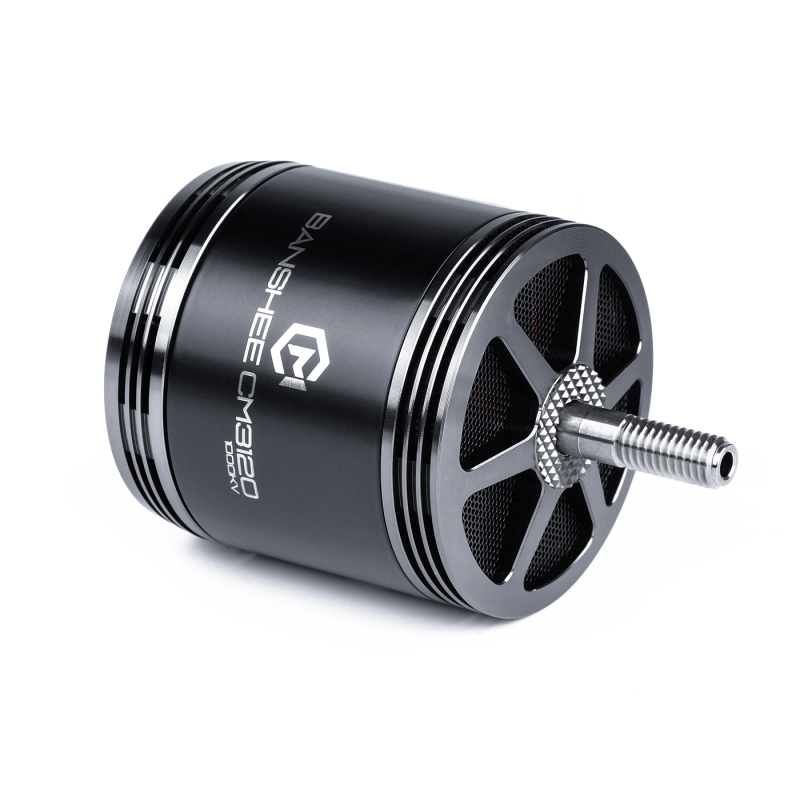

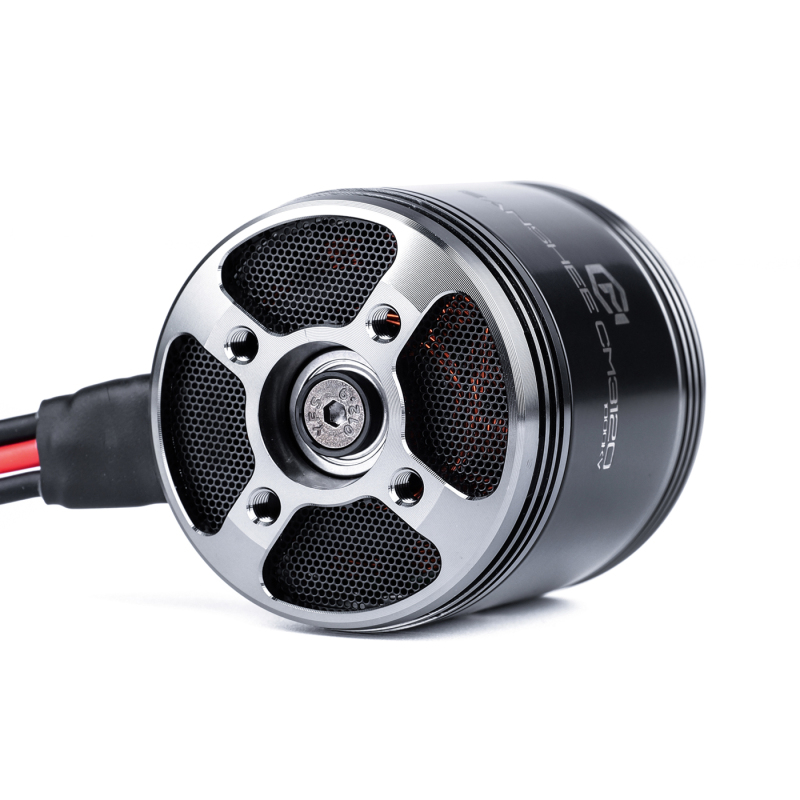

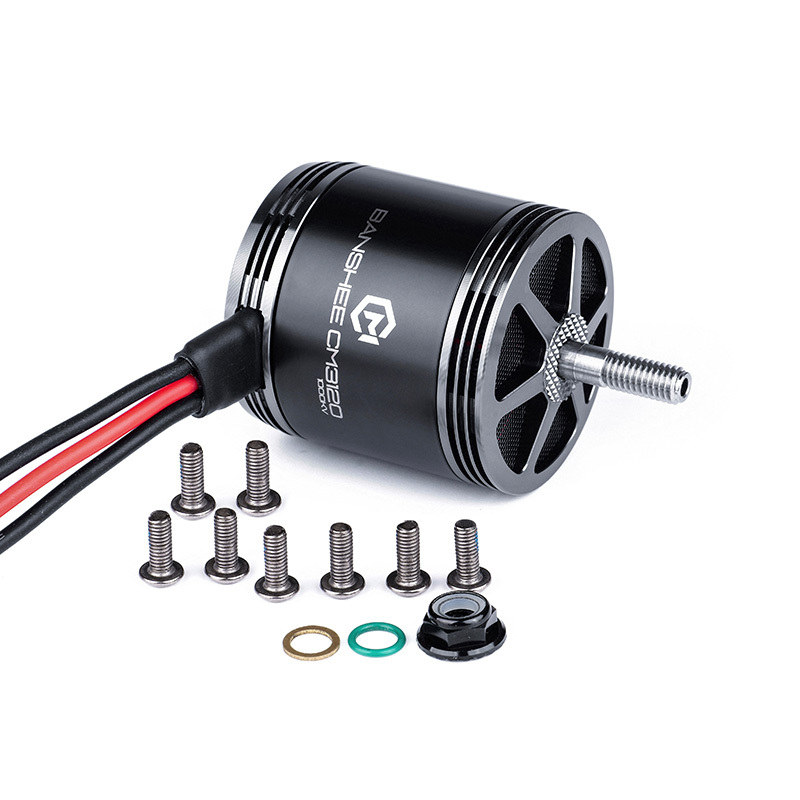

CM 3120 BANSHEE FPV Drone motor

SKU: 0101DJ1342
The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.
1.Two ultra-thin stainless steel dust filters are added inside the stator.
2.The split exhaust blade is added inside the rotor.
$0.00 $65.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV OPTION:
    500KV-12S
    700KV-8S
    1000KV-6S
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • MAD BANSHEE CM3120 Brushless motor for 10-11inch long range FPV drone/9-10inch X8 Cinelifter drone
  • MAD BANSHEE CM3120 Brushless motor for 10-11inch long range FPV drone/9-10inch X8 Cinelifter drone
  • MAD BANSHEE CM3120 Brushless motor for 10-11inch long range FPV drone/9-10inch X8 Cinelifter drone
  • MAD BANSHEE CM3120 Brushless motor for 10-11inch long range FPV drone/9-10inch X8 Cinelifter drone
  • MAD BANSHEE CM3120 Brushless motor for 10-11inch long range FPV drone/9-10inch X8 Cinelifter drone
  • Description

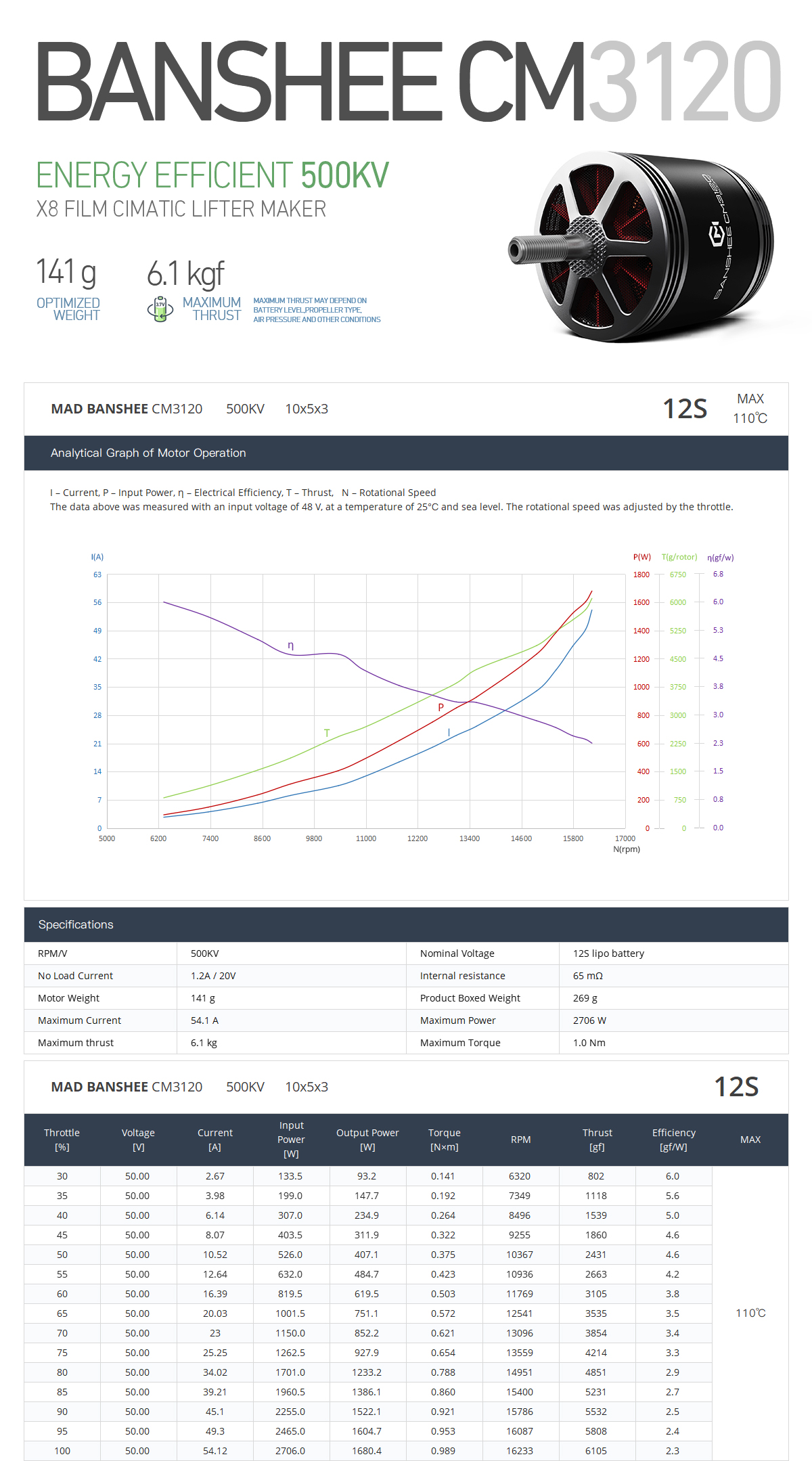

  • 500KV-12S
  • 700KV-8S

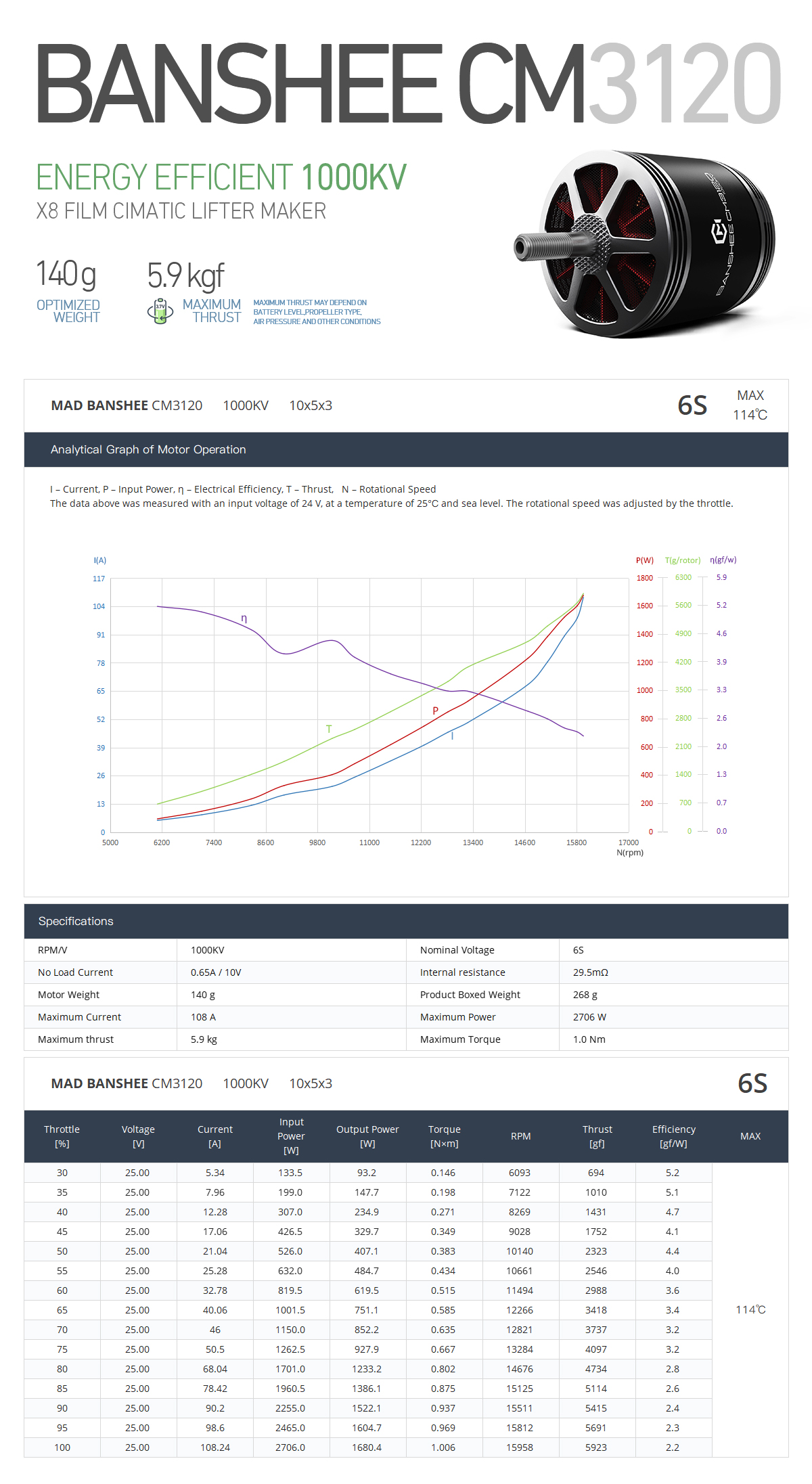

  • 1000KV-6S

Motor Data
Motor Model MAD BANSHEE CM3120 V1.0 Number of pole pairs 7
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:37.1 × 59 mm Motor Balance 150°C
Propeller Mounting Holes M5 Nut Cable Length 300 mm 18# Awg silicone
Shaft Diameter IN: 5 mm Motor Mounting Holes D:19 M3×4
Bearing 685*2 Disruptive test 500 V

_________________________________________________________________________________________________________________________________________

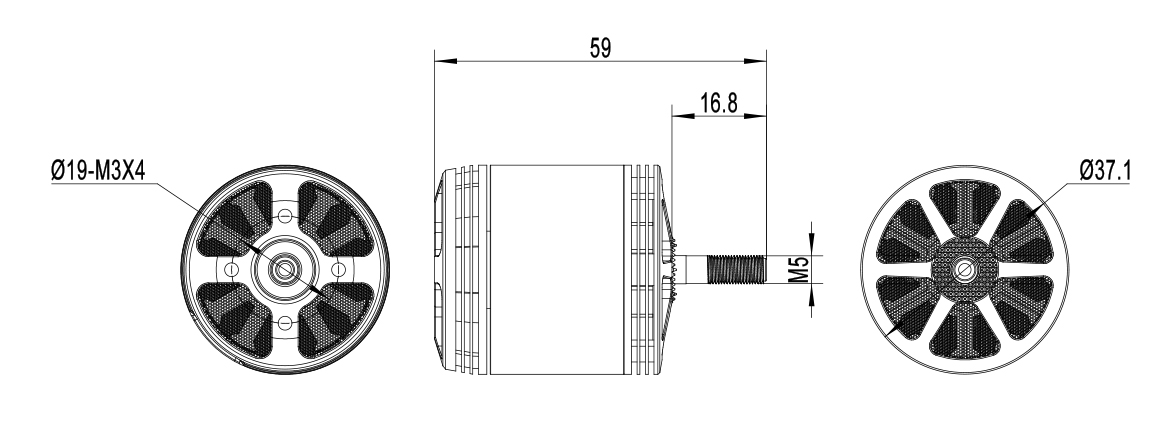

Drawing and mount holes
