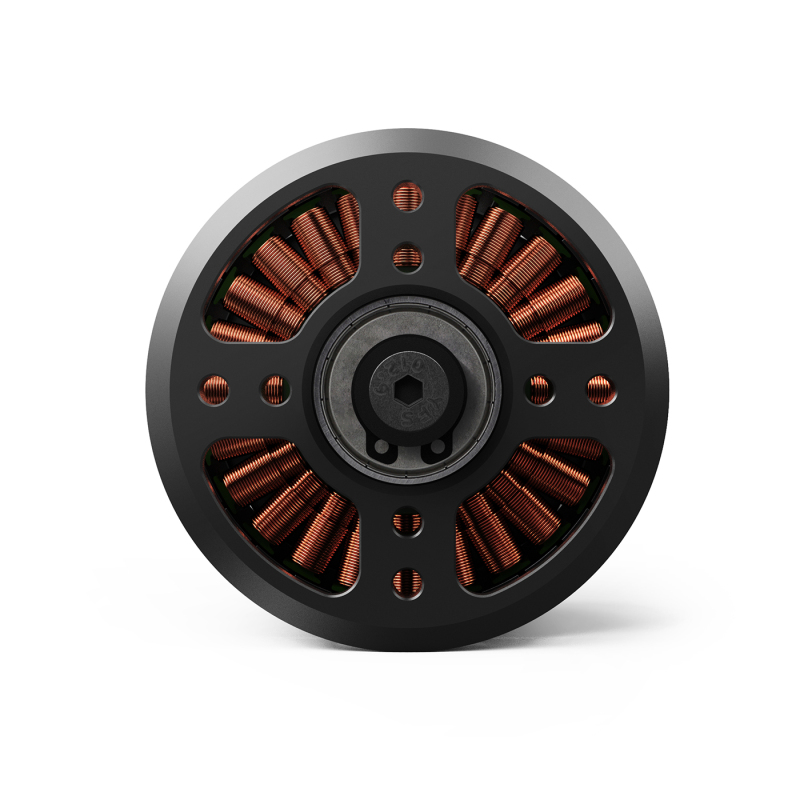

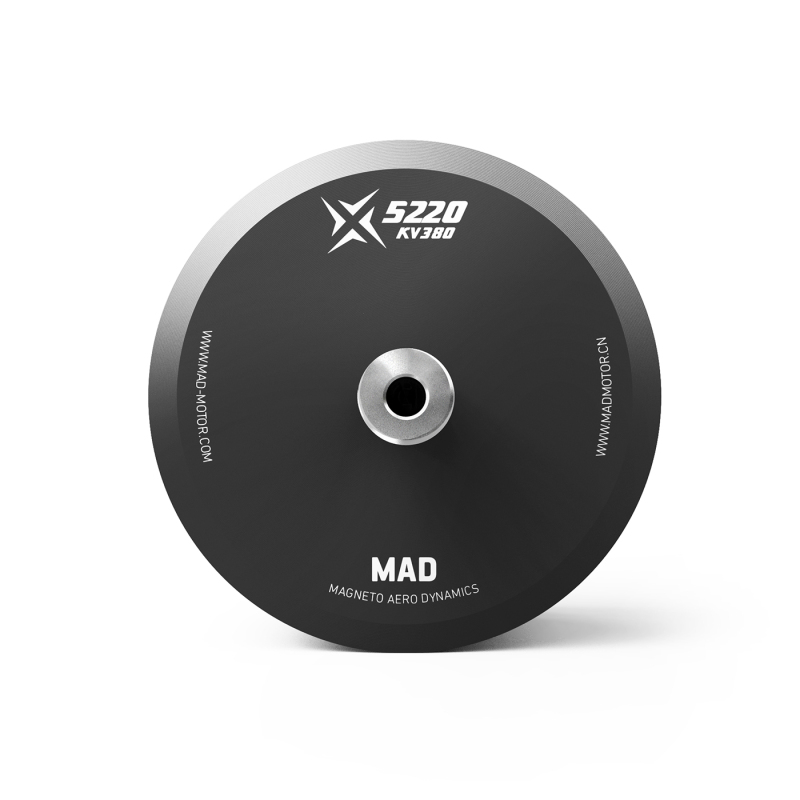

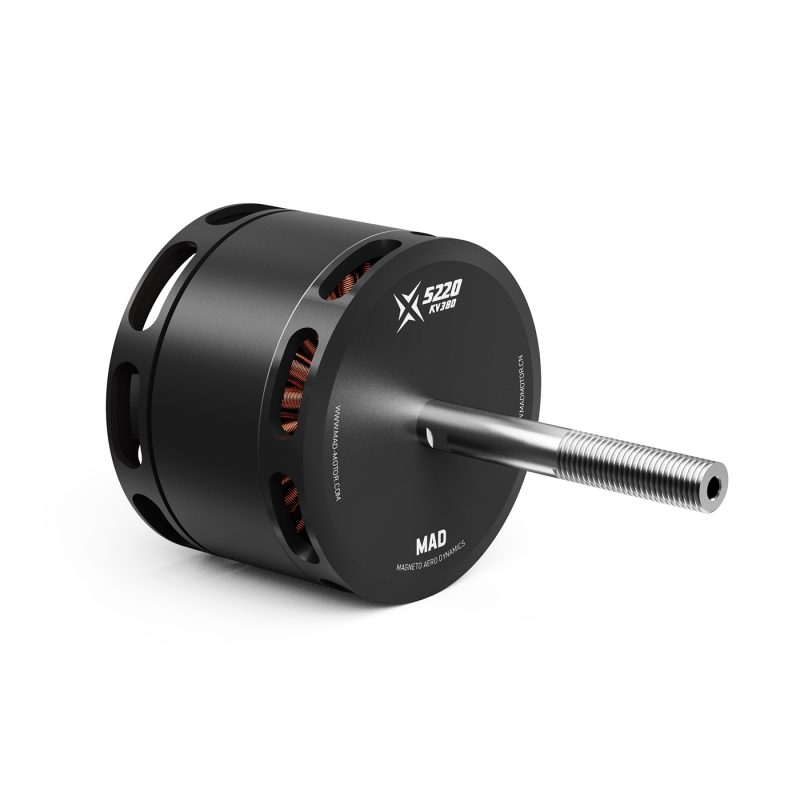

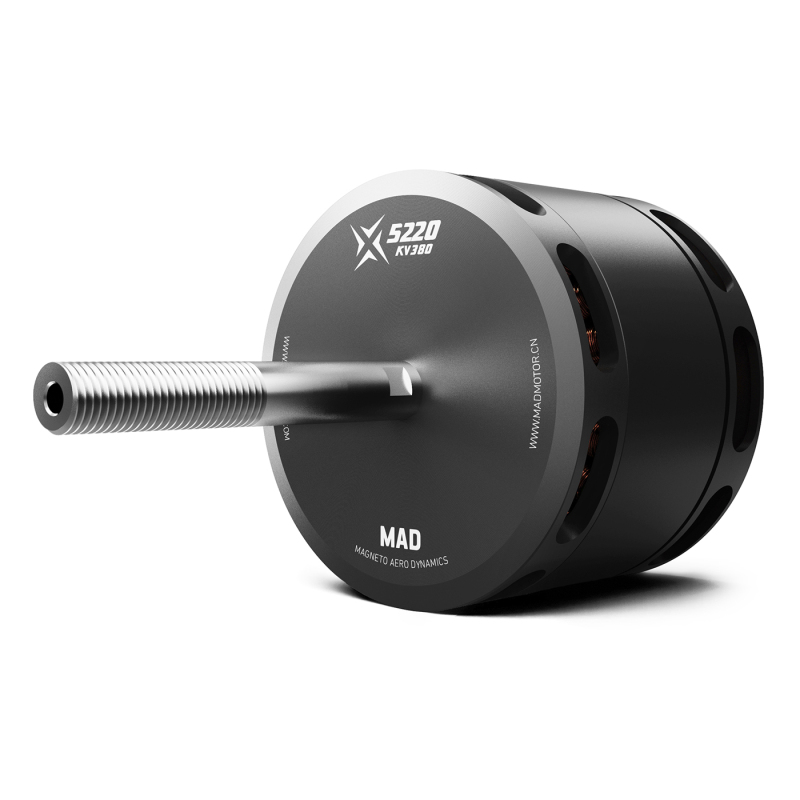

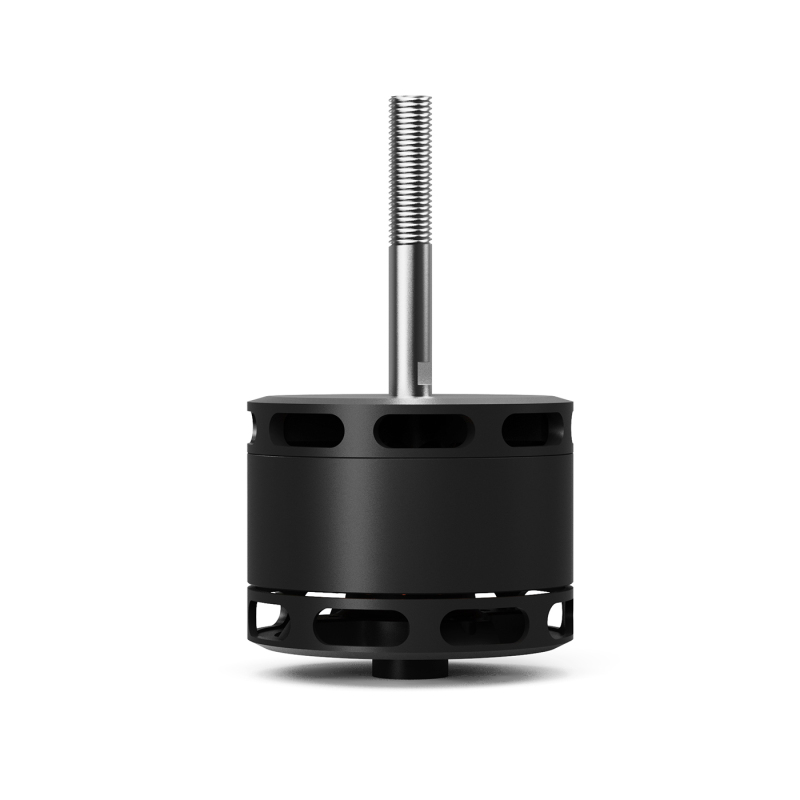

X5220 (long)IPE VTOL Airplane Drone Motor

SKU: 0101DJ1717
These are very high efficiency VTOL fixed wing engines. Designed for harsh conditions and endurance flying.
Optimised for best performance. Max thrust 12.1kg, more powerful and efficient than the same thrust motors on the market.
$0.00 $128.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV OPTION:
    220KV
    380KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD X5220 IPE brushless motor for fixed-wing airplane, VTOL UAV
  • MAD X5220 IPE brushless motor for fixed-wing airplane, VTOL UAV
  • MAD X5220 IPE brushless motor for fixed-wing airplane, VTOL UAV
  • MAD X5220 IPE brushless motor for fixed-wing airplane, VTOL UAV
  • MAD X5220 IPE brushless motor for fixed-wing airplane, VTOL UAV
  • Description
  • 220KV
  • 380KV

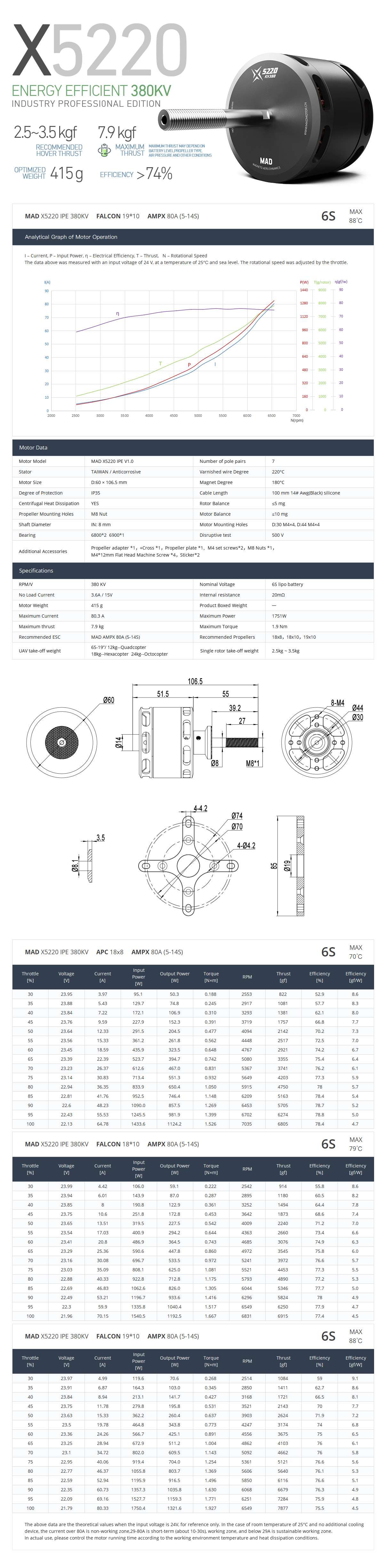

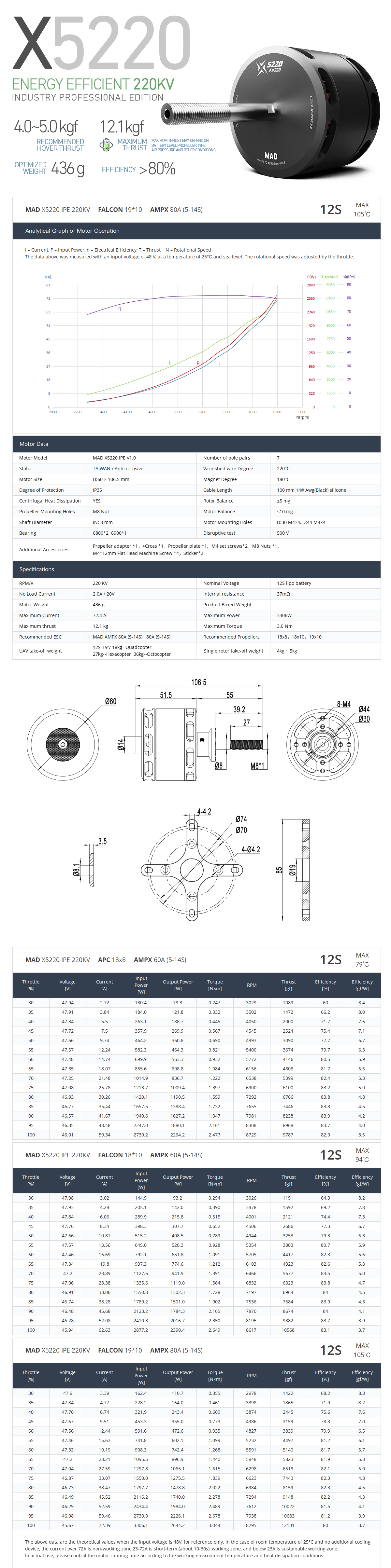

Specification


Motor Model
MAD X5220 IPE V1.0
Number of pole pairs
7
Stator
TAIWAN / Anticorrosive
Varnished wire Degree
220°C
Motor Size
D:60 × 106.5 mm
Magnet Degree
180°C
Degree of Protection
IP35 Cable Length
100 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation
YES Rotor Balance
≤5 mg
Propeller Mounting Holes
M8 Nut
Motor Balance
≤10 mg
Shaft Diameter
IN: 8 mm
Motor Mounting Holes
D:30 M4×4, D:44 M4×4
Bearing 6800*2  6900*1
Disruptive test
500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
