1/3" SONY CMOS 1200TVL 1080P AHD HD 10x Optical ICR CCTV

$99.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Sensor Size:

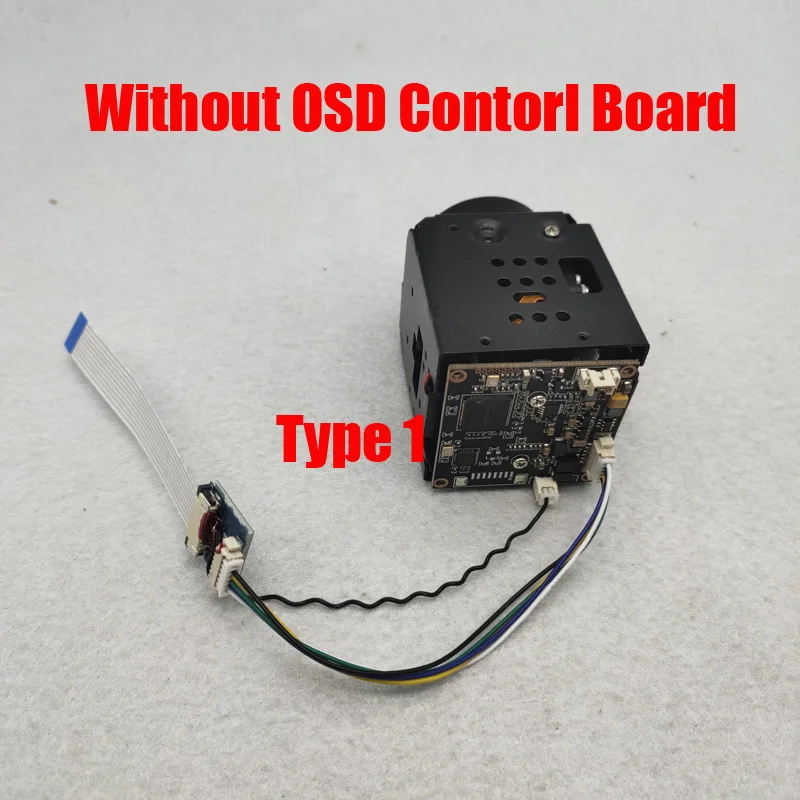

Type1(Without OSD Control Board)

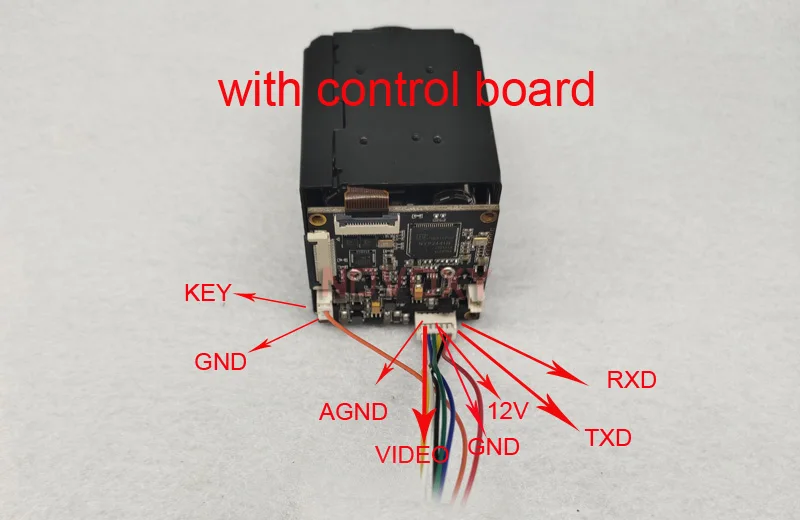

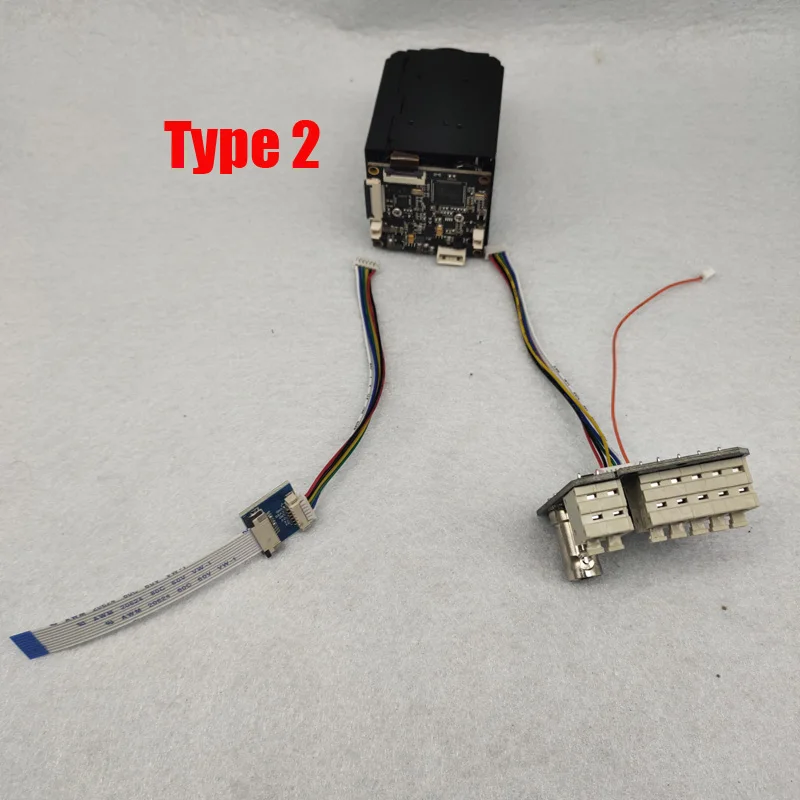

Type2(with control board)
Signal System:

PAL

NTSC
Focus:

18x Zoom

Quantity

Add to Favorites (0)

1/1

Description

Features：

High Resolution：This camera use a high performance megapixel CCD or CMOS,which provides high resolution,clear, noiseless and reliable image; Effective pixels can reach 700TVL,800TVL,1000TVL and 1.3/2megapixel.18x/22X/30x/36X Optional;
OSD Menu/Line control/RS-485 Control：Remote control operations are possible through RS-485 signal interface, also can control the lens by external control line.
Day/Night：Camera will auto switch to color at daytime and B/W at night according to the environment illumination to ensure a high sensitivity and clear image.
Auto Focus：Camera can auto focus from 0.1m to limitless distance.
Built-in IR Color Filter：Built-in IR color filter which can fully enhance the day & night.
Safety Instruction:
Avoid using the camera in extreme temperature, the operating temperature shall be-10℃~+50℃ and keep ventilated;
Avoid using the camera in high humidity environments or it may cause a bad image;
Avoid using the camera in unsteady lighting.I ne camera will not work properly in places with great changes in illumination intensity;
Avoid using the camera in the presence of oil and gas.Ihe camera wiII be damaged if oil or gas penetrates the exterior;
Do not disassemble the camera; If necessary, please disassemble it under the instruction of maintenance man;
Camera may be damaged if dropped or subjected to strong impact;
Avoid exposing the camera in the rain or liquid. Please dry it immediately when it gets wet. The minerals in the liquid would corrode the camera;
Avoid touching the lens and CMOS which is the most important parts of the camera. Keep the fingerprint and bolt away from the lens.
-Smear or blooming(when bright areas spreads out)may occur when photographing in strong light. i.e.car headlights,etc.
- Make sure that you are using a compatible power adapter before connecting it to the camera.

Back Bord

①TELE: Zoom near
②WIDE: Zoom far
③FAR: Focus far
④NEAR:Focus near
⑤MENU ON/OFF
⑥VIDEO Output
⑦Instruction of line control and RS485 control
⑧DC12v-Power Input
⑨PL-Power state LED

Control interface:

without control board:

Z - ZOOM
F - FOCUS
C - COM
A - RS185+
b - RS485-

Installation
Connection to DVR

Connect the video output iack on the back of the product to the DVR.

*The method of connecting the camera to a DVR varies depending on the cable model. Pleaserefer to the instruction of the physical cable.
*Please powered off before connecting.

Connecting Power line and control line

DC power pack output and camera power supply input connecting as follow:
ATTENTION
Please take the attention on pole before connect power supply. Pease Tinish any other settingbefore connect power supply.
DC adapter is needed to buy in addition.

Menu KeyHow to operate

1.Press the MENU, the OSD menu will show on the screen of the monitor;
2.Switch the FAR and NEAR to change the status and parameter which you choose;3.Press the MENU to exit the menu;

How to switch the different signal:

Step 1: Press "MENU" button to enter into menu and select "NEXT" as shown below,press "MENU" button enter into submenu.

Step 2: select "EXPOSURE", Press right botton(NEAR) 3 times and press the "MENU"button to enter the HIDDEN menu

Step 3: Enter the HIDDEN menu, then you can press left or right botton to select different signal output , (CHD is CVI, THD is TVI)

Step 4: After select the signal output, press "MENU" botton , then select the " APPLY" and press "MENU" botton to save the setting

Step 5: Exit and save it, it will be success to siwtch different signal output
