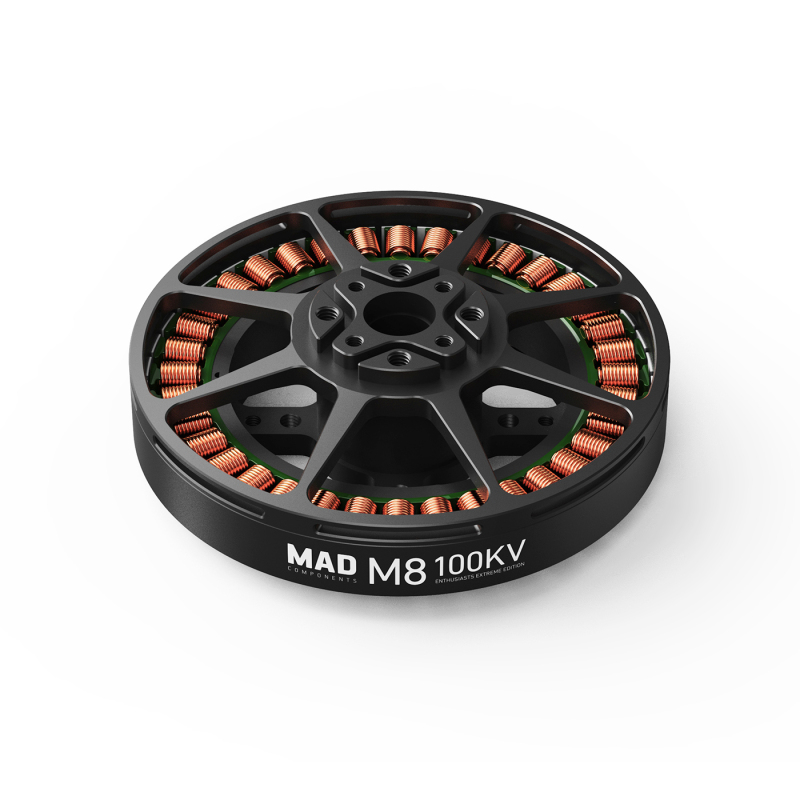

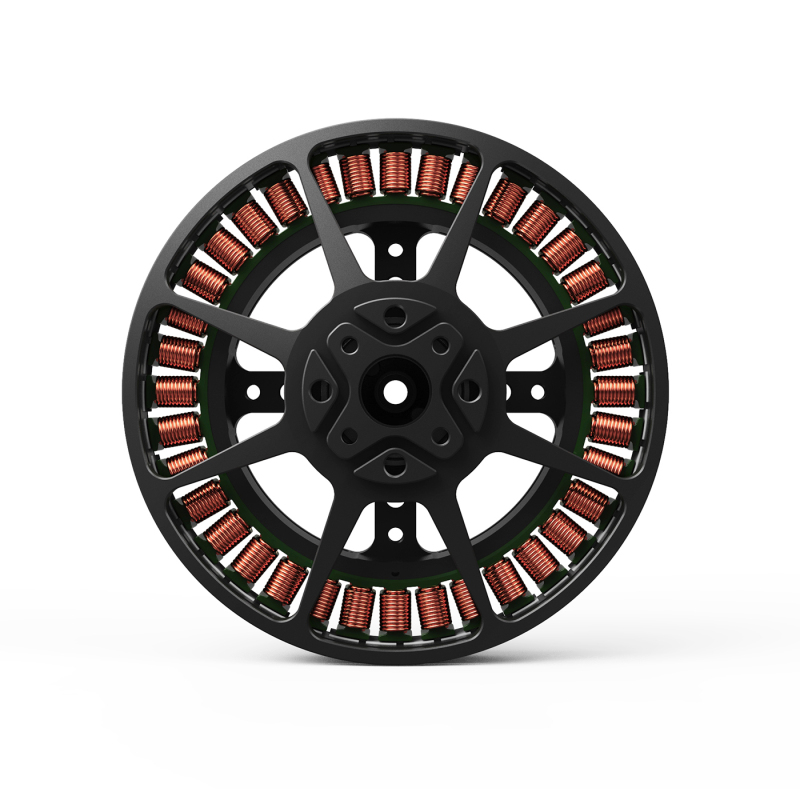

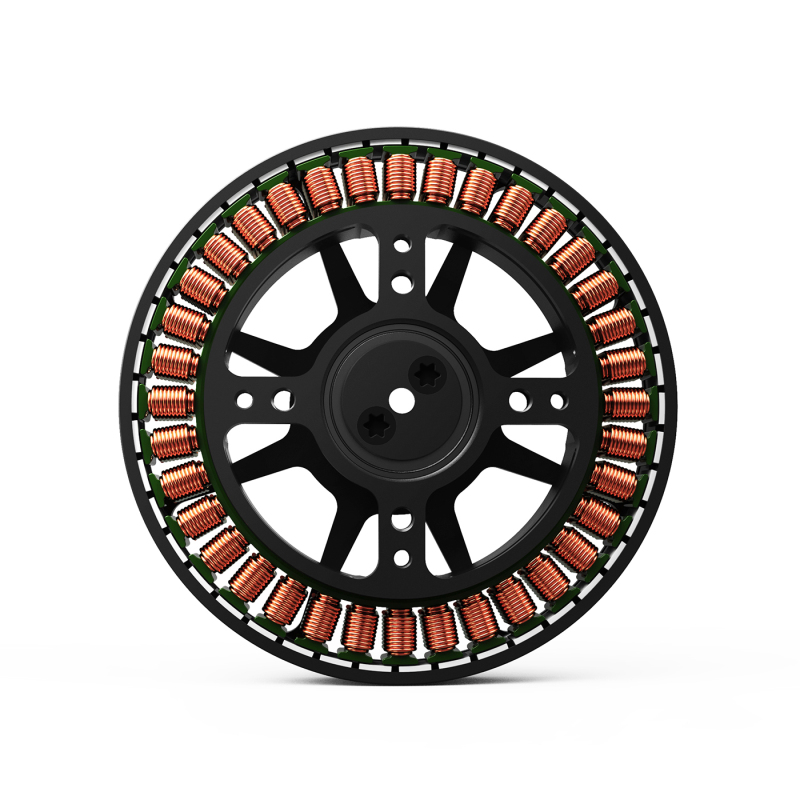

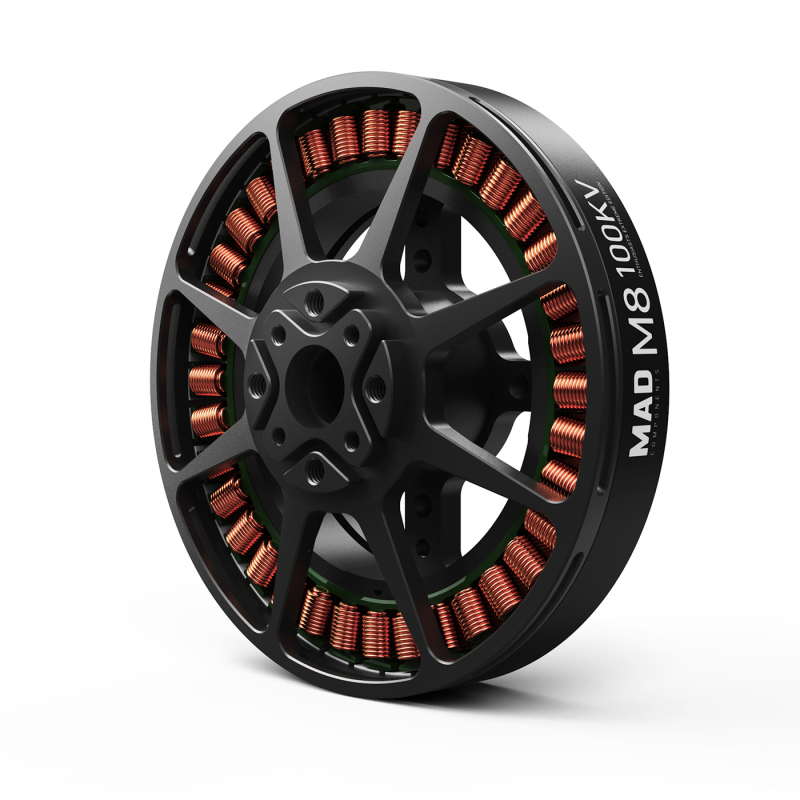

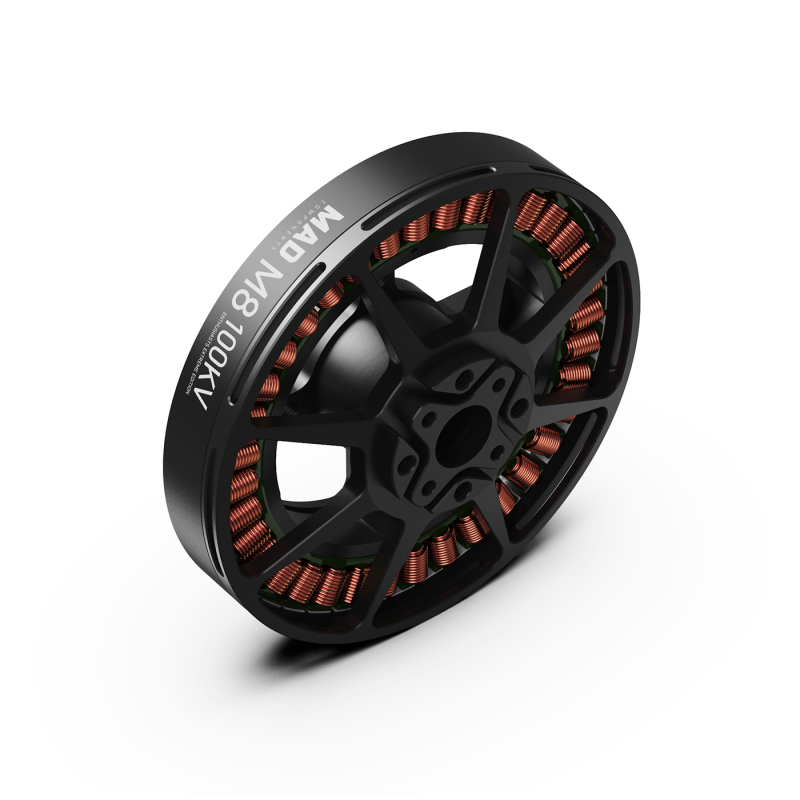

M8C08 EEE V3 brushless drone motor

SKU: 0101DJ0538
8108 motor is the most classic product among UAV motors. MAD M8 is one of the most efficient motors among them and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120min.
M8 EEE V3 is the latest version of MAD 8108 EEE, more efficient and lighter, great for endurance flight.
$0.00 $269.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    85KV
    100KV
    110KV
    150KV
    180KV
    Please select the information you wantX
Quantity
-
+
Add to Favorites (1)
  • MAD M8C08 EEE V3 brushless drone motor for the long flight time multirotor hexacopter octopter
  • MAD M8C08 EEE V3 brushless drone motor for the long flight time multirotor hexacopter octopter
  • MAD M8C08 EEE V3 brushless drone motor for the long flight time multirotor hexacopter octopter
  • MAD M8C08 EEE V3 brushless drone motor for the long flight time multirotor hexacopter octopter
  • MAD M8C08 EEE V3 brushless drone motor for the long flight time multirotor hexacopter octopter
  • Description
  • 85KV

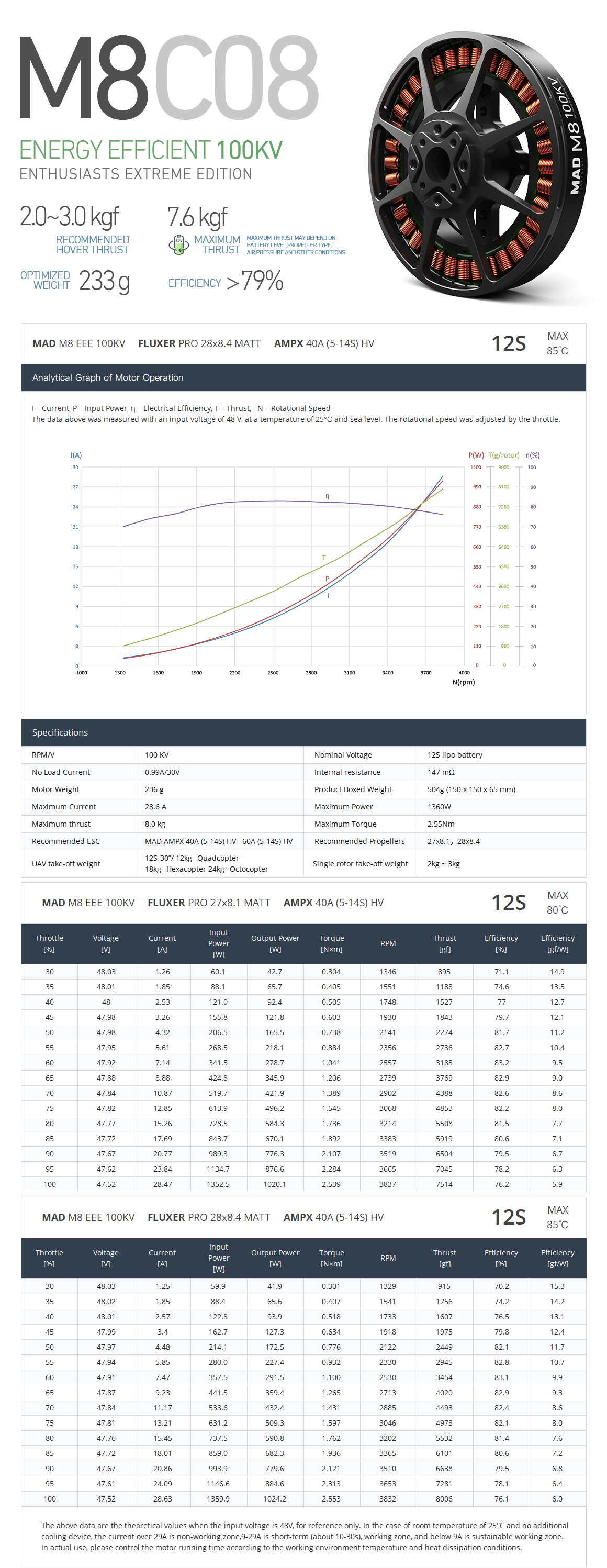

  • 100KV

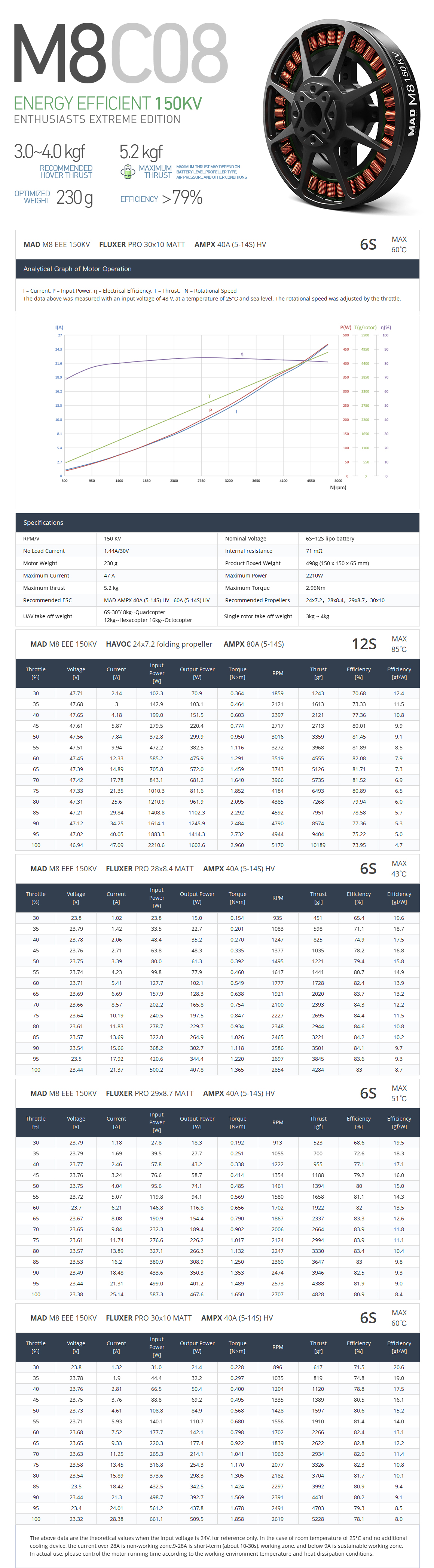

  • 150KV
  • 180KV

Motor Data
Motor Model MAD M8C08 EEE V2.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:87.1 × 26.7 mm Motor Balance 150°C
Degree of Protection Rain protection Cable Length 80 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4, D:23 M4×4 Motor Balance ≤10 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:36 M4×4,  D:48 M3×4
Bearing 6802ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

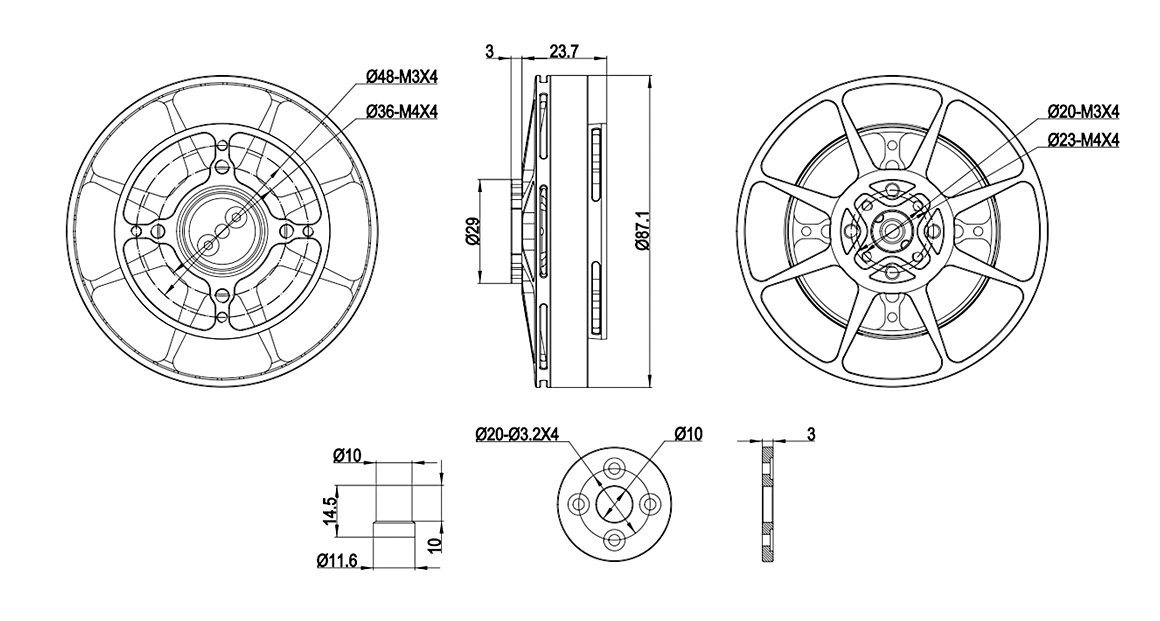

Drawing and mount holes
