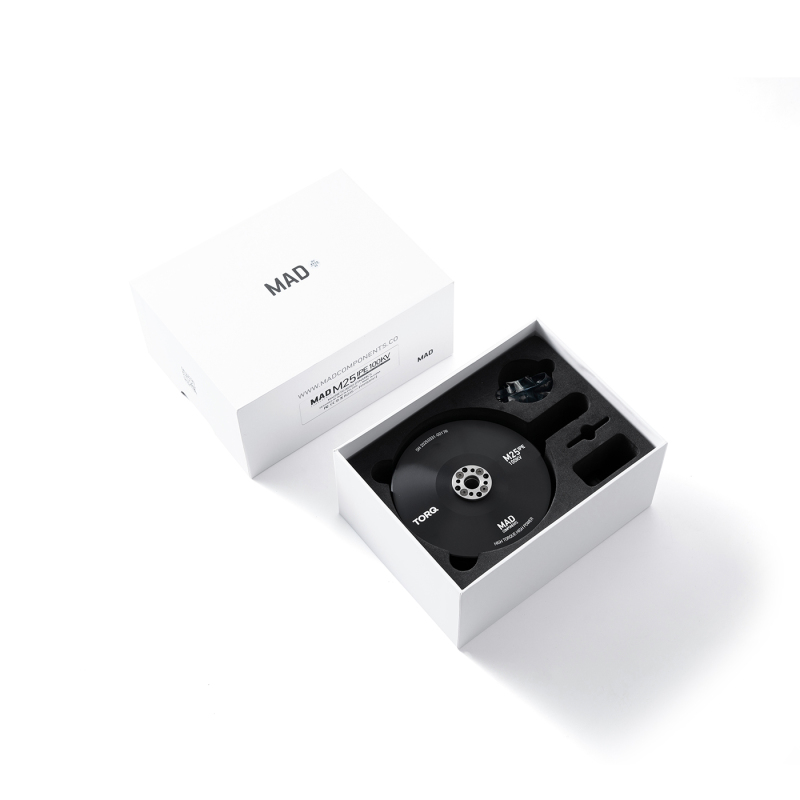

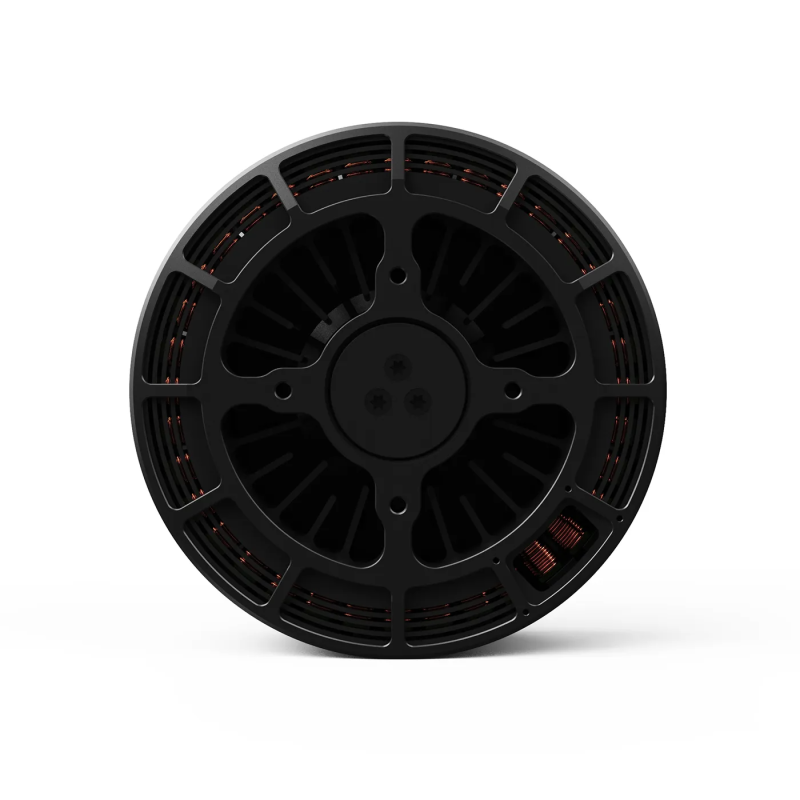

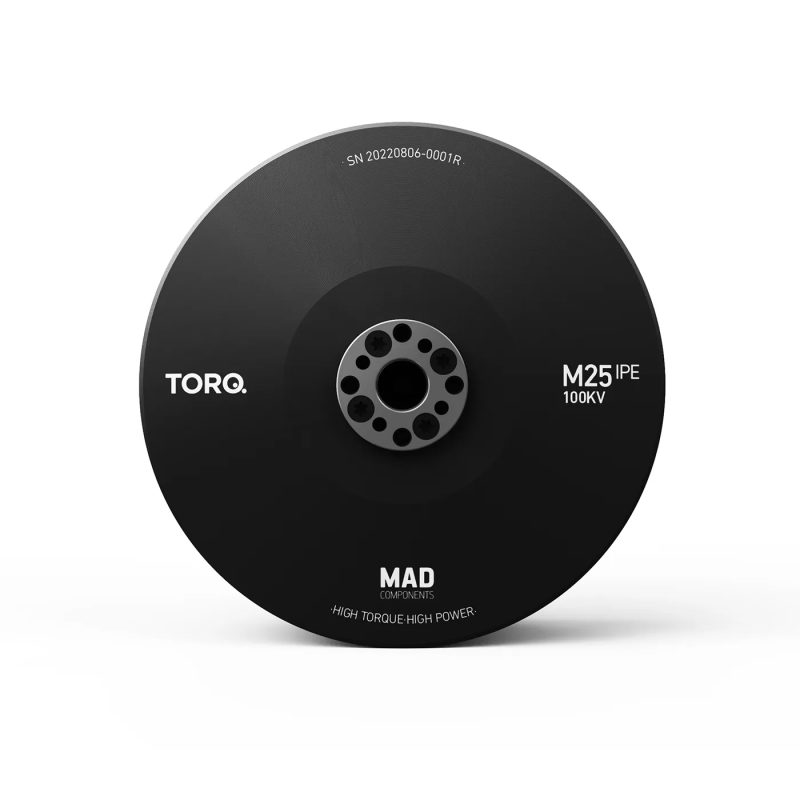

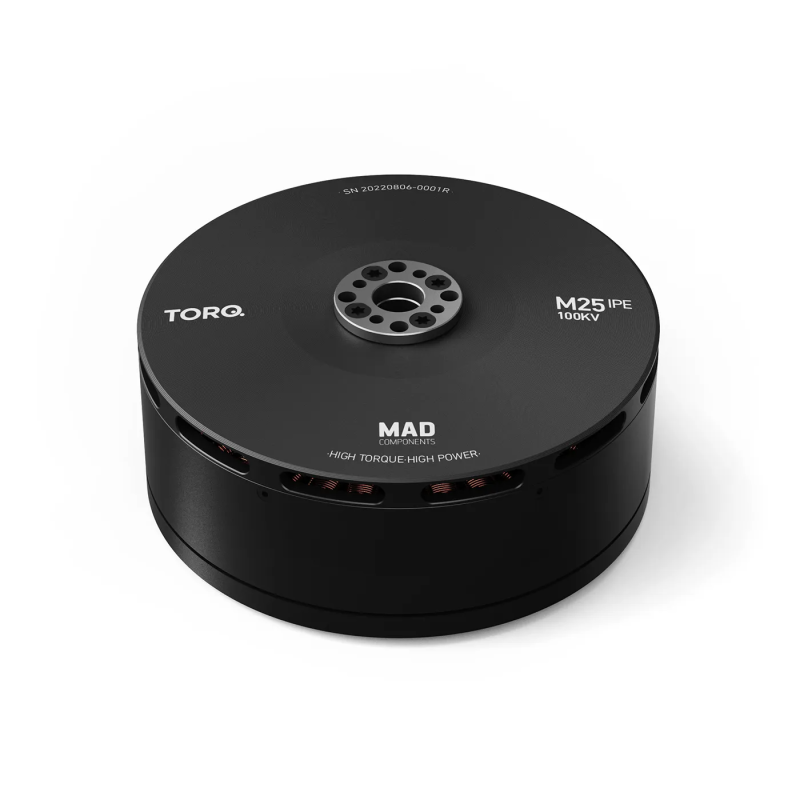

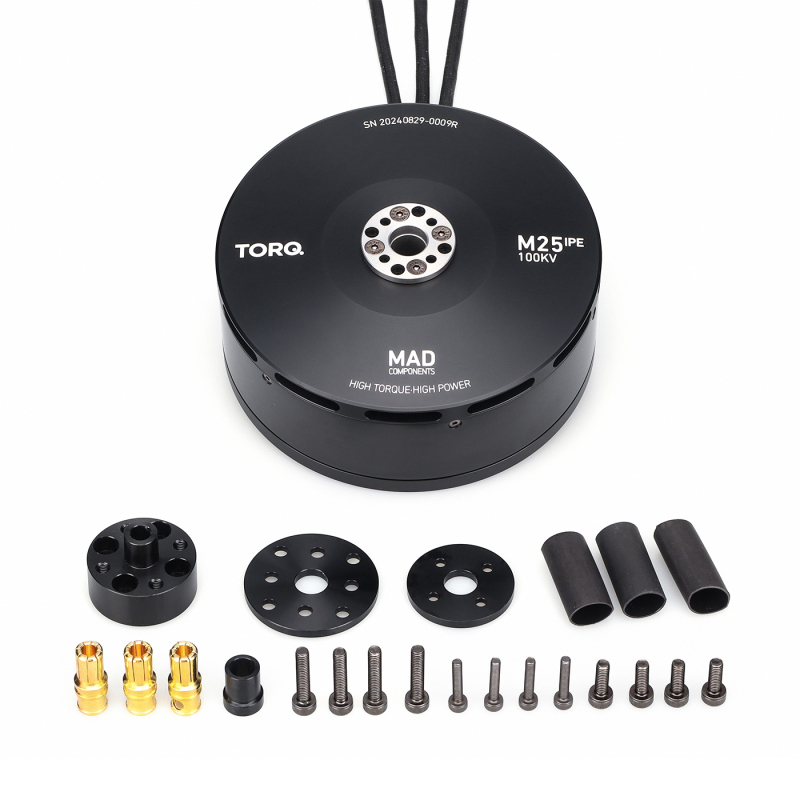

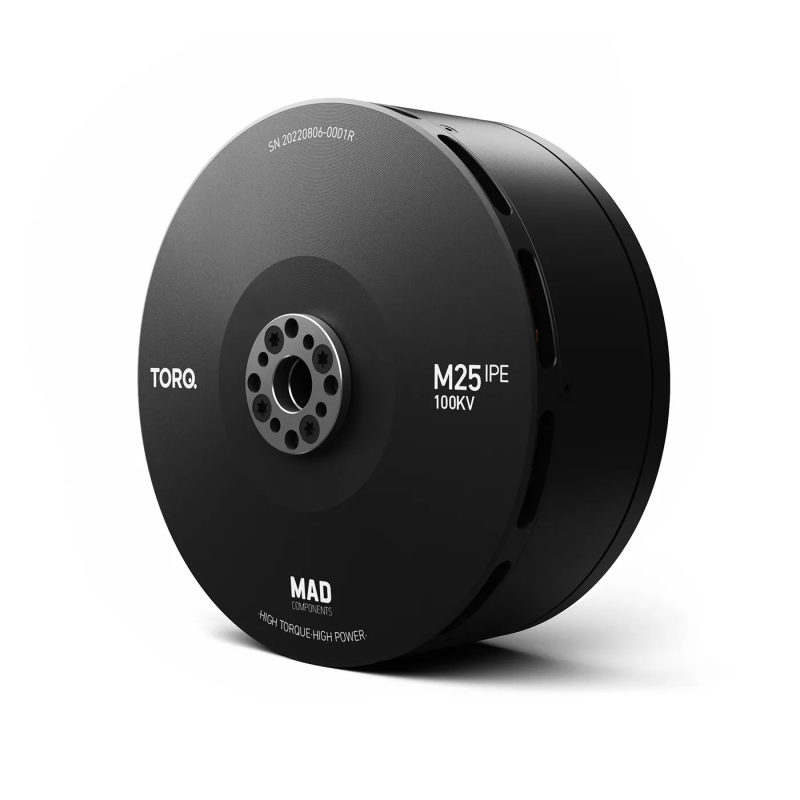

M25 IPE Manned Drone Motor
SKU: 0101DJ0767
| Sustained thrust: | 10~15kg |
| Max thrust: | 39.4kg |
| Support voltage: | 12S |
| Weight: | 1280g |
$509.00
| Sustained thrust: | 10~15kg |
| Max thrust: | 39.4kg |
| Support voltage: | 12S |
| Weight: | 1280g |
Positioning:
• High-thrust motor engineered for manned or ultra-heavy UAV platforms
• Ideal for applications requiring maximum lift with optimal weight efficiency
Key Features:
✔ Peak thrust: 40 kgf | Rated thrust: 10–15 kgf
✔ Ultra-lightweight for its class: 1.28 kg
✔ Compatible with FLUXER 40x13.1 D10-D24(M4X4) Inch carbon fiber propeller
✔ Recommended ESC: AMPX 200A(5-14S) Drone ESC or FOC 200A 8-14S Drone ESC
✔ Maximized thrust-to-weight ratio for manned drone propulsion
Perfect for:
• Manned aerial vehicles and large-scale UAVs
• Drones used in rescue, logistics, or endurance missions requiring extreme power
• Builders prioritizing high output, ESC compatibility, and propeller flexibility

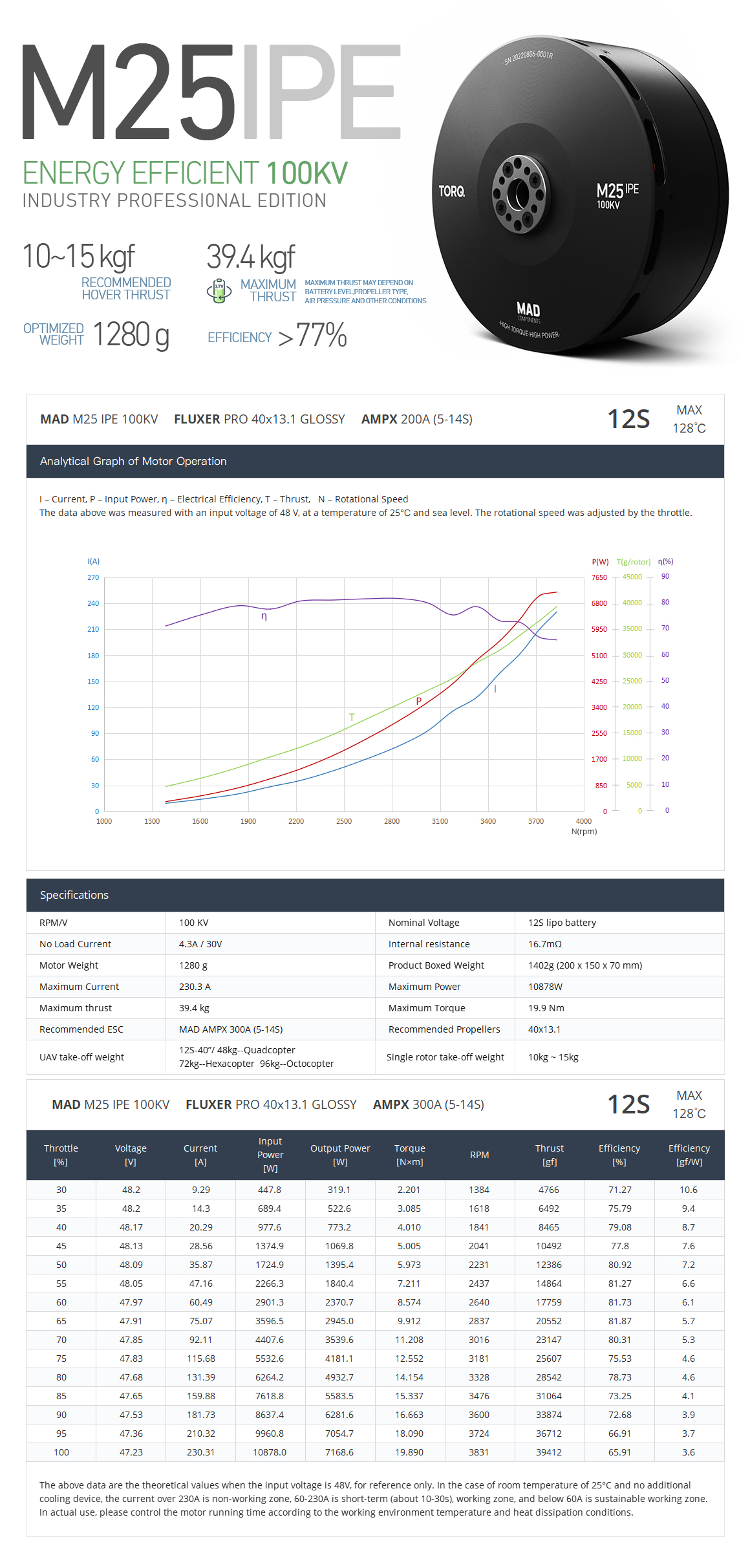

Motor Data |
|||
| Motor Model | MAD M25 IPE V1.0 | Number of pole pairs | 15 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:118 × 52.9 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3x4,D:23 D4x4, D:24 M4×4 (with adapter) |
Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:50 M4×4 |
| Bearing | 6902ZZ*2 | Disruptive test | 500 V |
