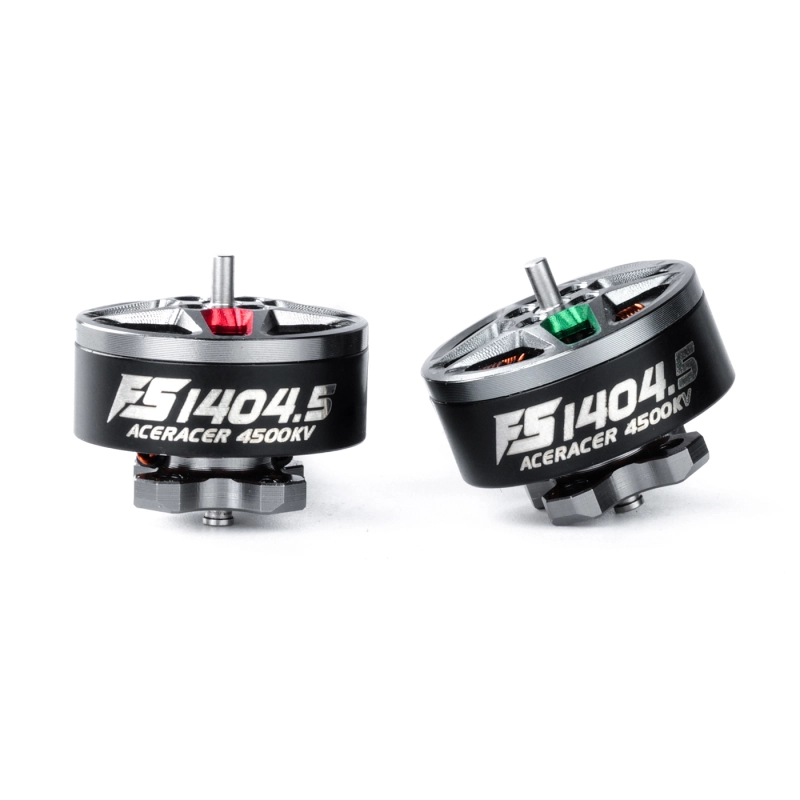

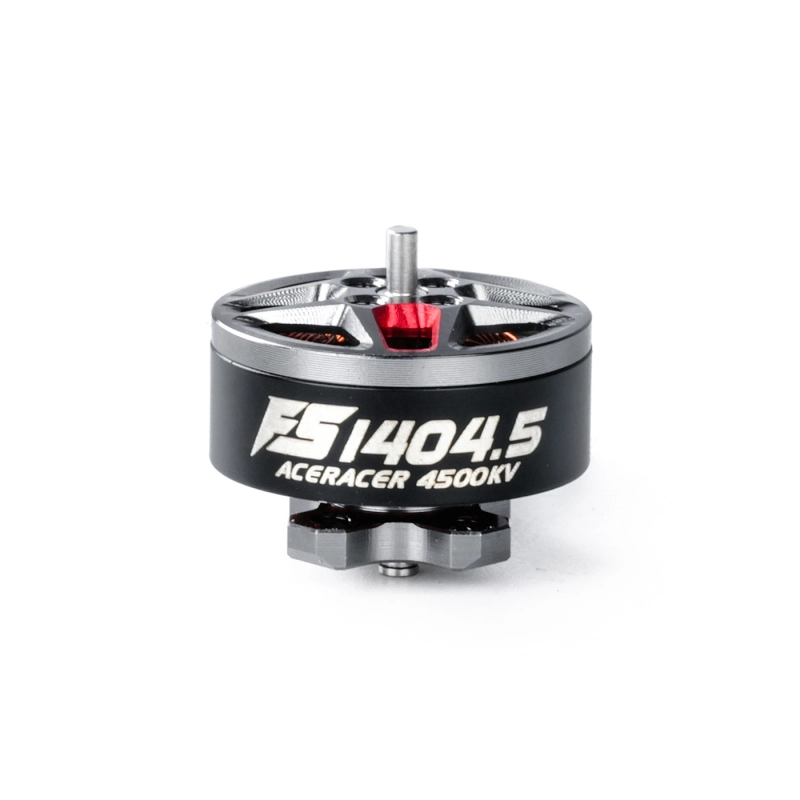

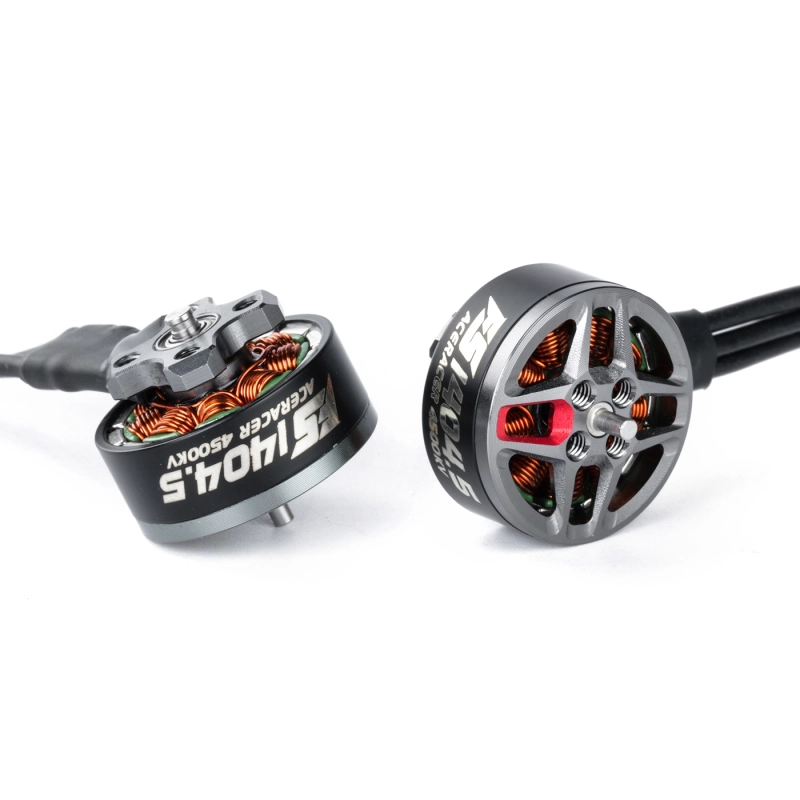

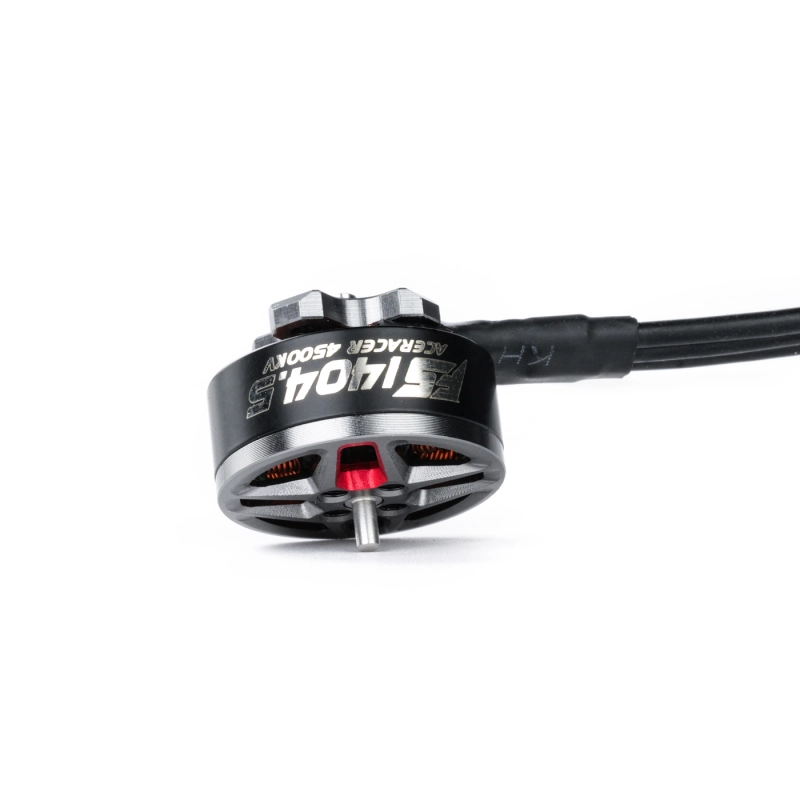

FS 1404.5 AceRacer FPV Drone Motor

SKU:
The FS series of MAD FPV brushless motors is specifically designed for freestyle flying. The development process involved six months of rigorous testing, resulting in refined aesthetics and improved functionality.
The main difference between the FS and BSC series is the lightweight titanium shaft and the 0.15mm silicon steel sheet, which increases efficiency. Additionally, the product has an aesthetically pleasing appearance due to secondary anodizing.
$0.00 $7.50
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV OPTION:

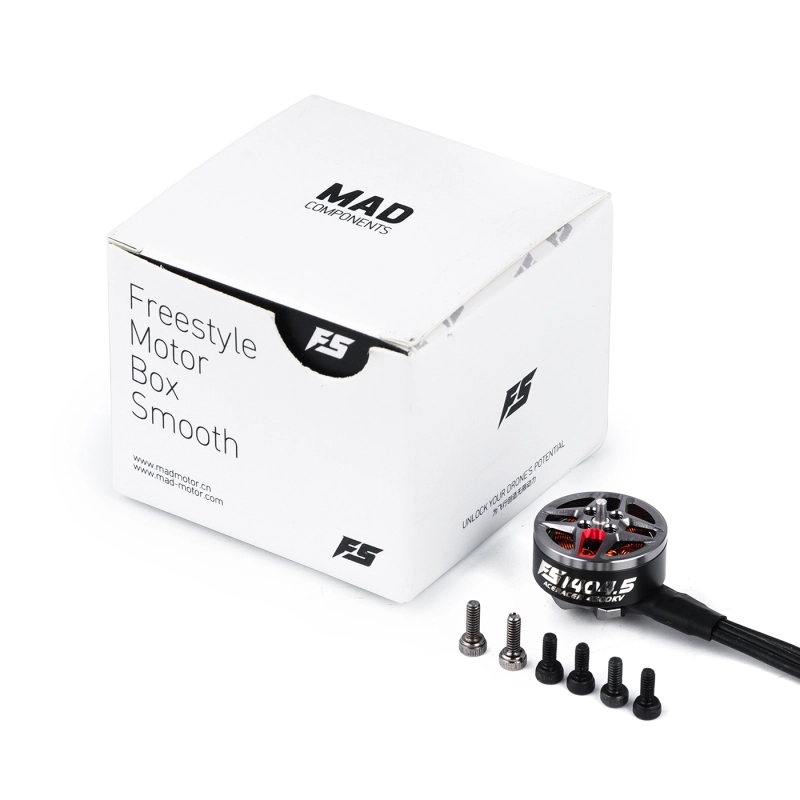

    Rotors + locking shaft screw + O ring + Gaskets
    4500KV
  • Color:
    Red
    Green
    Please select the information you wantX
Quantity
-
+
Download
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1404.5  AceRacer FPV Drone Motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1404.5  AceRacer FPV Drone Motor
1/1
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1303.5  MYTHIC  FPV Drone motor
  • FS 1404.5  AceRacer FPV Drone Motor
  • Description
  • 4500KV

Motor Data


Motor Model
MAD AceRacer FS1404.5 V1.0
Motor Number of slots
9N12P
Motor Size
D:18.1 × 16.8 mm
Rotor Balance
≤3 mg
Propeller Mounting Holes
D:5 M2X4
Motor Balance
D:9 M2×4
Shaft Diameter
IN: 1.5 mm Cable Length
130 mm 24# Awg(Black) silicone

___________________________________________________________________________________________________________________________


Drawing and mount holes
