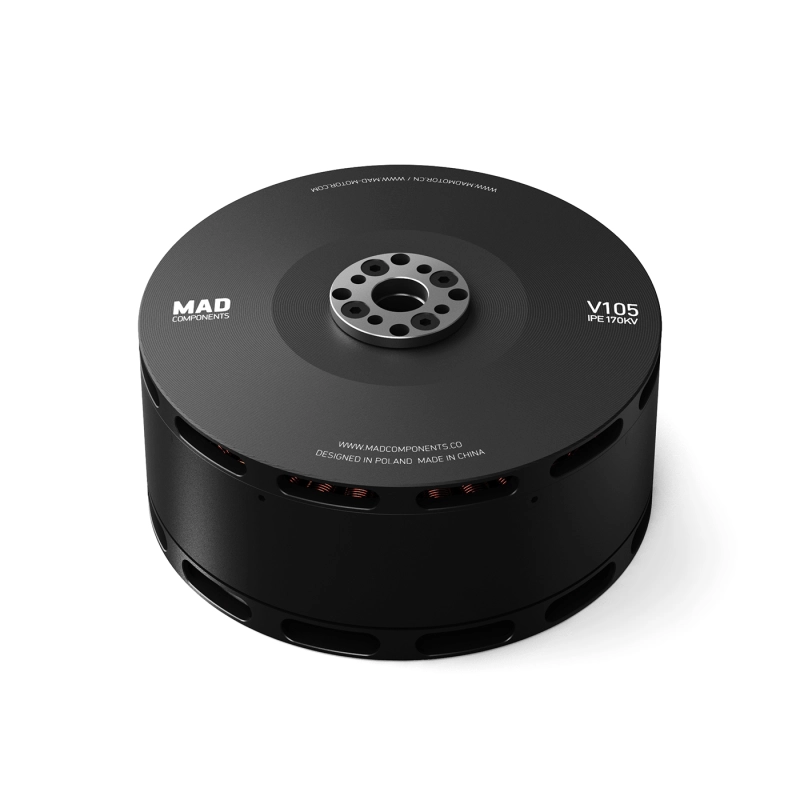

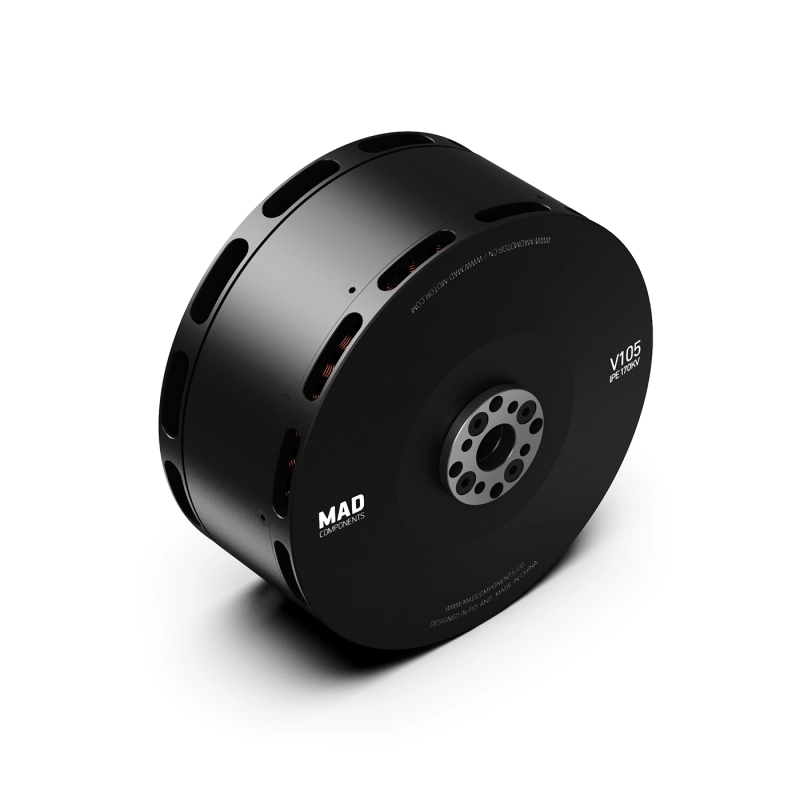

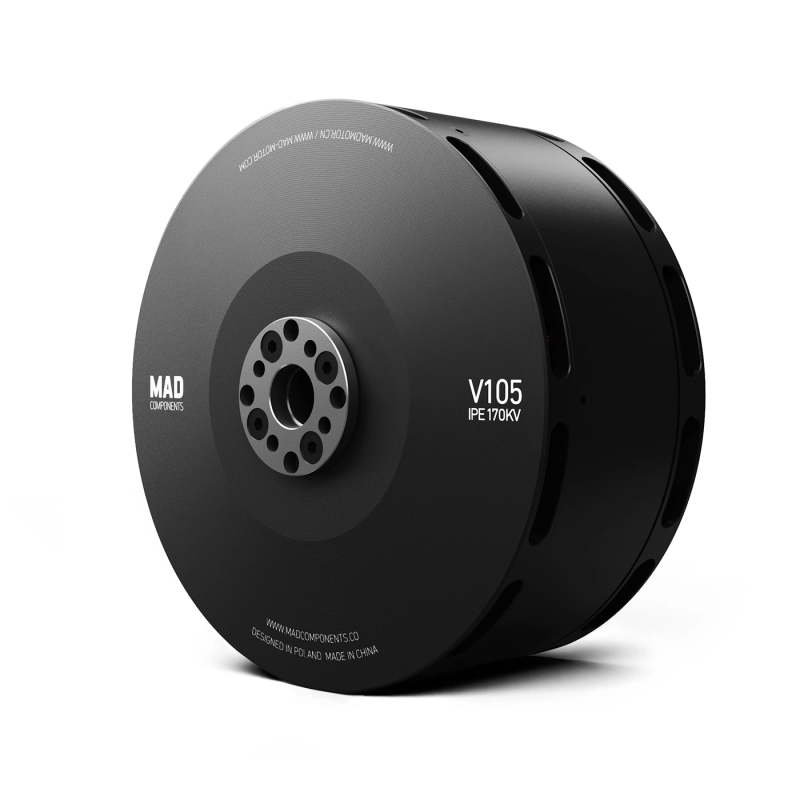

V105 IPE V1.0(42p) EVTOL Drone Motor

Name: V105 IPE V1.0(42p) EVTOL Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ1129
Price: 379 USD
Availability: OutOfStock

SKU: 0101DJ1129

Designed to carry payloads of 10-13kg per rotor, with 30″ carbon propeller. Max thrust is up to 30.4kg per rotor, unit motor weighs only 999g. With large pitch EVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAVS.

$379.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
170KV
Solution

Motor Data
Motor Model	MAD V105 IPE V1.0	Number of pole pairs	21
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:108.6 × 49.9 mm	Magnet Degree	180°C
Degree of Protection	IP35	Cable Length	150 mm (extended Enameled wires）
Centrifugal Heat Dissipation	YES	Rotor Balance	≤10 mg
Propeller Mounting Holes	D:20 M3×4, D:24 M4×4	Motor Balance	≤20 mg
Shaft Diameter	IN: 20 mm	Motor Mounting Holes	D:50 M5×4
Bearing	6902ZZ*2	Disruptive test	500 V

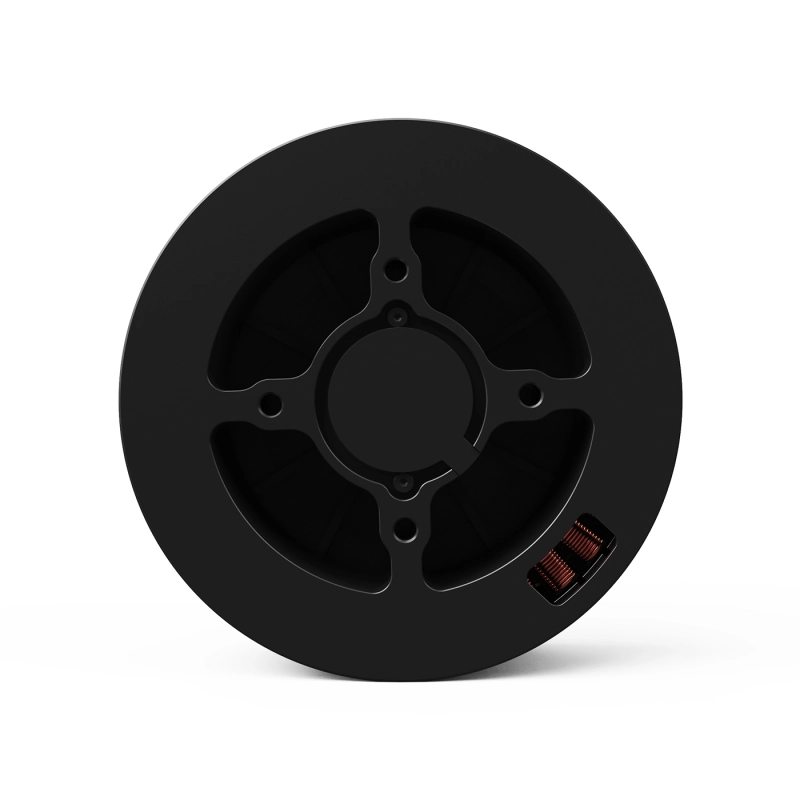

Drawing and mount holes

___________________________________________________________________________________________________________________________

Accessories

SOLUTION
VTOL Motor/KV	VTOL Prop	VTOL ESC
V105 IPE 170KV	Fluxer VTOL 29x8.7/30x10	MAD AMPX 200A (5-14S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 rotors)
12S(4.3V/S)/42-52V	10kg ~ 13kg	44kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
