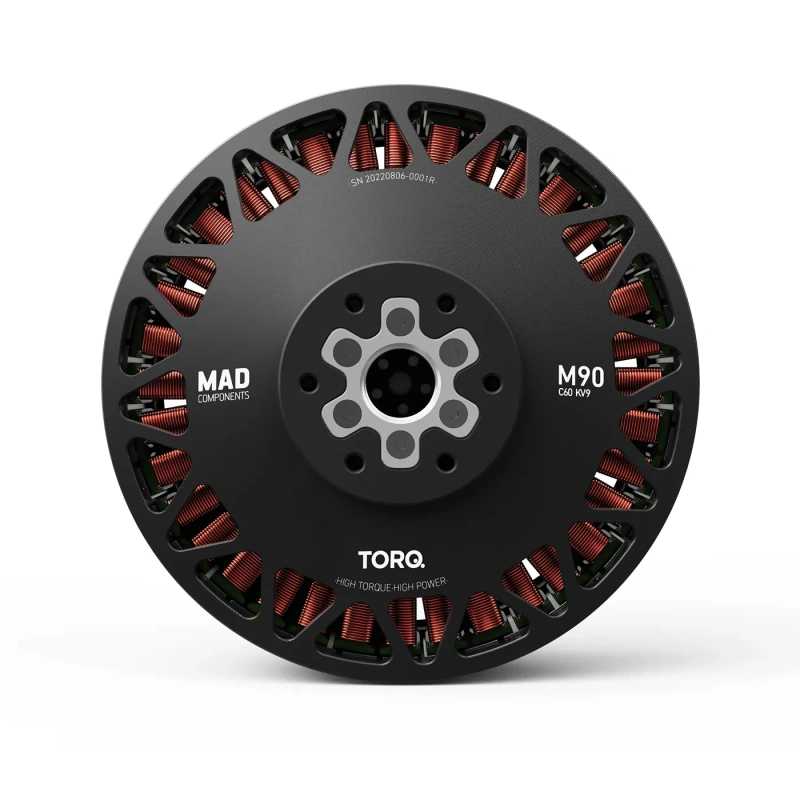

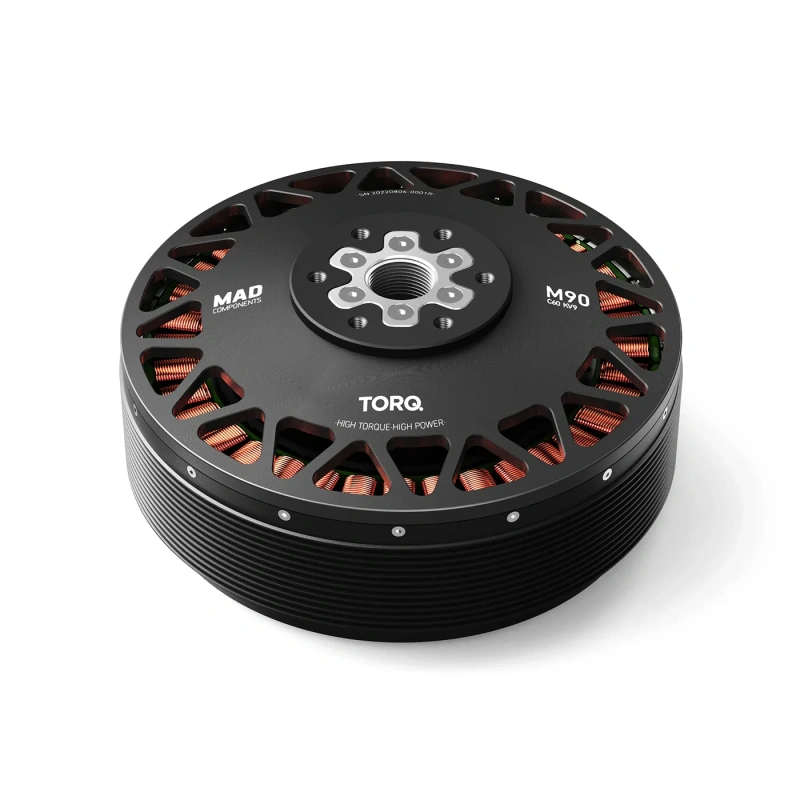

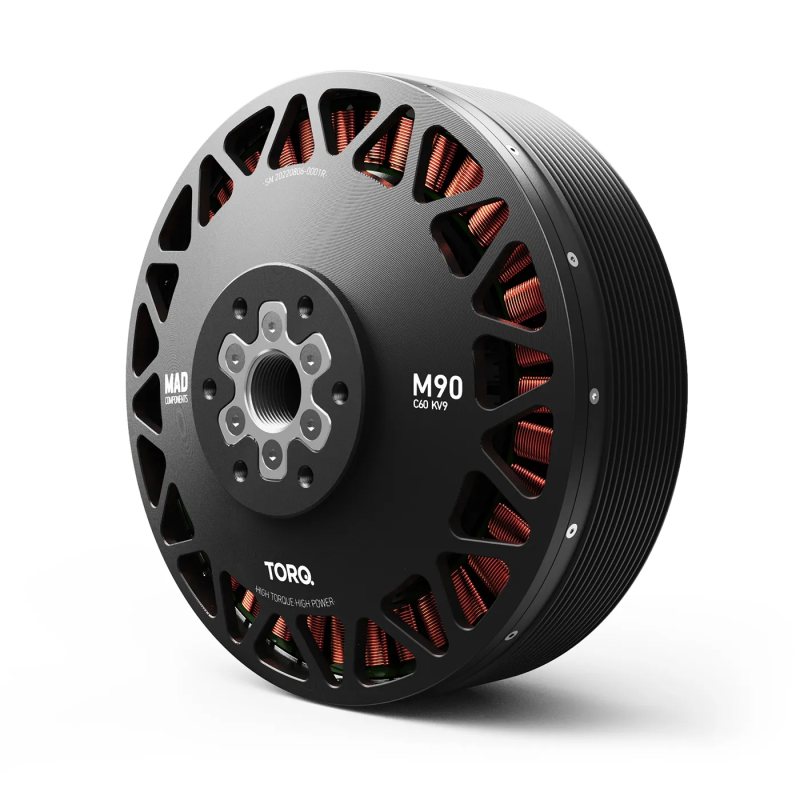

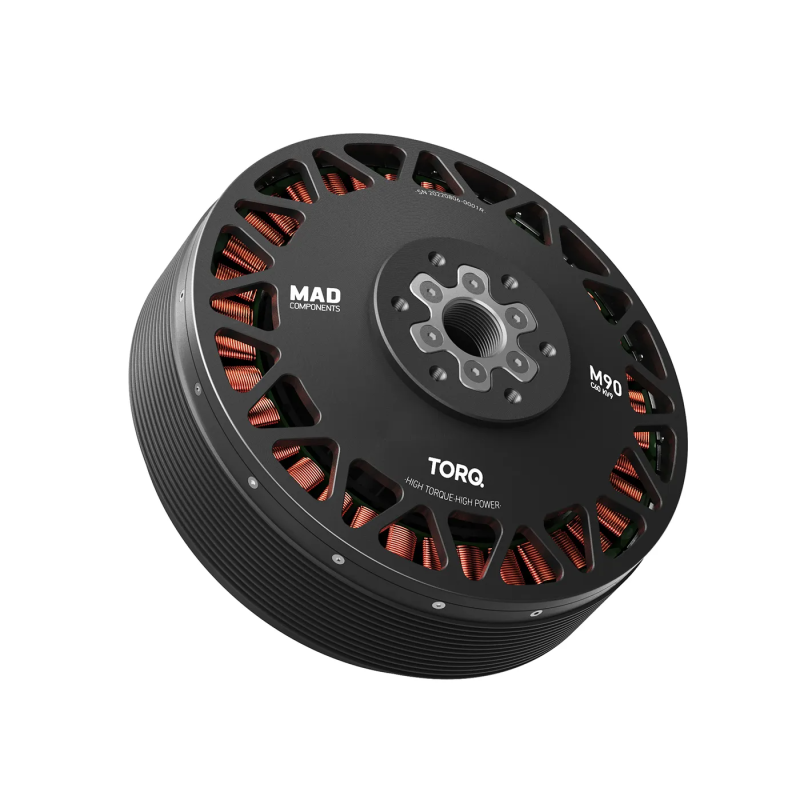

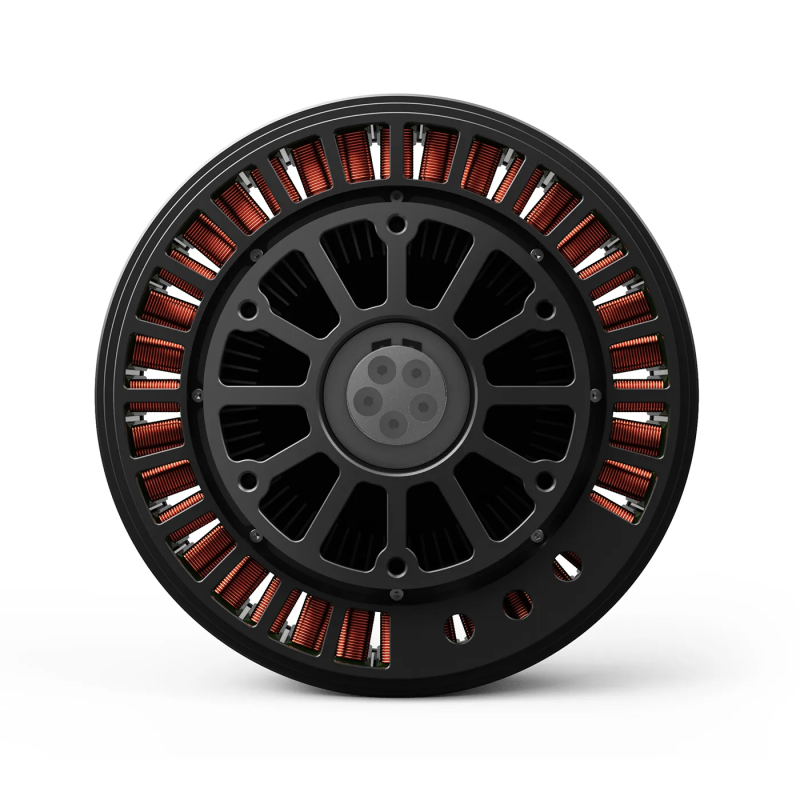

M90C60 EEE manned drone motor

SKU: 0101DJ1233
1.Output of 45kW(continune thrust 110kg), equivalent to 61 hp.
2. With 72*31"inch carbon fiber propeller
3.Recommended FOC ESC,Prop HB110-72x31 drone arm set

$0.00 $5,000.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV OPTION:
    9KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD M90C60 EEE 45KW output brushless motor for the electric manned drone e-VTOL and paratrike urban mobility
  • MAD M90C60 EEE 45KW output brushless motor for the electric manned drone e-VTOL and paratrike urban mobility
  • MAD M90C60 EEE 45KW output brushless motor for the electric manned drone e-VTOL and paratrike urban mobility
  • MAD M90C60 EEE 45KW output brushless motor for the electric manned drone e-VTOL and paratrike urban mobility
  • MAD M90C60 EEE 45KW output brushless motor for the electric manned drone e-VTOL and paratrike urban mobility
  • Description
  • 9KV
It is designed for large manned multi-rotor aircraft, electric paragliders, large E-VTOL UAVs, paramotors and paratrikes. This type of motor is manufactured using industrial grade components.

Motor Data

Motor Model MAD M90C60 EEE V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:257 × 123 mm Motor Balance 180°C
Degree of Protection Rain protection Cable Length 250 mm (extended Enameled wires)
Centrifugal Heat Dissipation Independent Rotor Balance ≤20 mg
Propeller Mounting Holes D:75 M8×6 Motor Balance ≤30 mg
Shaft Diameter IN: 35 mm Motor Mounting Holes D:140 M8×6
Bearing 6007ZZ *2 Disruptive test 1000 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
