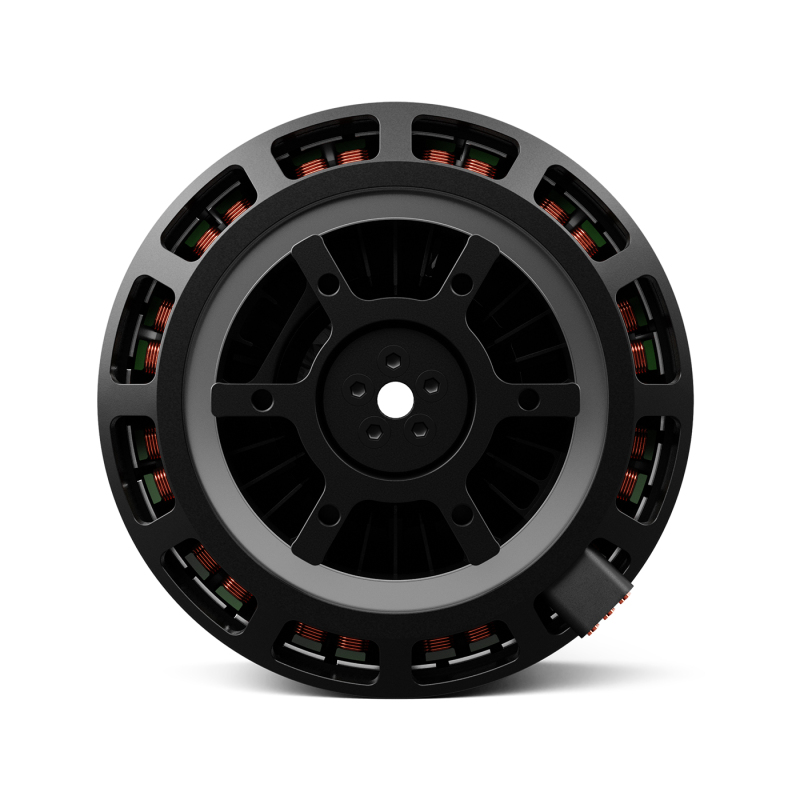

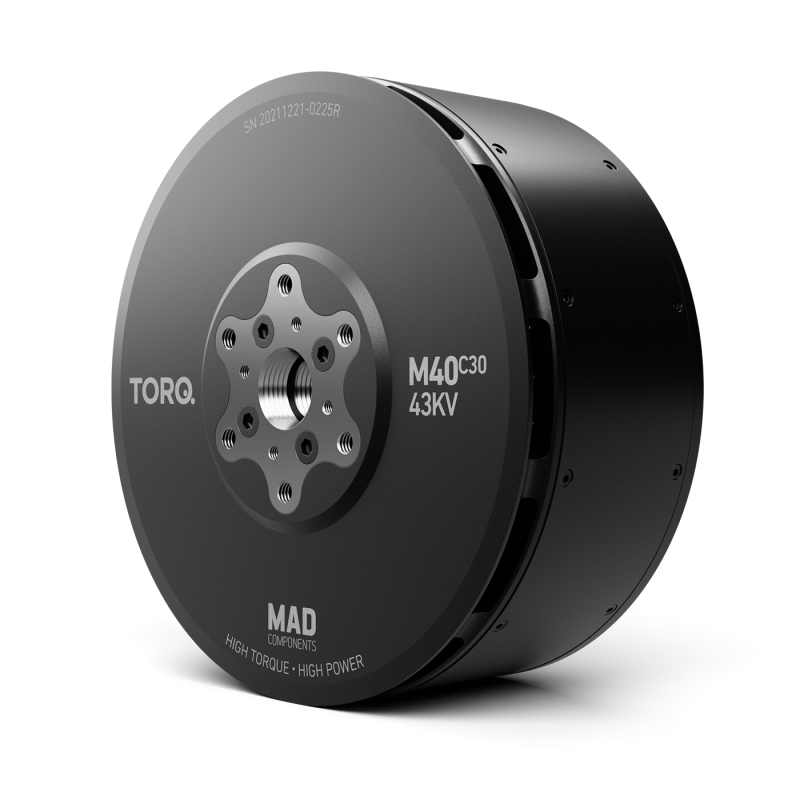

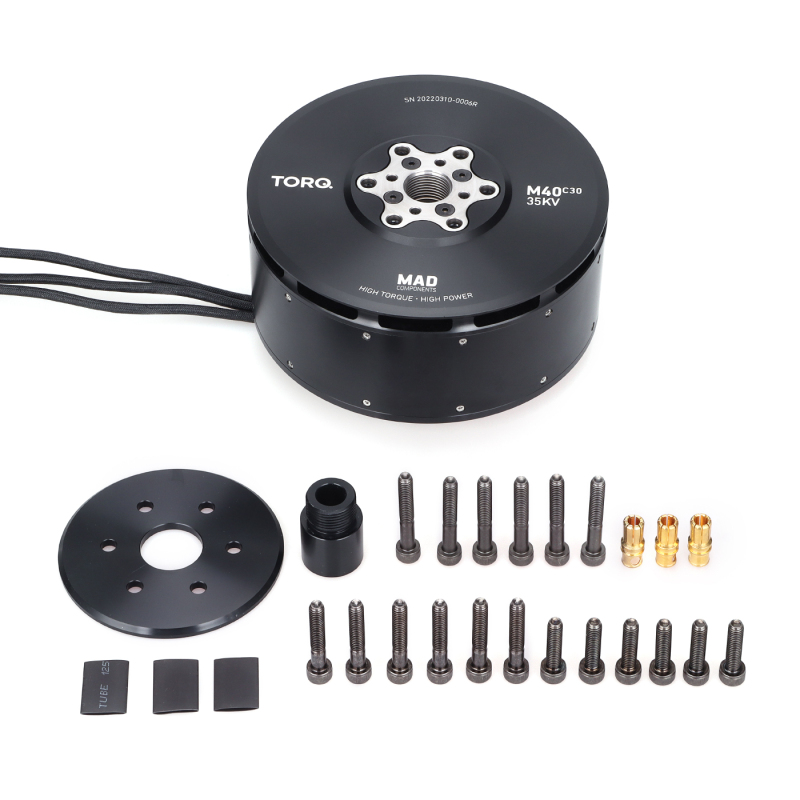

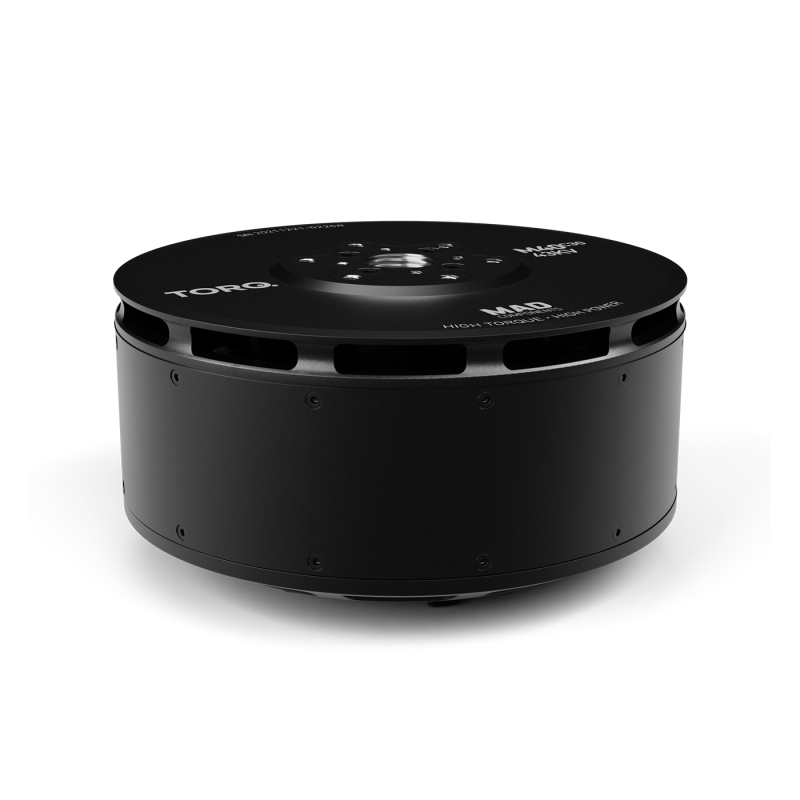

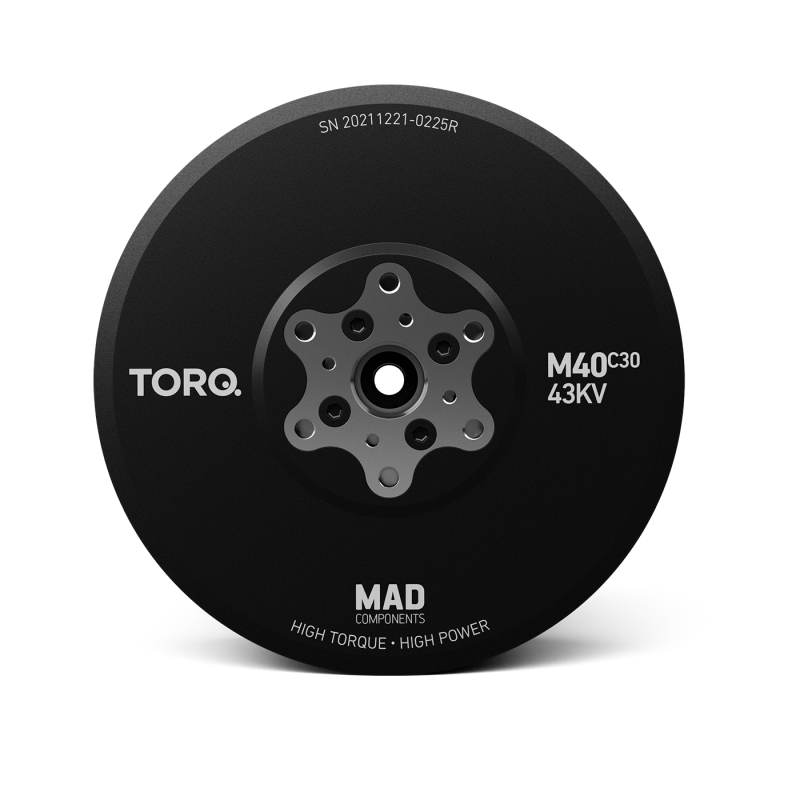

M40C30 PRO IPE brushless drone motor

Name: M40C30 PRO IPE brushless drone motor
Brand: MAD COMPONENTS
SKU: 0101DJ0221
Price: 1069 USD
Availability: InStock

SKU: 0101DJ0221

1.The case is equipped with large locating bearings to eliminate resonance and gyroscopic effects.
2. Maximum thrust of 70kg, designed for agricultural pest control and professional applications.
3. 43KV recommend:ESC：AMPX 300A (12-24s) propeller:fluxer glossy 47.5x17.4 pro,
4. 35KV recommend: HB30-54x24,
5. 10KV motor with FOC ESC combo recommend:HB30-54x24,HB30-CB2 47.5x18. 5 , HB30 47.5x17.4,HB30-52x19

$1,069.00

Received successfully

Coupon Code

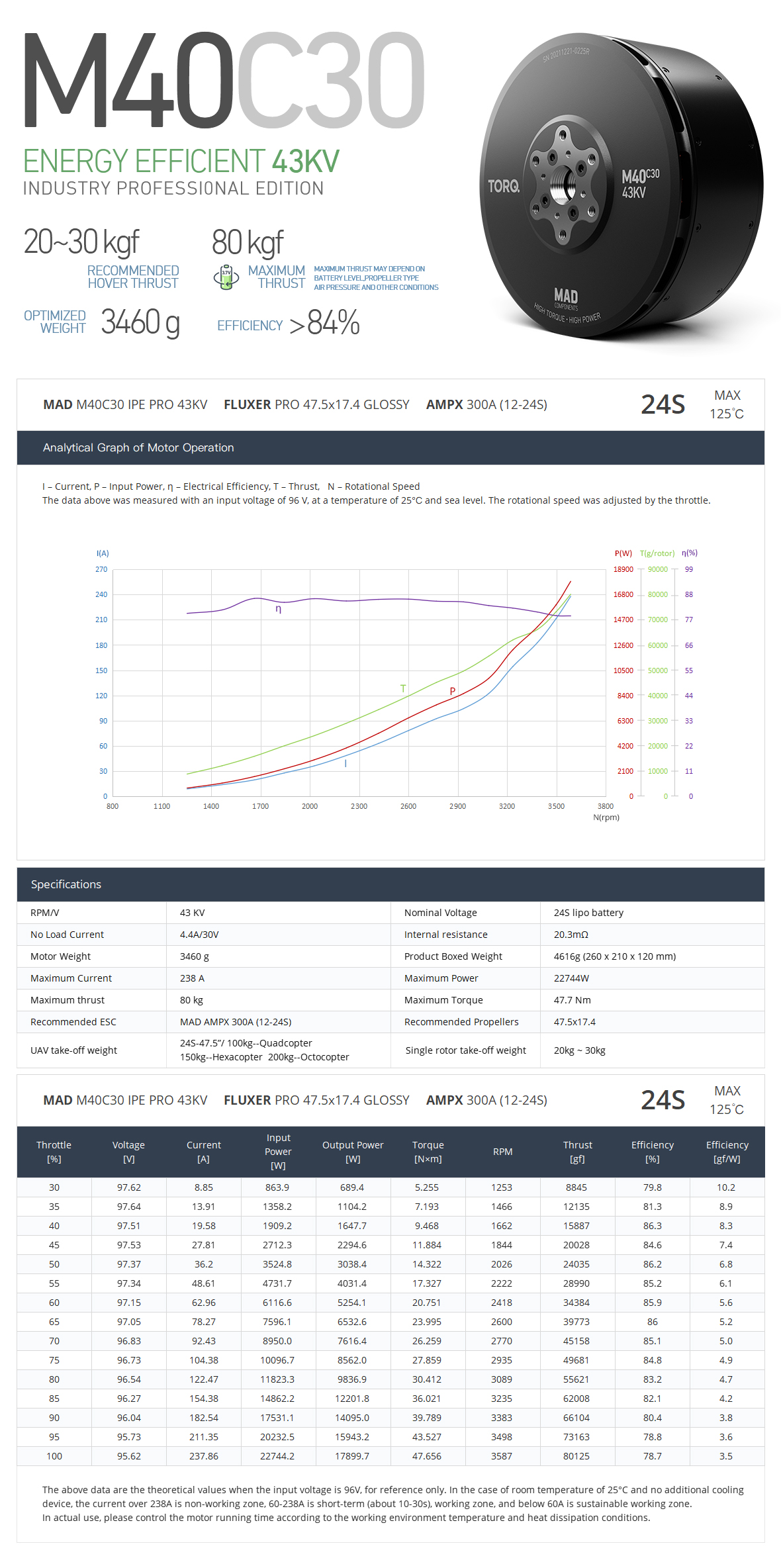

Motor Data
Motor Model	MAD M40C30 IPE V3.0	Number of pole pairs	15
Stator	Anticorrosive	Varnished wire Degree	220°C

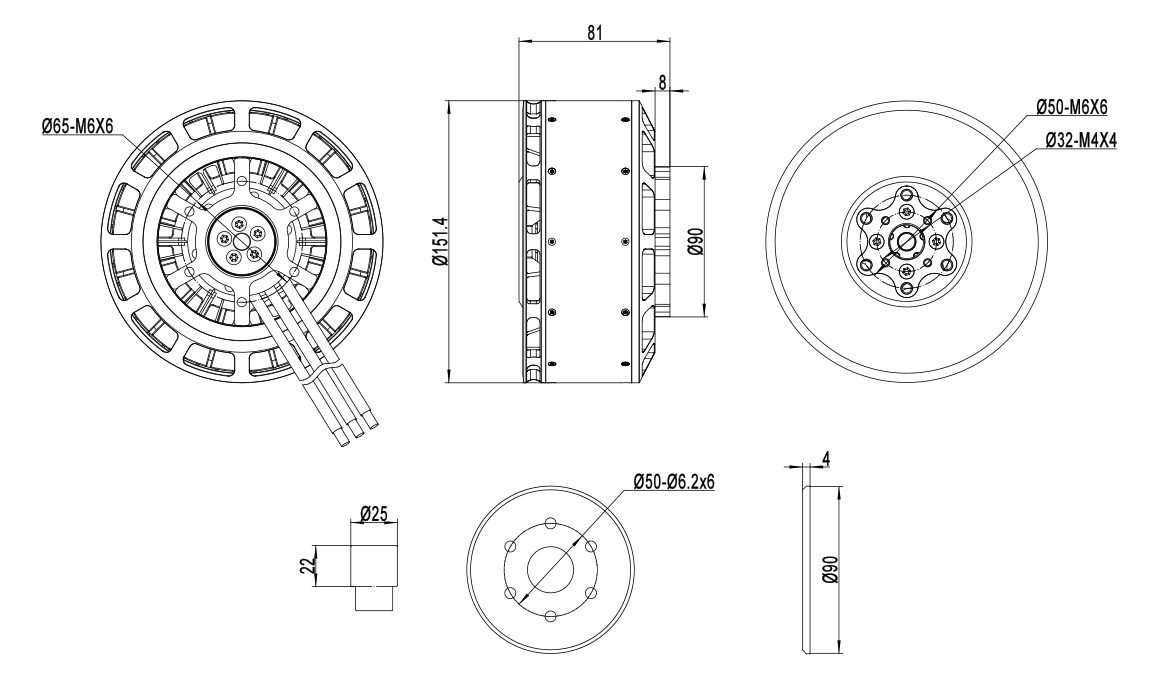

Motor Size	D:151.4 × 81 mm	Motor Balance	180°C
Degree of Protection	IP45	Cable Length	150 mm (extended Enameled wires）
Centrifugal Heat Dissipation	YES	Rotor Balance	≤20 mg
Propeller Mounting Holes	D:50 M6×6	Motor Balance	≤30 mg
Shaft Diameter	IN: 25 mm	Motor Mounting Holes	D:65 M6×6
Bearing	6805ZZ *2 / 6818ZZ	Disruptive test	500 V
