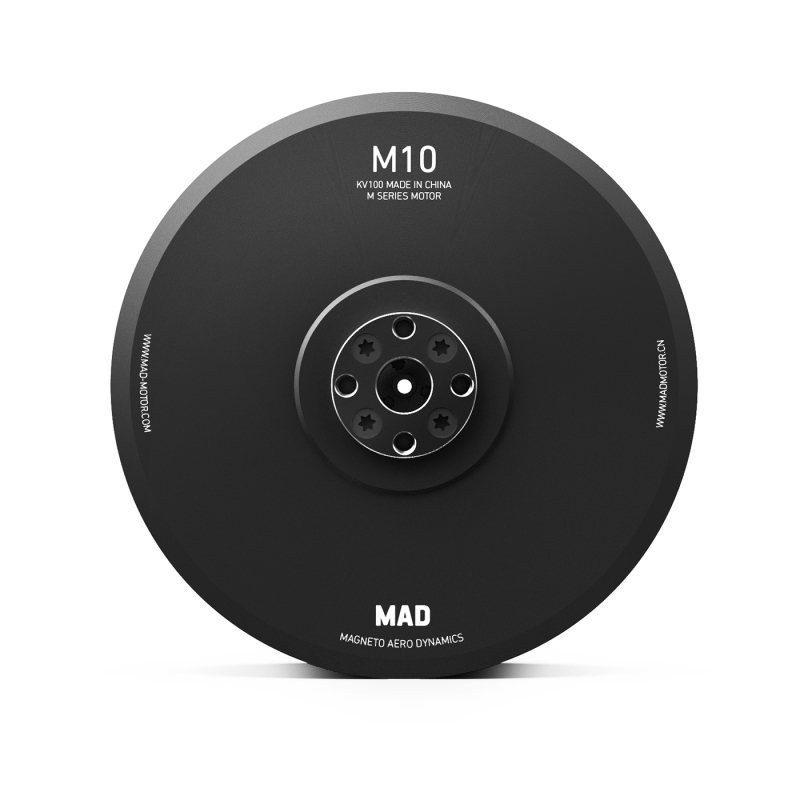

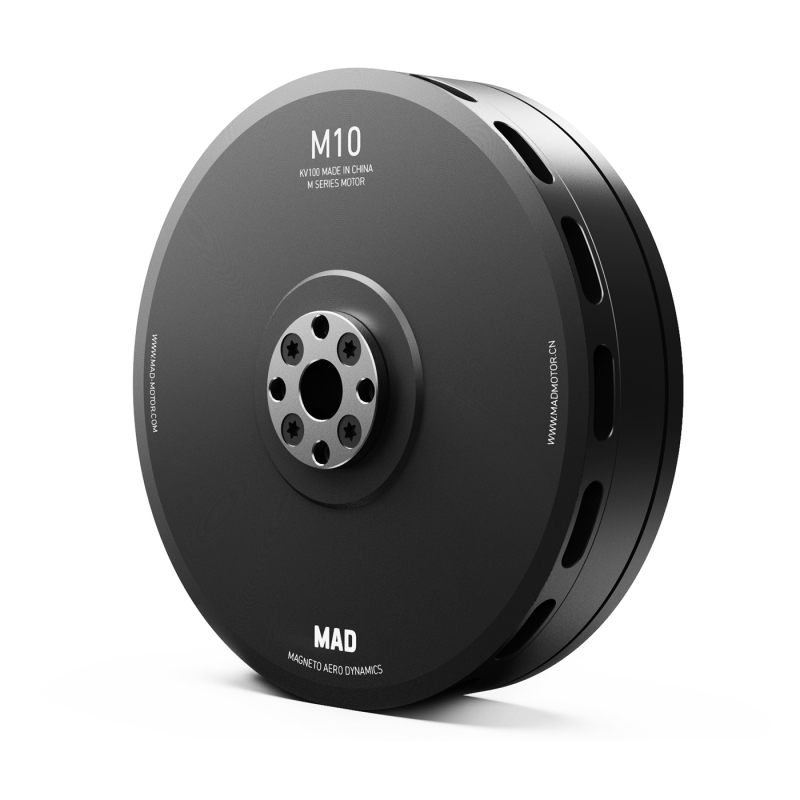

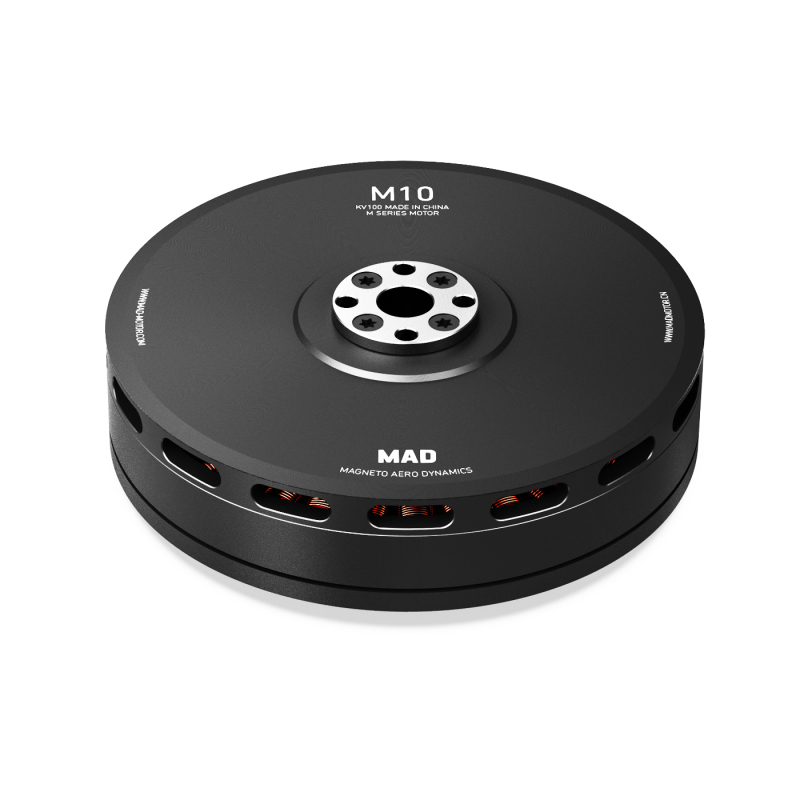

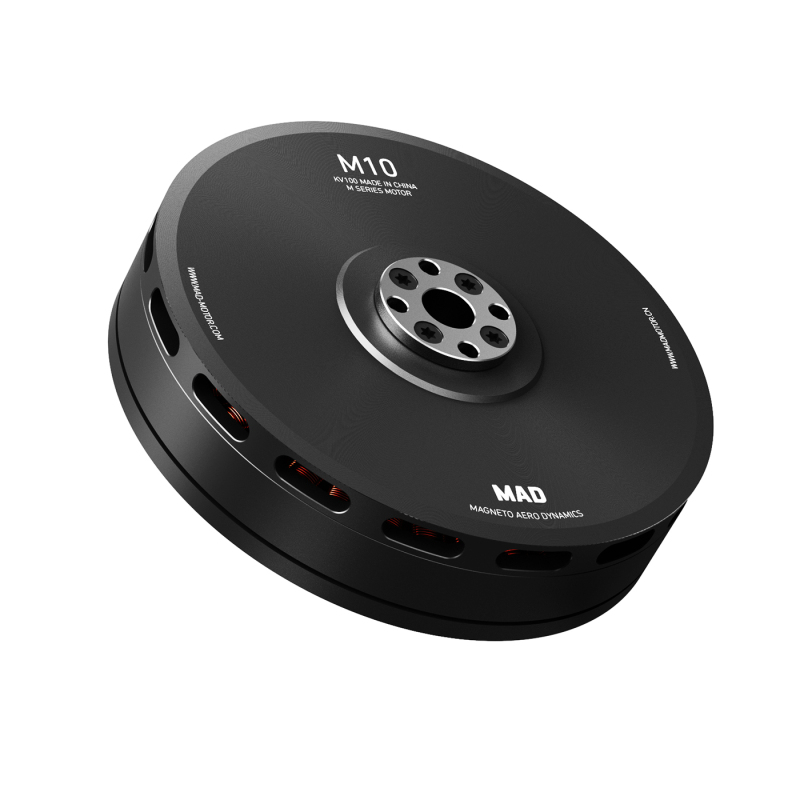

M10 IPE V2.0 Angular Contact Ball Bearing Version brushless motor

SKU: 0101DJ0397
M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying or anything in between where professional industrial grade propulsion systems are required. This type of motor is made with industrial grade components, it is for the long flight time multirotor hexacopter octocopte for the long flight time tethered drone.
$0.00 $329.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    90KV
    100KV
    150KV
    180KV
    120KV
    Please select the information you wantX
Quantity
-
+
  • M10 IPE V2.0 Angular Contact Ball Bearing Version brushless motor
  • M10 IPE V2.0 Angular Contact Ball Bearing Version brushless motor
  • M10 IPE V2.0 Angular Contact Ball Bearing Version brushless motor
  • M10 IPE V2.0 Angular Contact Ball Bearing Version brushless motor
  • M10 IPE V2.0 Angular Contact Ball Bearing Version brushless motor
  • Description

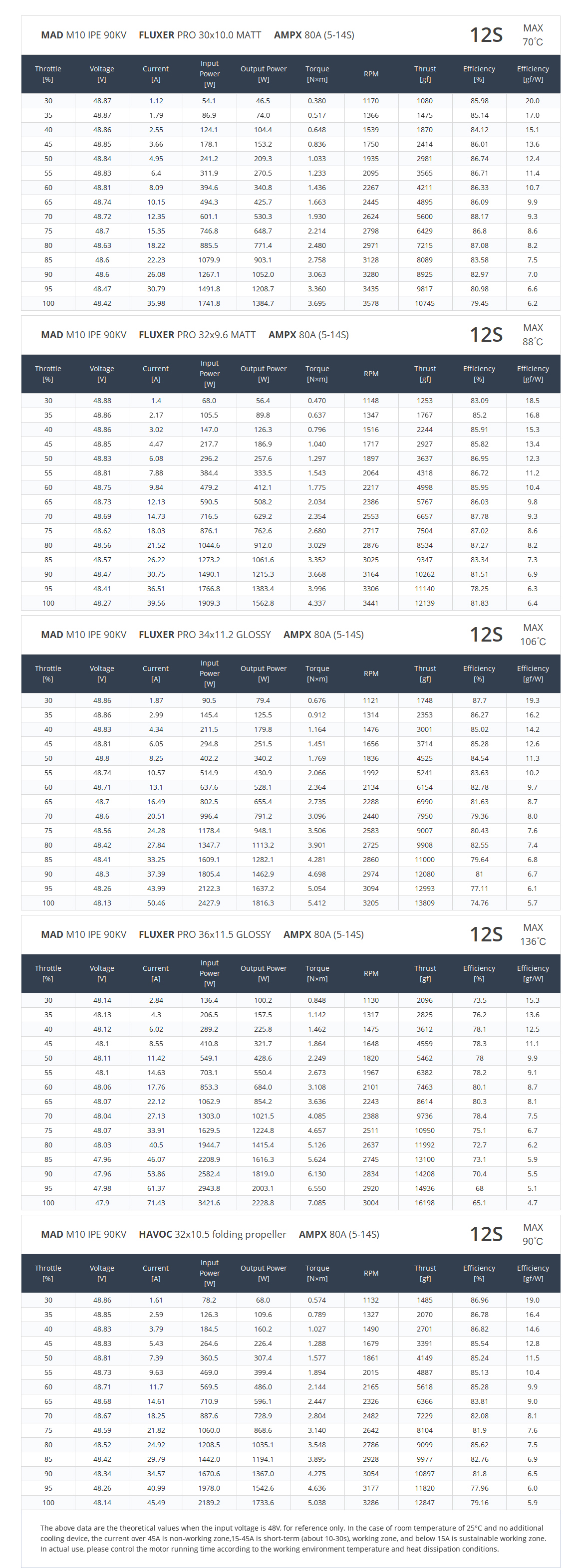

  • 90KV
  • 100KV

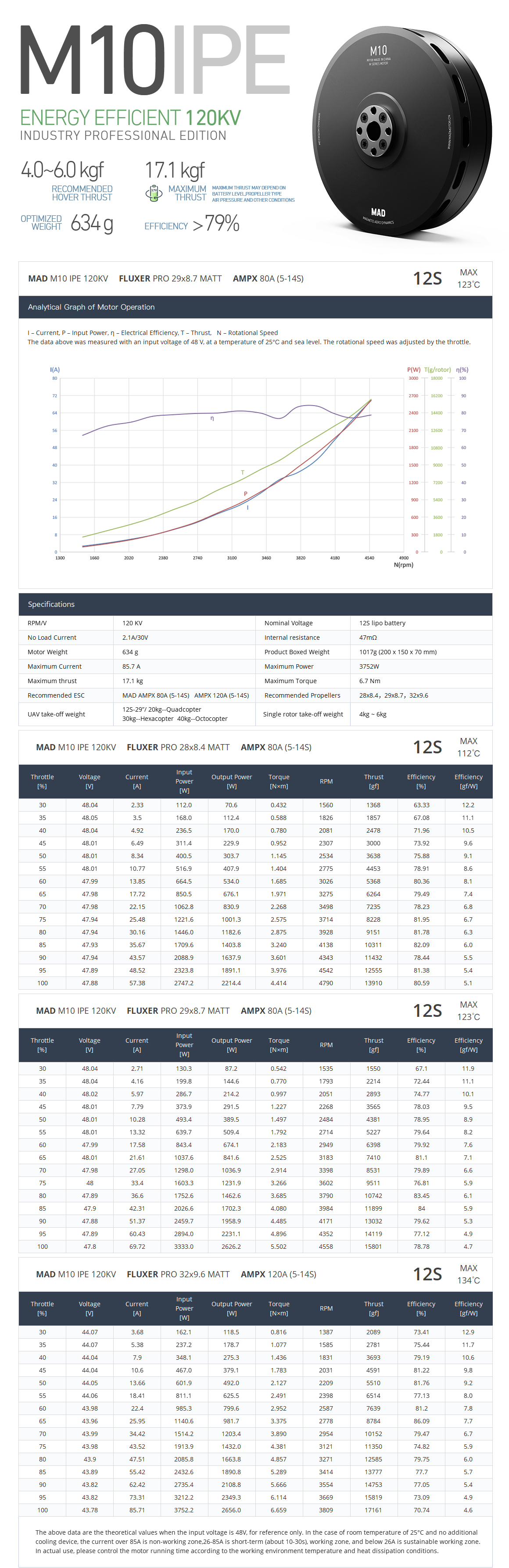

  • 120KV

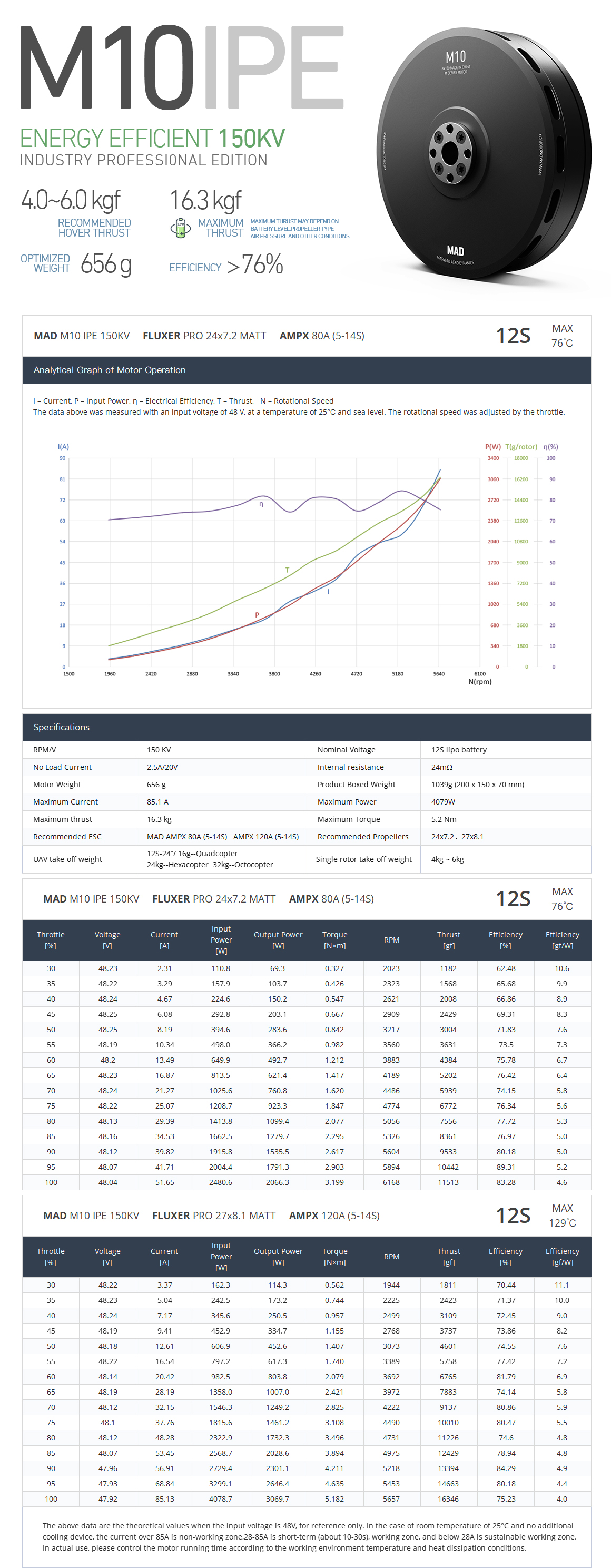

  • 150KV

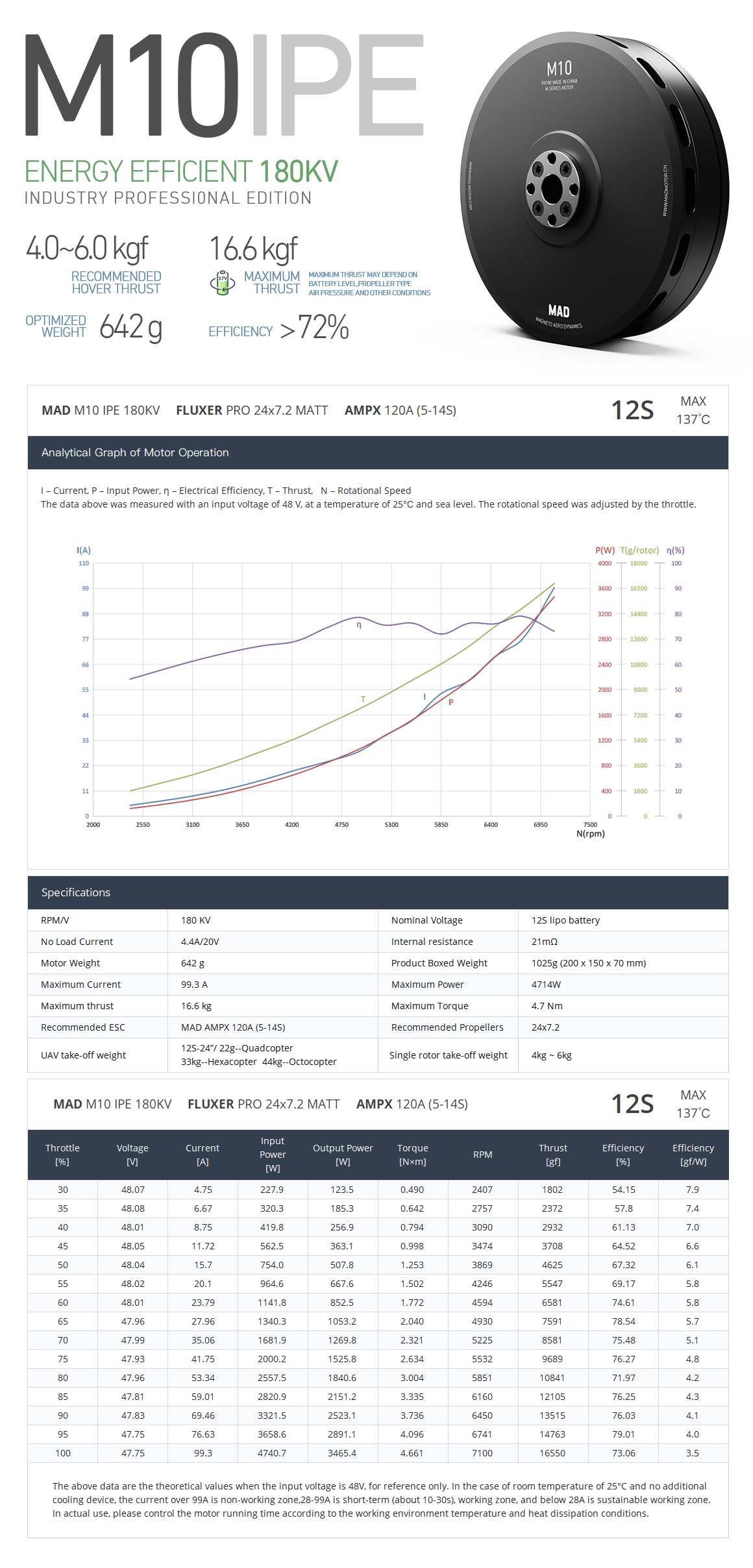

  • 180KV

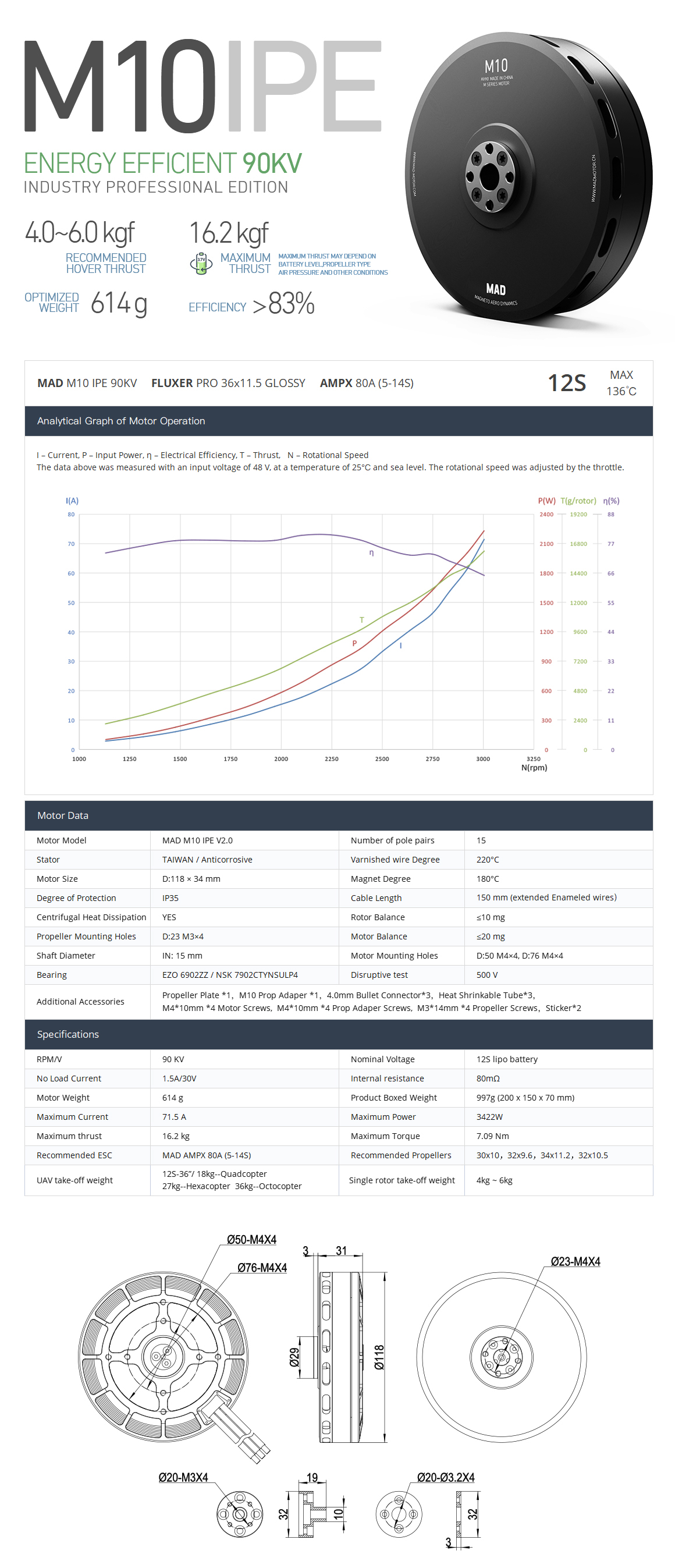

Motor Data

Motor Model MAD M10 IPE V2.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:118 × 34 mm Motor Balance 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:23 M3×4 Motor Balance ≤20 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:50 M4×4, D:76 M4×4
Bearing 6902ZZ / 7902CTYNSULP4 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
