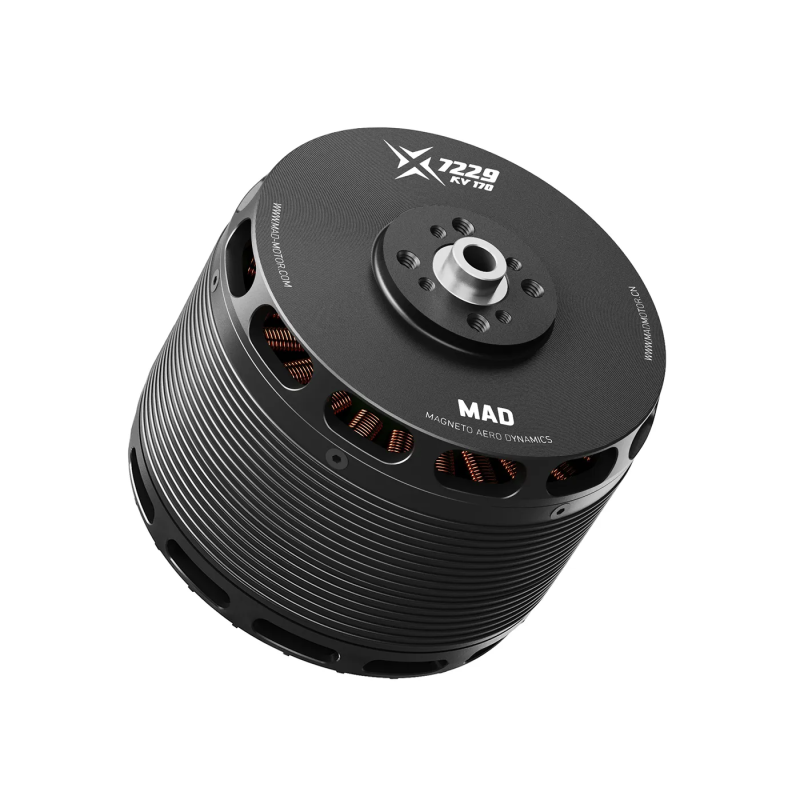

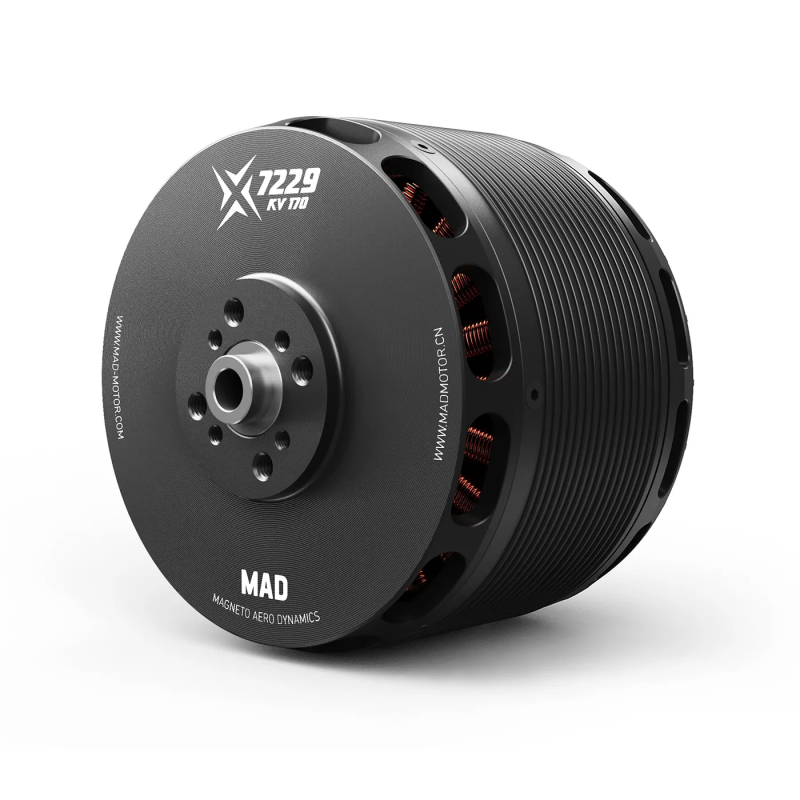

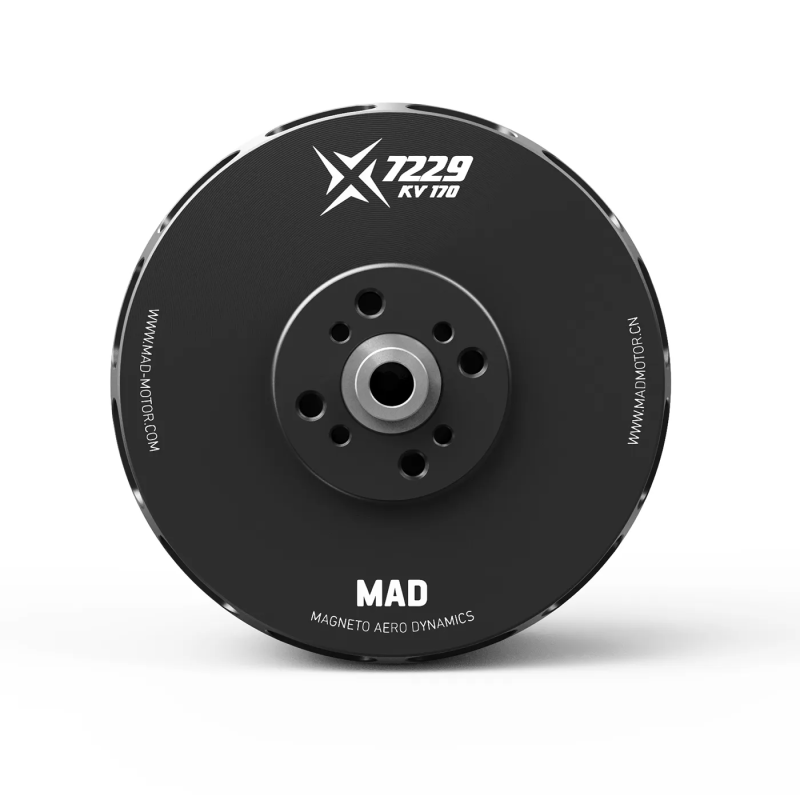

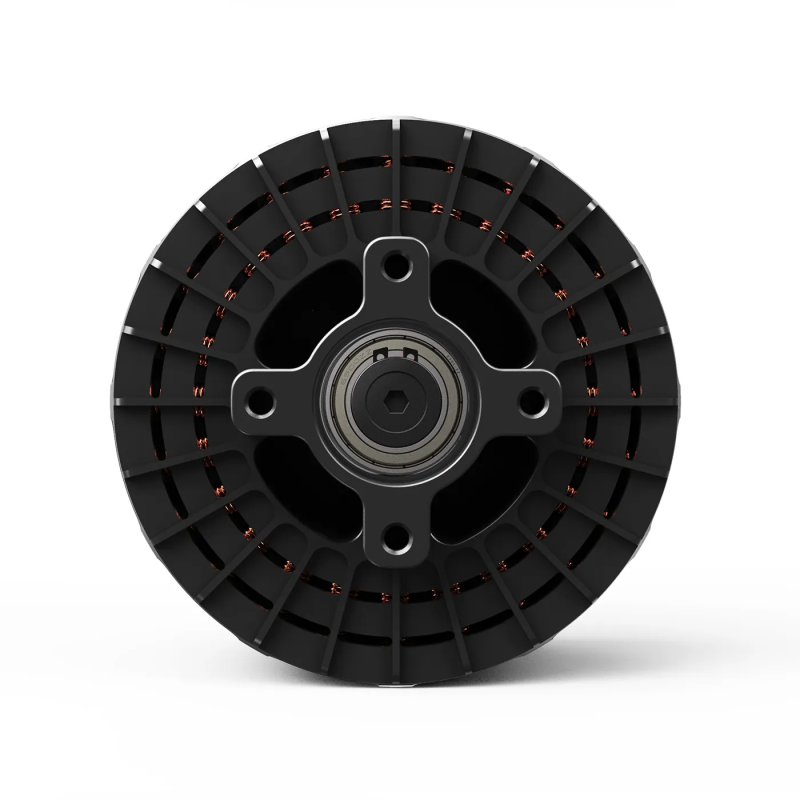

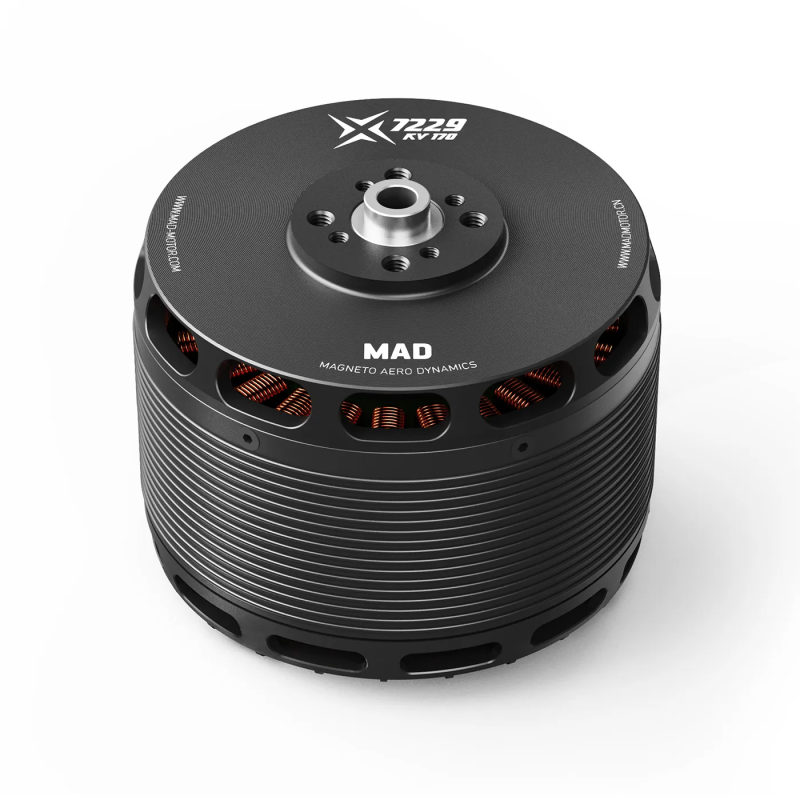

X7229 VTOL Airplane Drone Motor

SKU: 0101DJ1077
It is suitable for 120E-170E aircraft, corresponding to petrol engine about 30-40CC. These are very high efficiency VTOL engines. Various mounting options suitable for aircraft and multicopters. Optimised for best performance. Max thrust 18.3kg, more powerful and efficient than the same thrust motors in the market.Water and dust resistant. IP35 protection class,
$0.00 $219.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    170KV
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • MAD X7229 brushless motor suitable for 120E-170E aircraft,corresponding to gasoline engine about 30-40CC
  • MAD X7229 brushless motor suitable for 120E-170E aircraft,corresponding to gasoline engine about 30-40CC
  • MAD X7229 brushless motor suitable for 120E-170E aircraft,corresponding to gasoline engine about 30-40CC
  • MAD X7229 brushless motor suitable for 120E-170E aircraft,corresponding to gasoline engine about 30-40CC
  • MAD X7229 brushless motor suitable for 120E-170E aircraft,corresponding to gasoline engine about 30-40CC
  • Description
  • 170KV

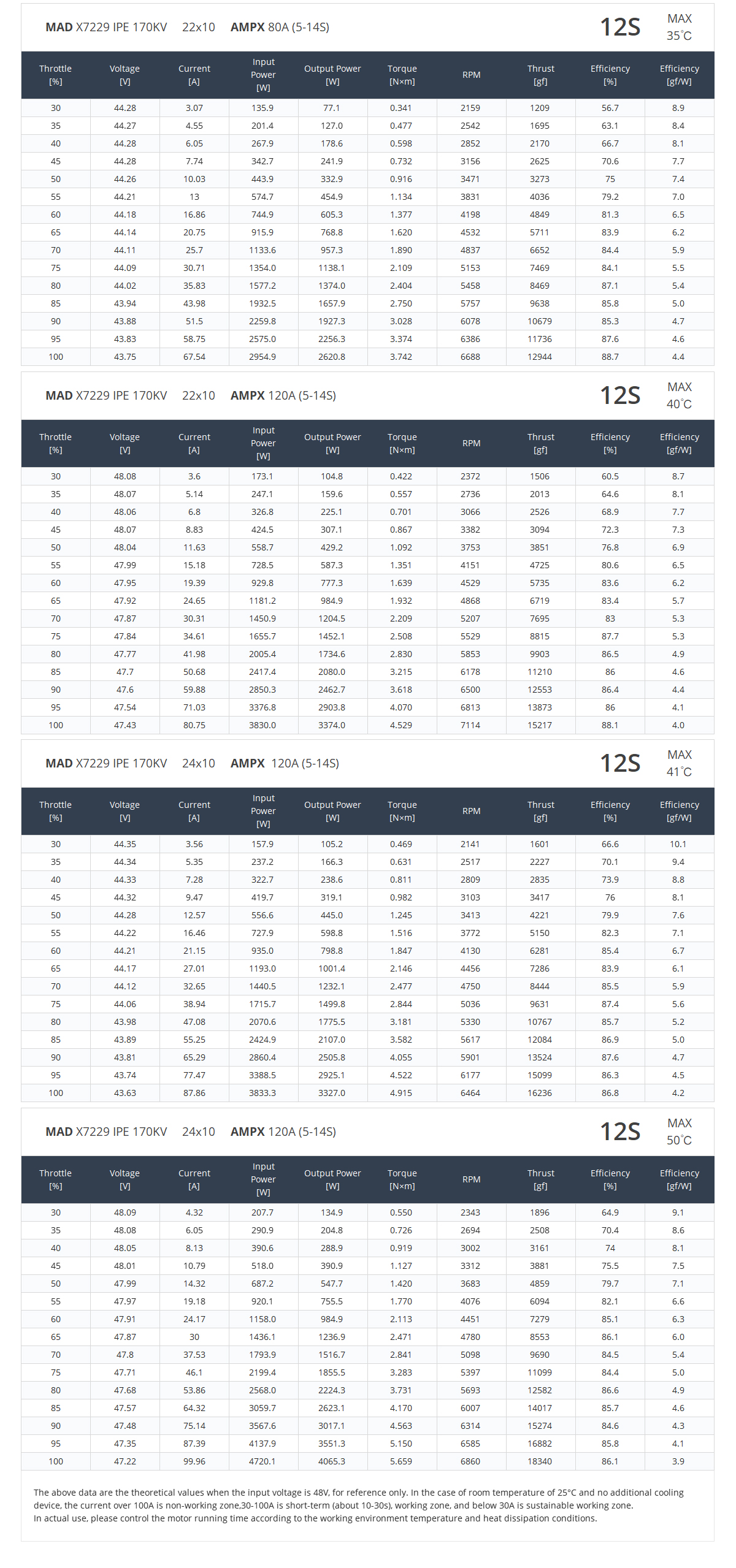

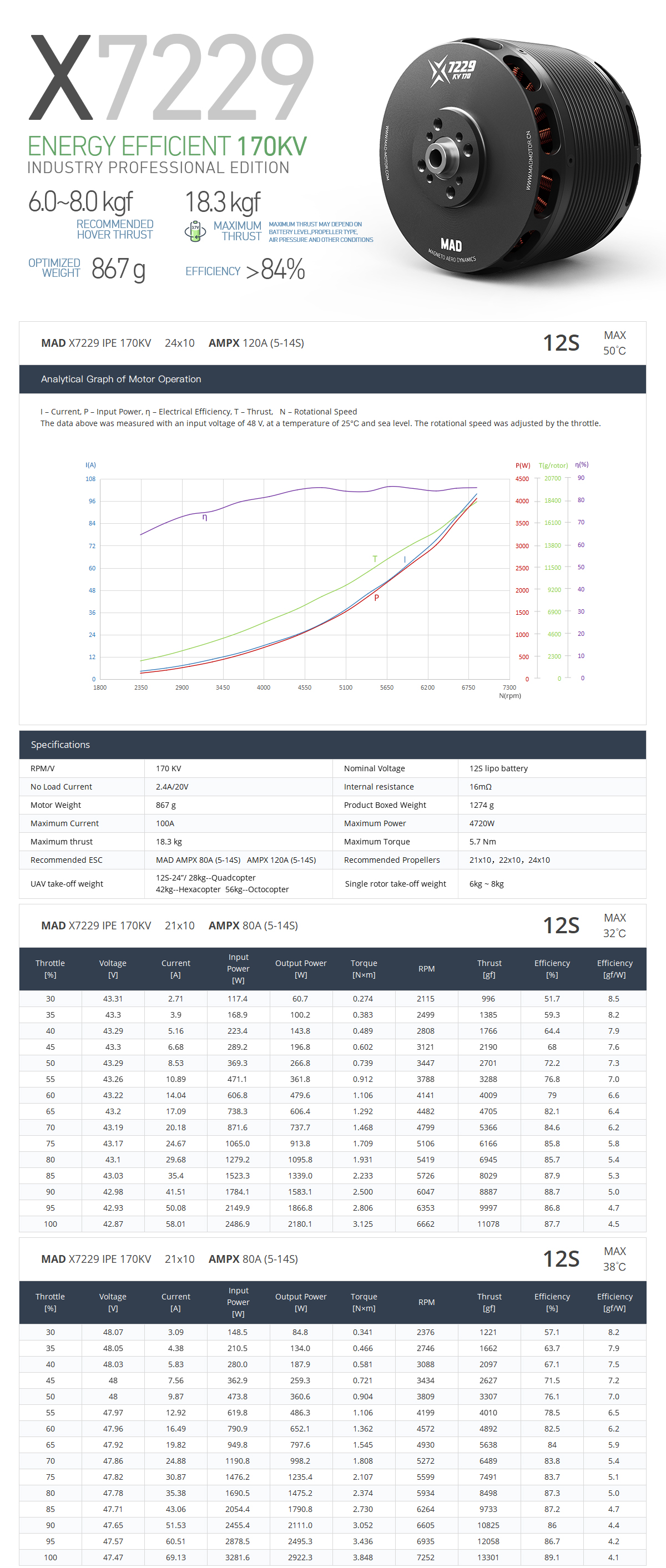

Motor Data
Motor Model MAD X7229 IPE V1.0 Number of pole pairs 11
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:81.1 × 71.5 mm Motor Balance 180°C
Degree of Protection IP35 Cable Length 150mm  (extended Enameled wires）
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4 / M8 Nut Motor Balance ≤10 mg
Shaft Diameter IN: 10 mm Motor Mounting Holes D:36 M4×4, D:90 M4×4
Bearing 6900ZZ *3 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
