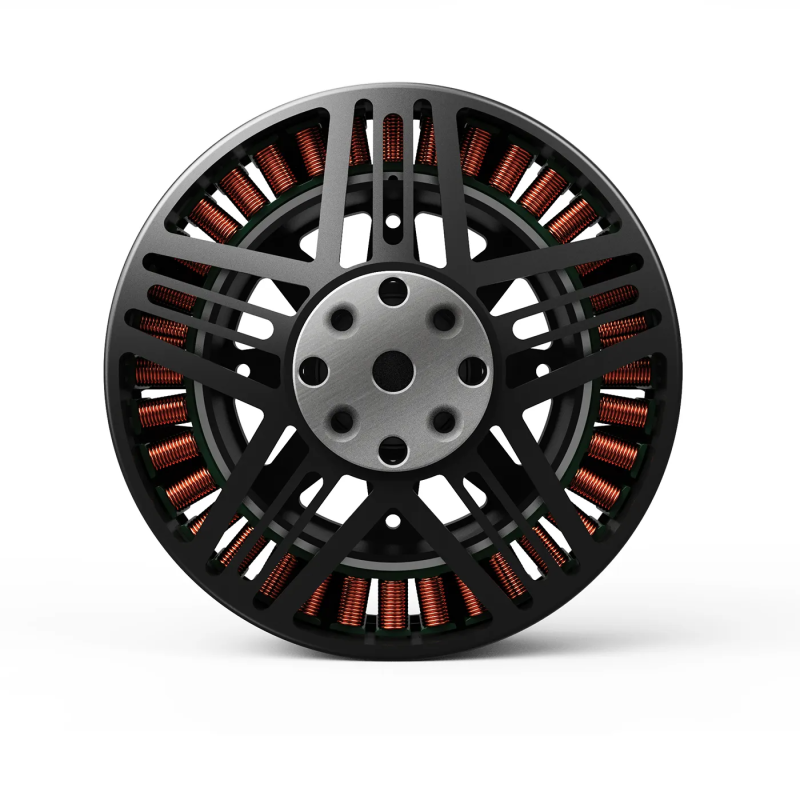

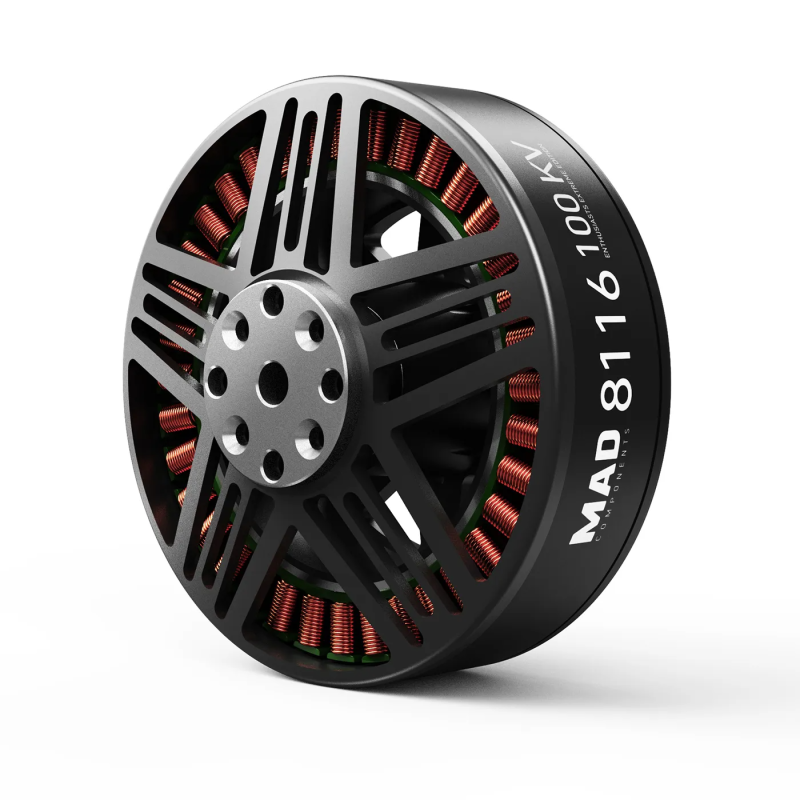

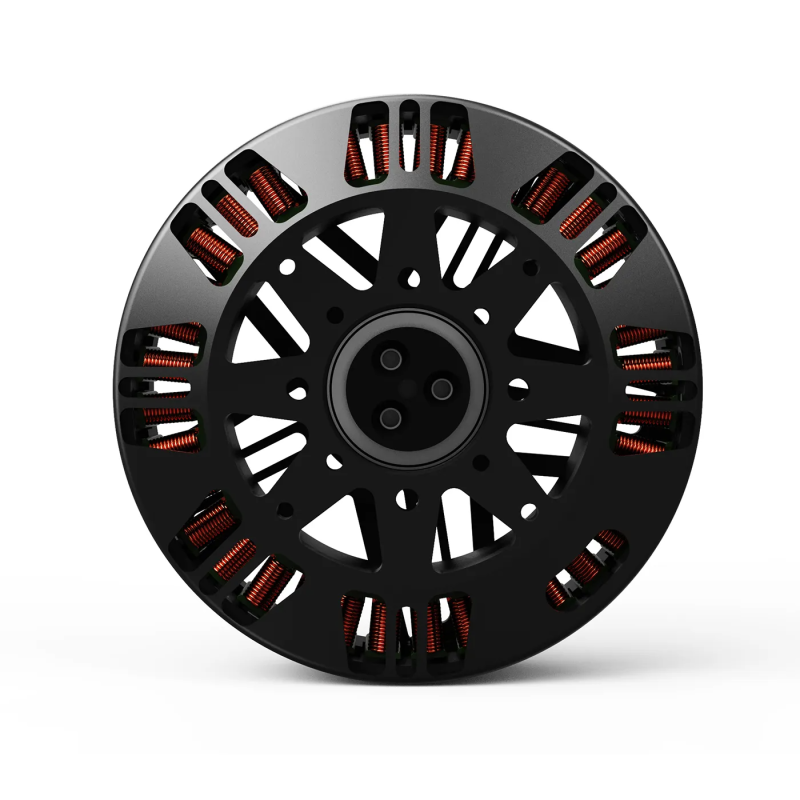

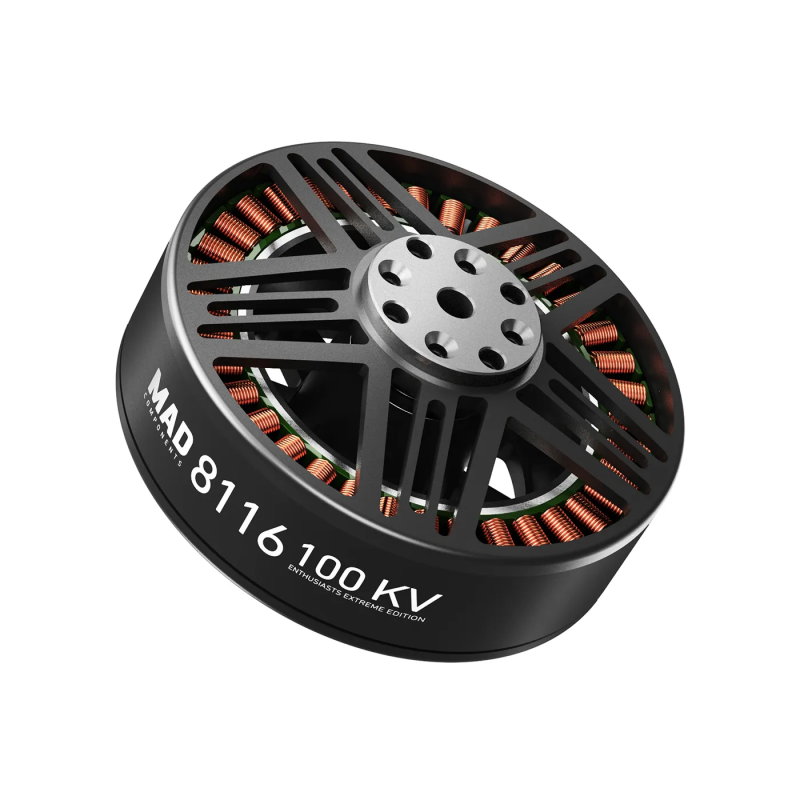

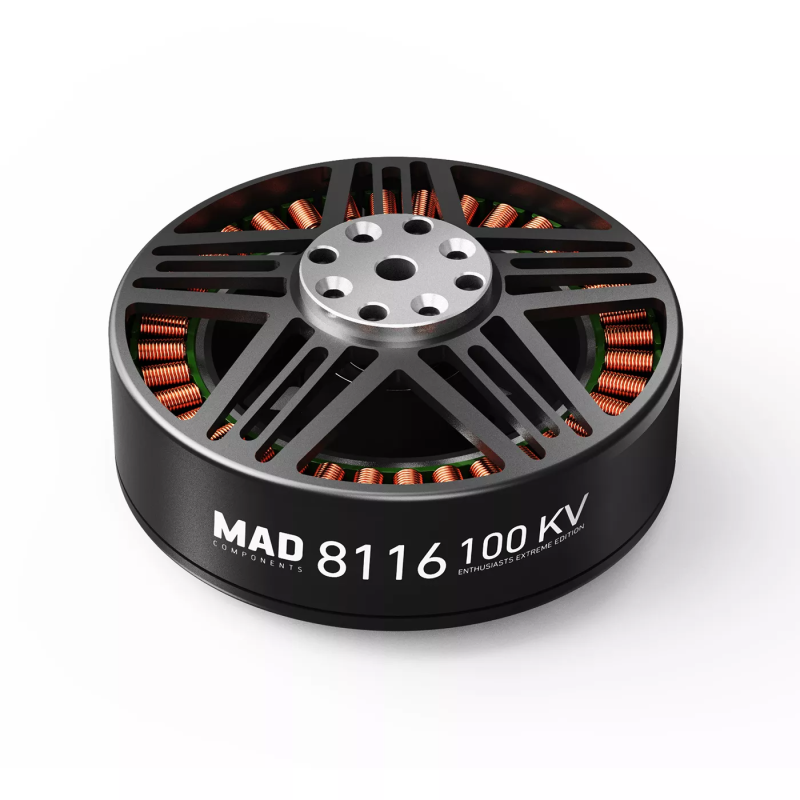

8116 EEE brushless drone motor

Name: 8116 EEE brushless drone motor
Brand: MAD COMPONENTS
SKU: 0101DJ0146
Price: 255 USD
Availability: InStock

SKU: 0101DJ0146

It is old style popular power motor in the line. a lot of designers not only want this motor have same efficient with 8108 but also want this motor is powerful. now it is mostly used to design robotic arm motor. it is replaced by the M9C12 100KV and 90KV.

$255.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
100KV

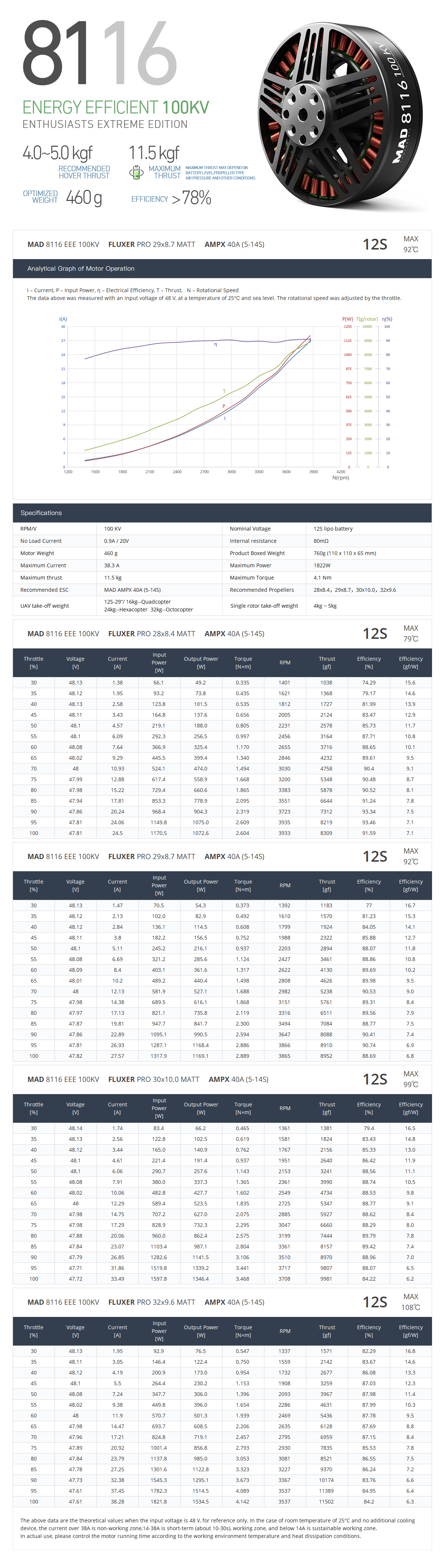

Motor Data
Motor Model	MAD 8116 EEE V1.0	Number of pole pairs	21
Stator	Anticorrosive	Varnished wire Degree	180°C

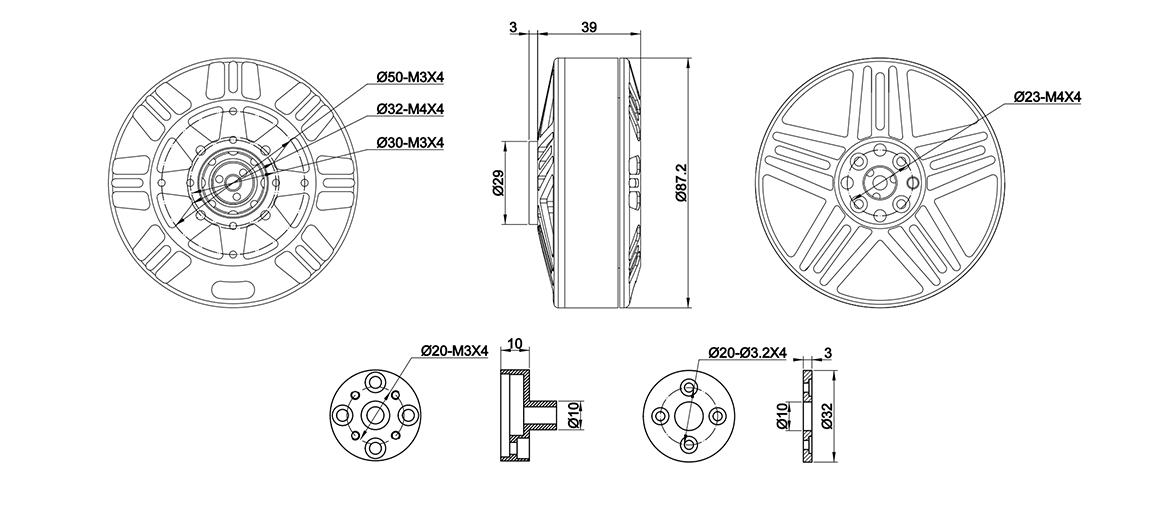

Motor Size	D:87.2 × 42 mm	Motor Balance	150°C
Degree of Protection	Rain protection	Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	Independent	Rotor Balance	≤10 mg
Propeller Mounting Holes	tD:23 M4×4	Motor Balance	≤20 mg
Shaft Diameter	IN: 15 mm	Motor Mounting Holes	D:30 M3×4, D:32 M4×4, D:50 M3×4
Bearing	EZO 6802ZZ*2	Disruptive test	500 V
