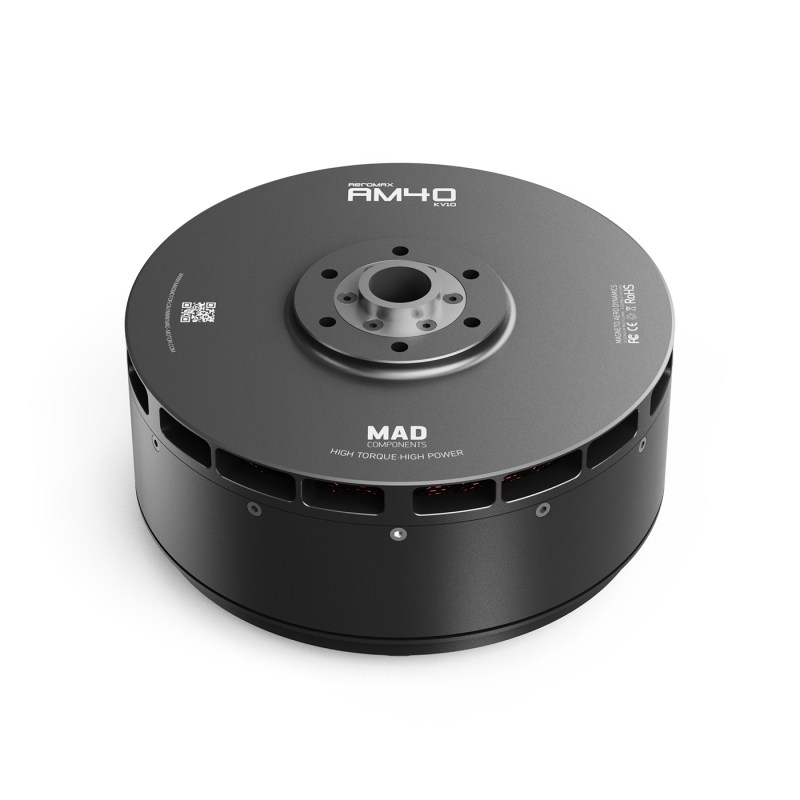

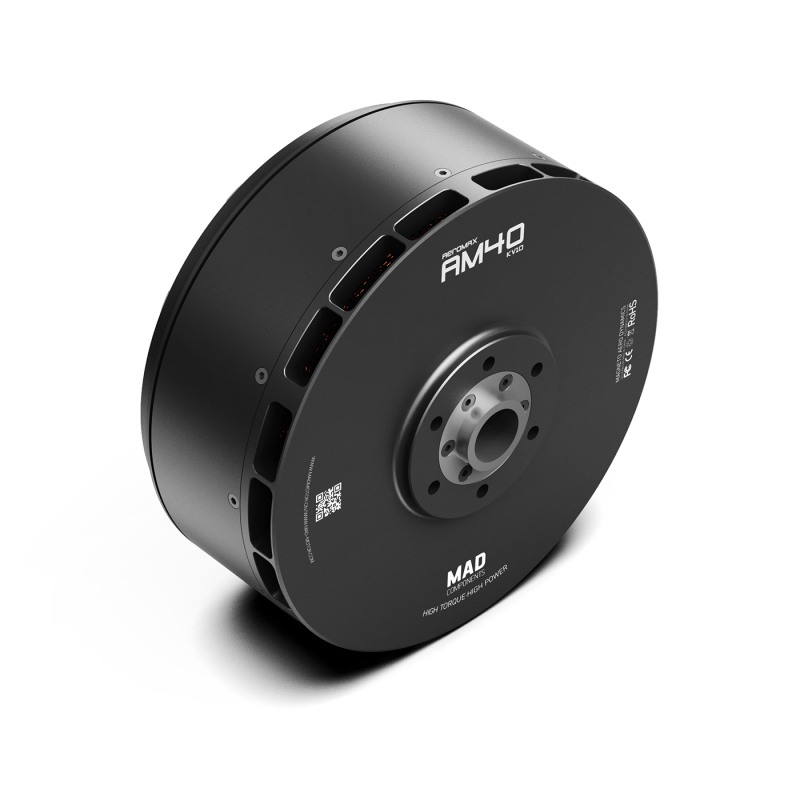

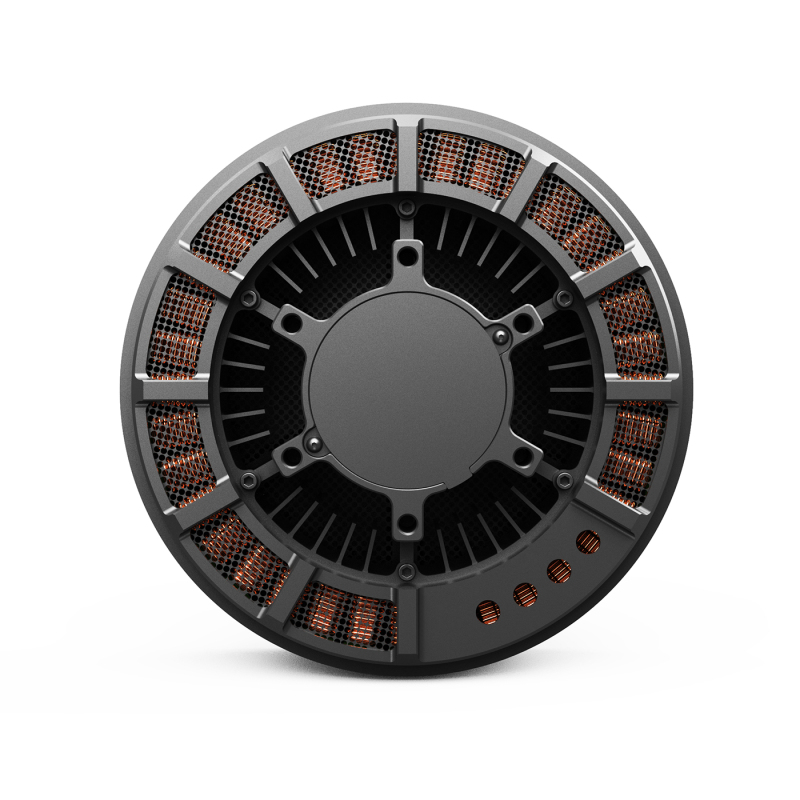

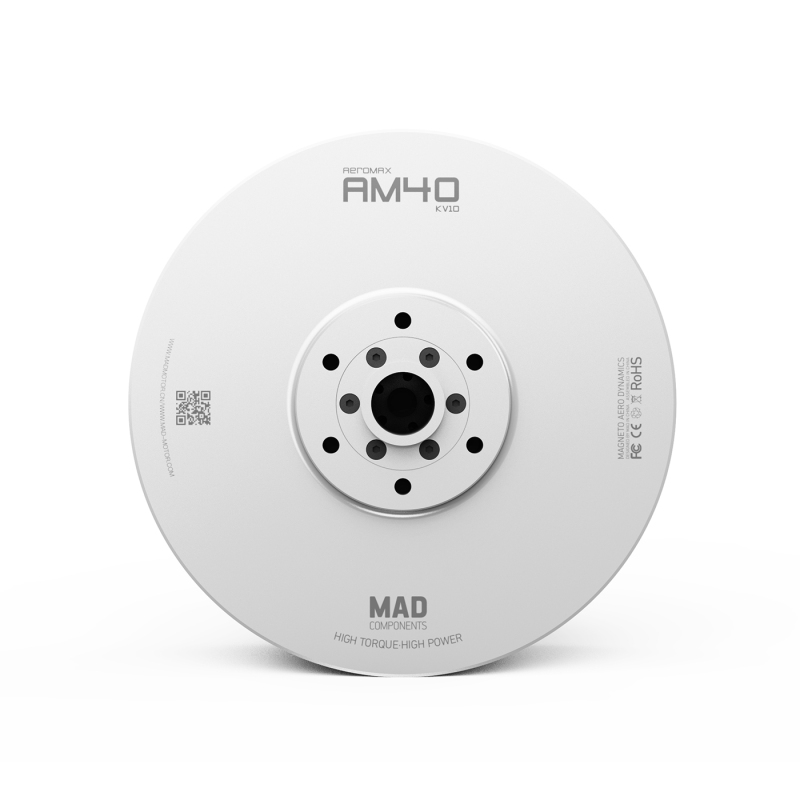

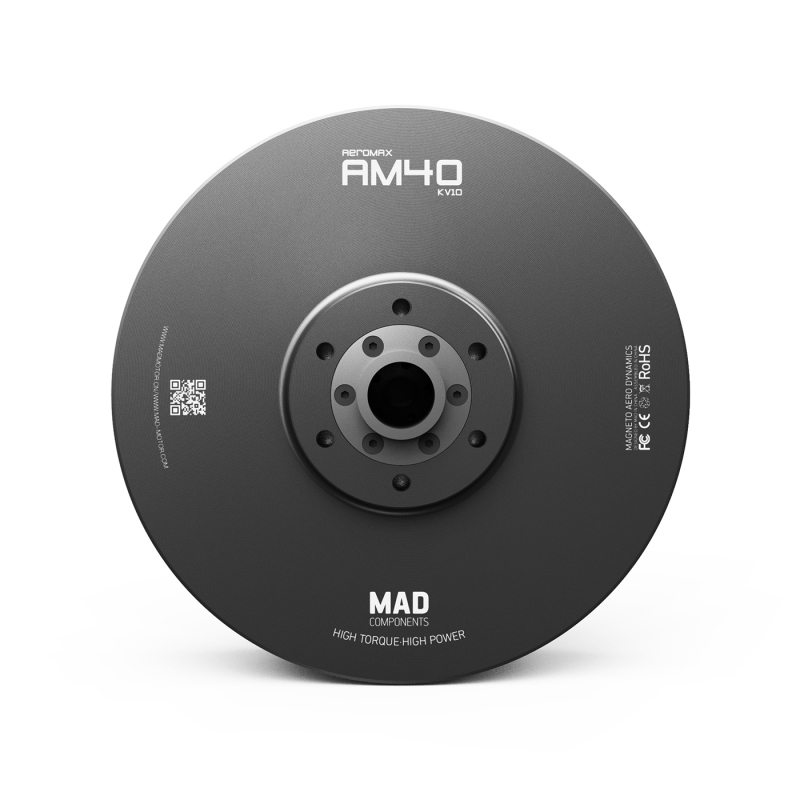

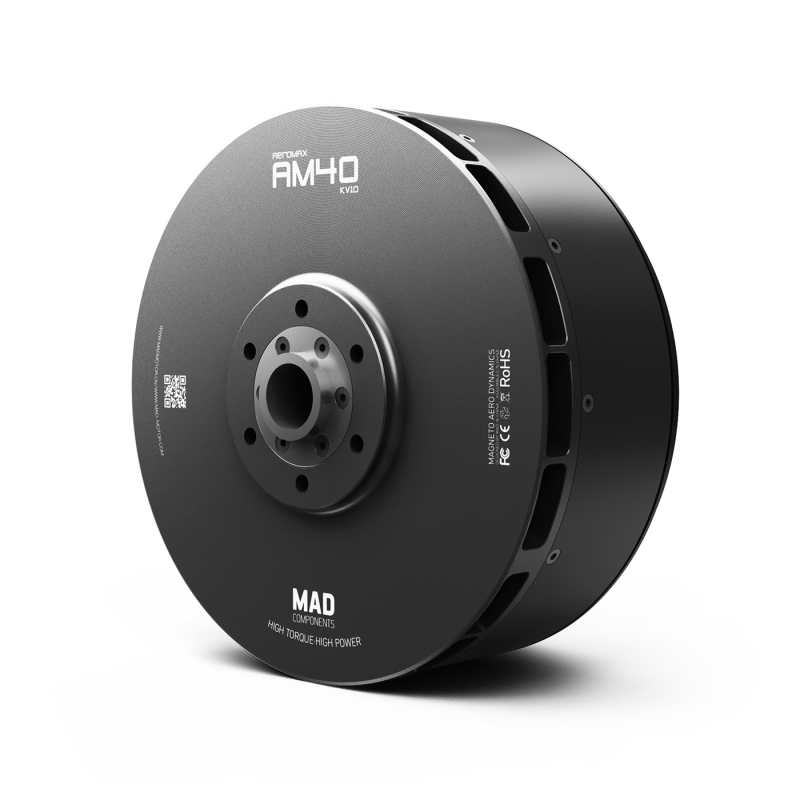

AM40 Heavy-Lift Drone Motor

SKU:
  1. Maximizing thrust-to-weight ratio
    Rated Thrust: 45-50Kgf| Peak Thrust: 97Kgf
    Ultra-Lightweight Design: 3.6Kg
  2. Motor Only Purchase:
    A:Includes a temperature sensor (PT1000).
    B:With an encoder cable+ temperature  sensor PT1000
  3. Power System Kit Purchase:
    kit A:without lock propeller function  Kit includes:1× ESC (standard firmware) 1× CW or CCW propeller
    kit B:Motor features a magnetic encoder to detect and lock the propeller at a specified stop position (requires compatible ESC firmware).
    Kit includes:1× ESC (with required firmware) 1× CW or CCW propeller(57x19)
$0.00 $1,028.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    10KV
  • Version:
    Motor A
    Motor B
    Power System Kit A CW
    Power system Kit A CCW
    Power system kit B CW
    Power system kit B CCW
  • Color:
    Black
    Black
    White
    White
    Please select the information you wantX
Quantity
-
+
Download
  • AM40 Drone Motor
  • AM40 Heavy-Lift Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • AM40 Heavy-Lift Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
1/1
  • AM40 Drone Motor
  • AM40 Heavy-Lift Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • AM40 Drone Motor
  • Description
  • 10KV
  • 34KV

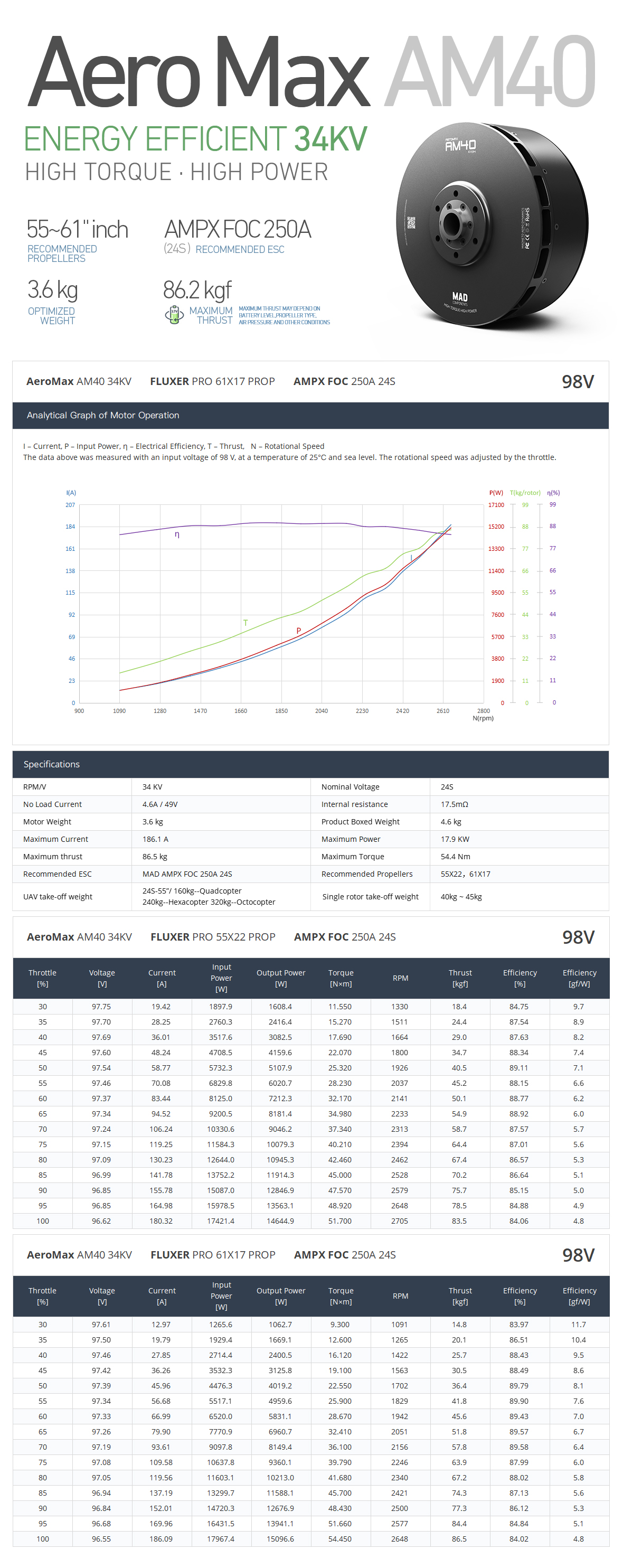

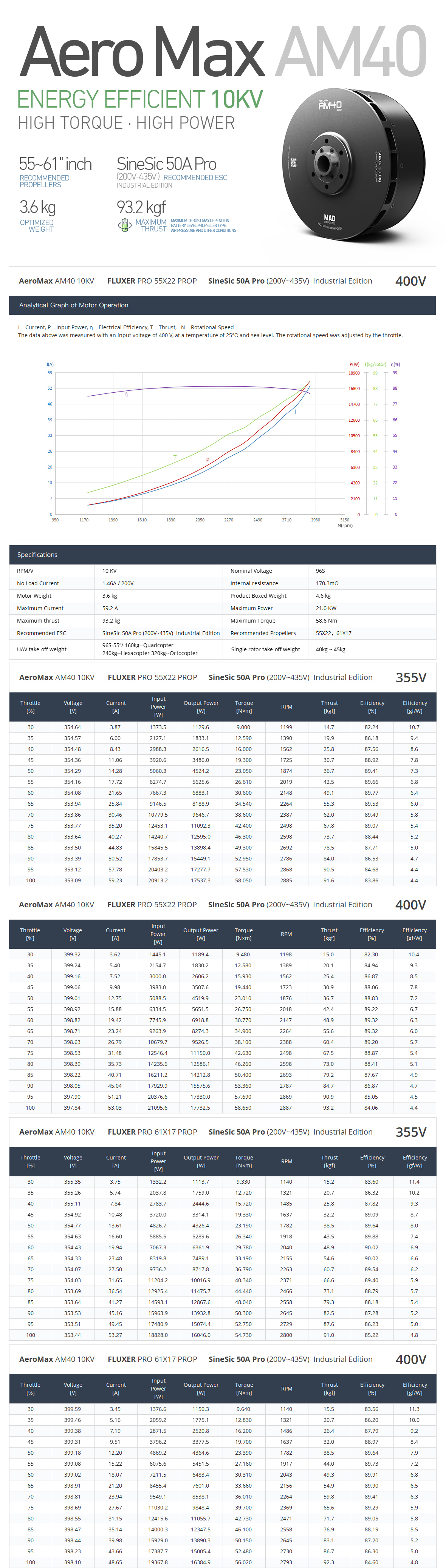

Motor Data
Motor Model MAD AeroMax AM40 V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:167 × 83.5 mm Magnet Degree 180°C
Degree of Protection IP45 Cable Length 200 mm (extended Enameled wires
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:50 M6×6 Motor Balance ≤20 mg
Shaft Diameter IN: 25 mm Motor Mounting Holes D:75 M6×6
Bearing NSK 6205 ZZ *2 Disruptive test 1000 V
