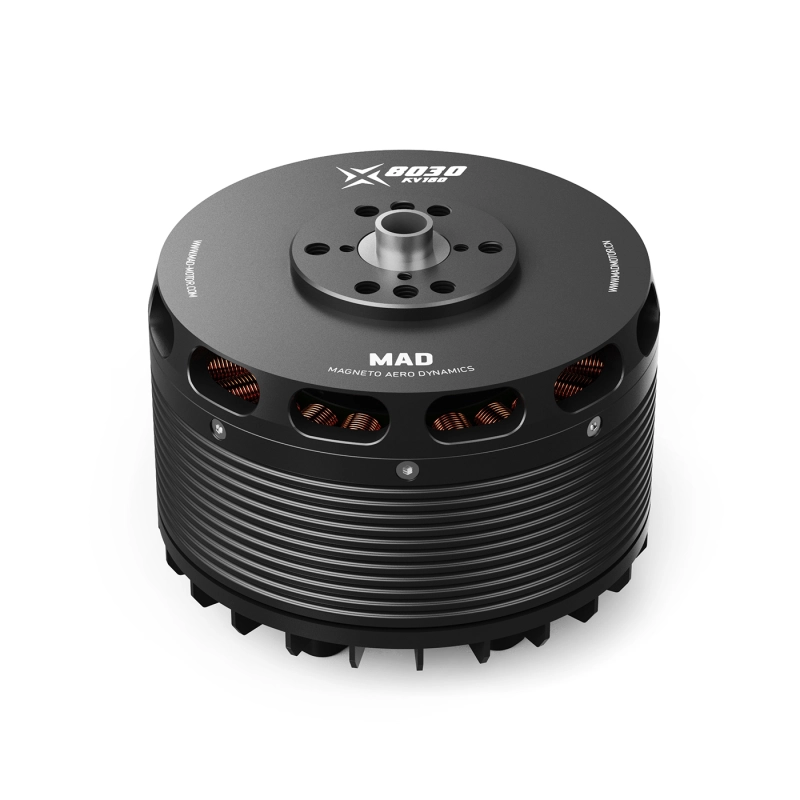

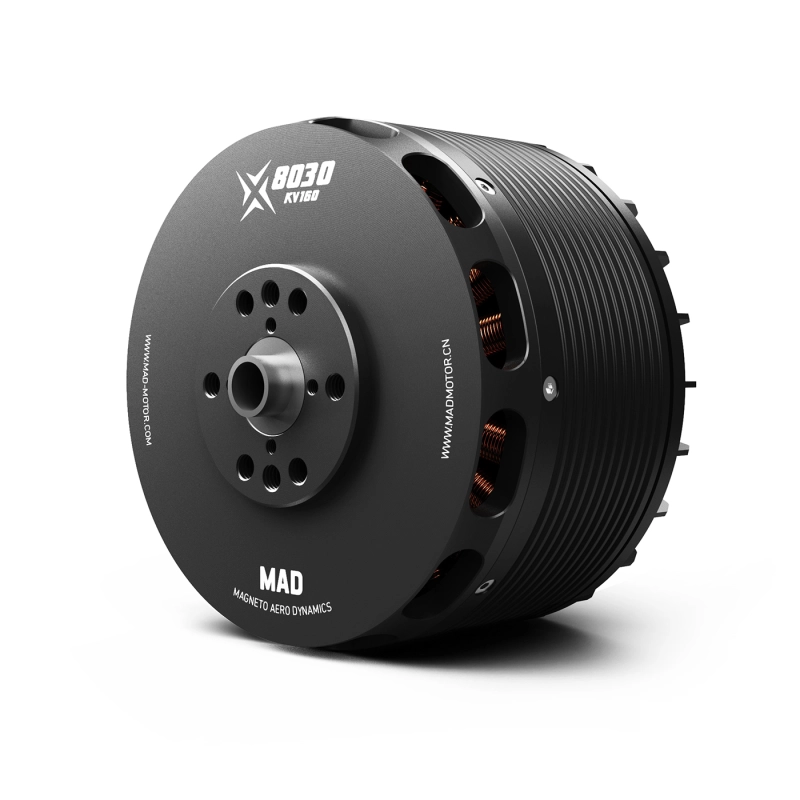

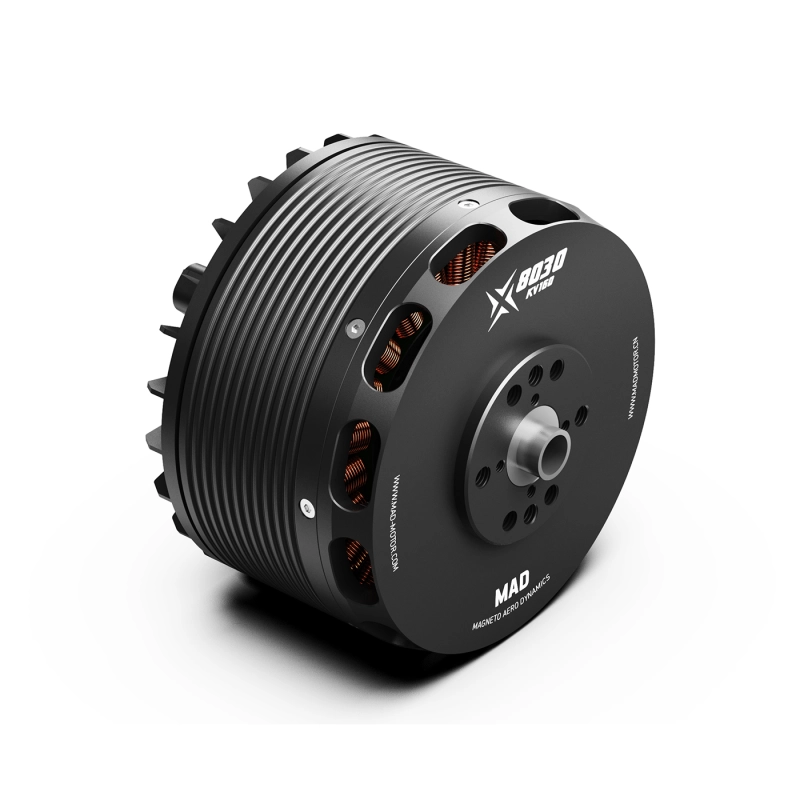

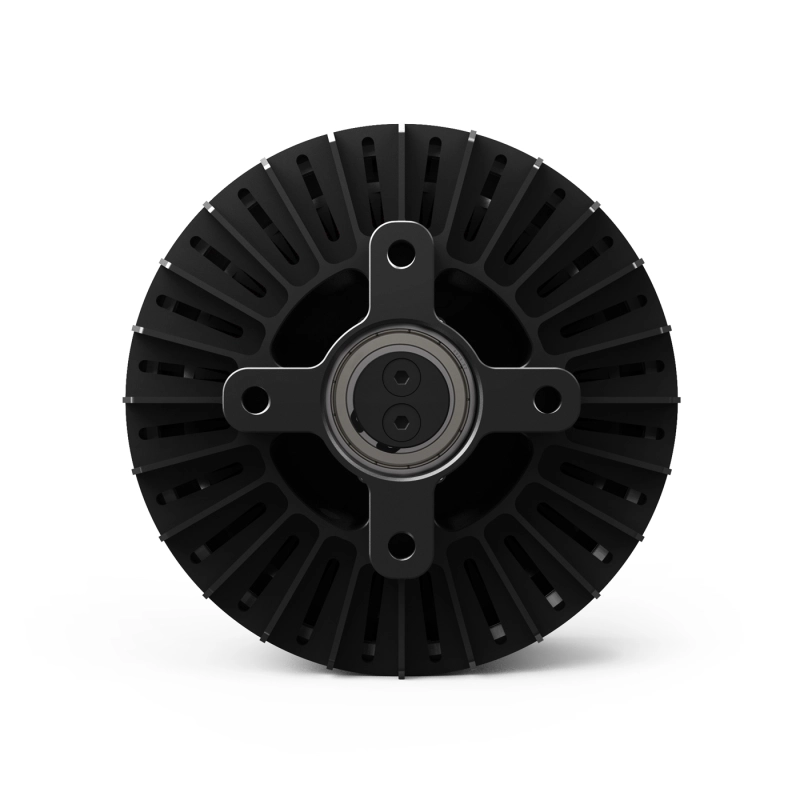

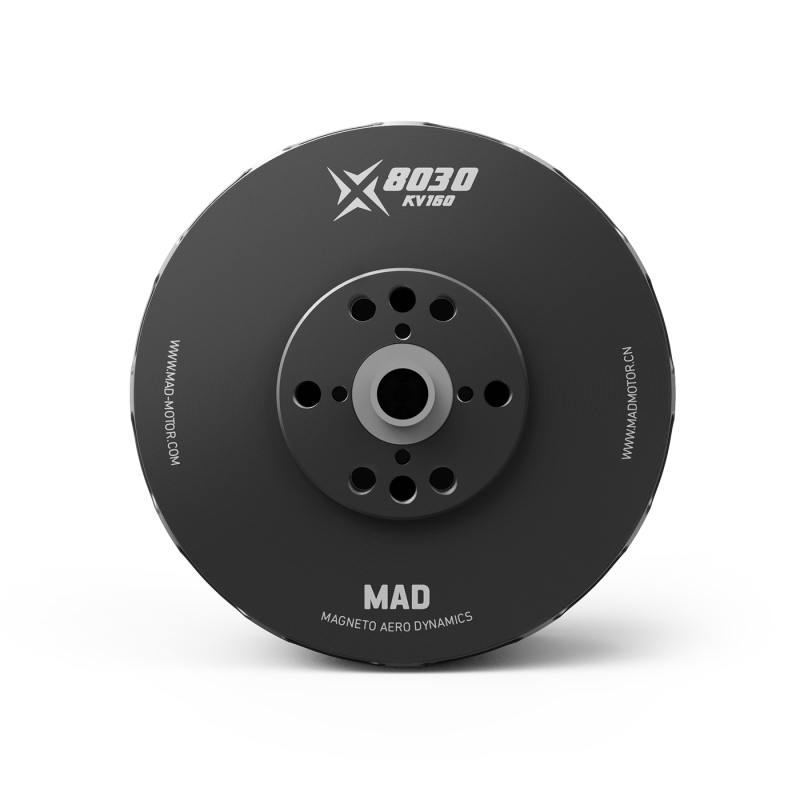

X8030 eVTOL Airplane Drone Motor
SKU: 0101DJ1879
$319.00
1/1
Motor Data |
|||
| Motor Model | MAD X8030 IPE V1.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |

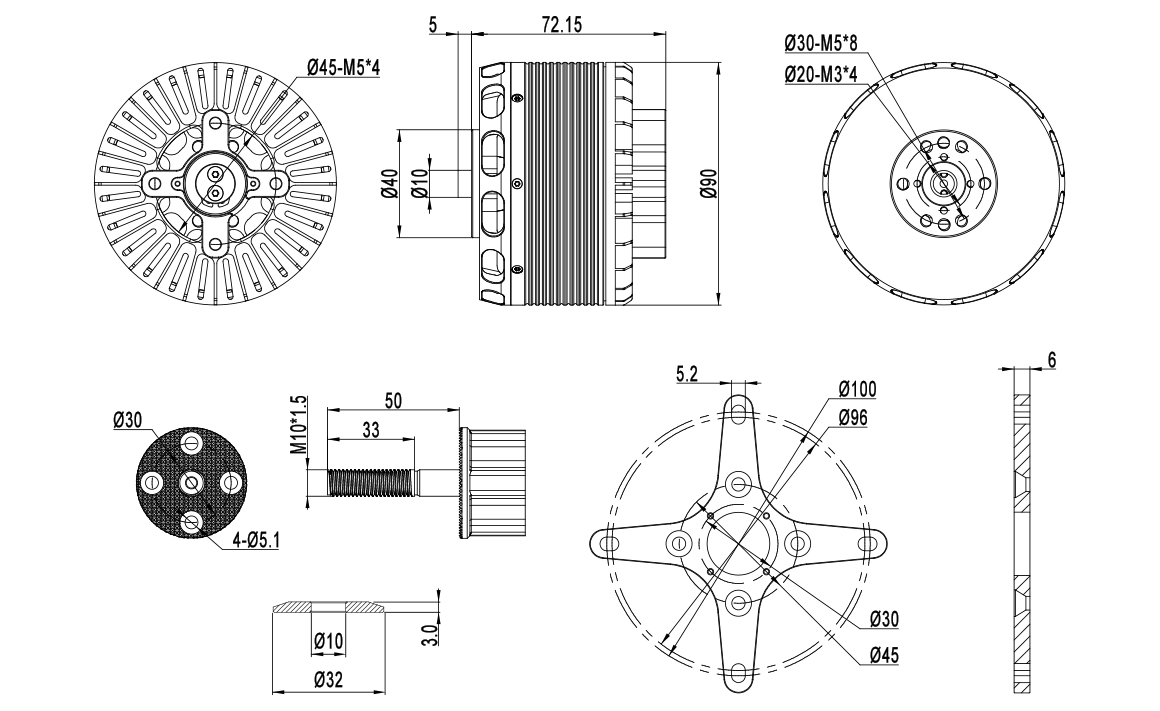

| Motor Size | D:90 ×77.15 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 100mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, M10 Nut | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:45 M5×4 |
| Bearing | 6900ZZ *3 | Disruptive test | 1000 V |
