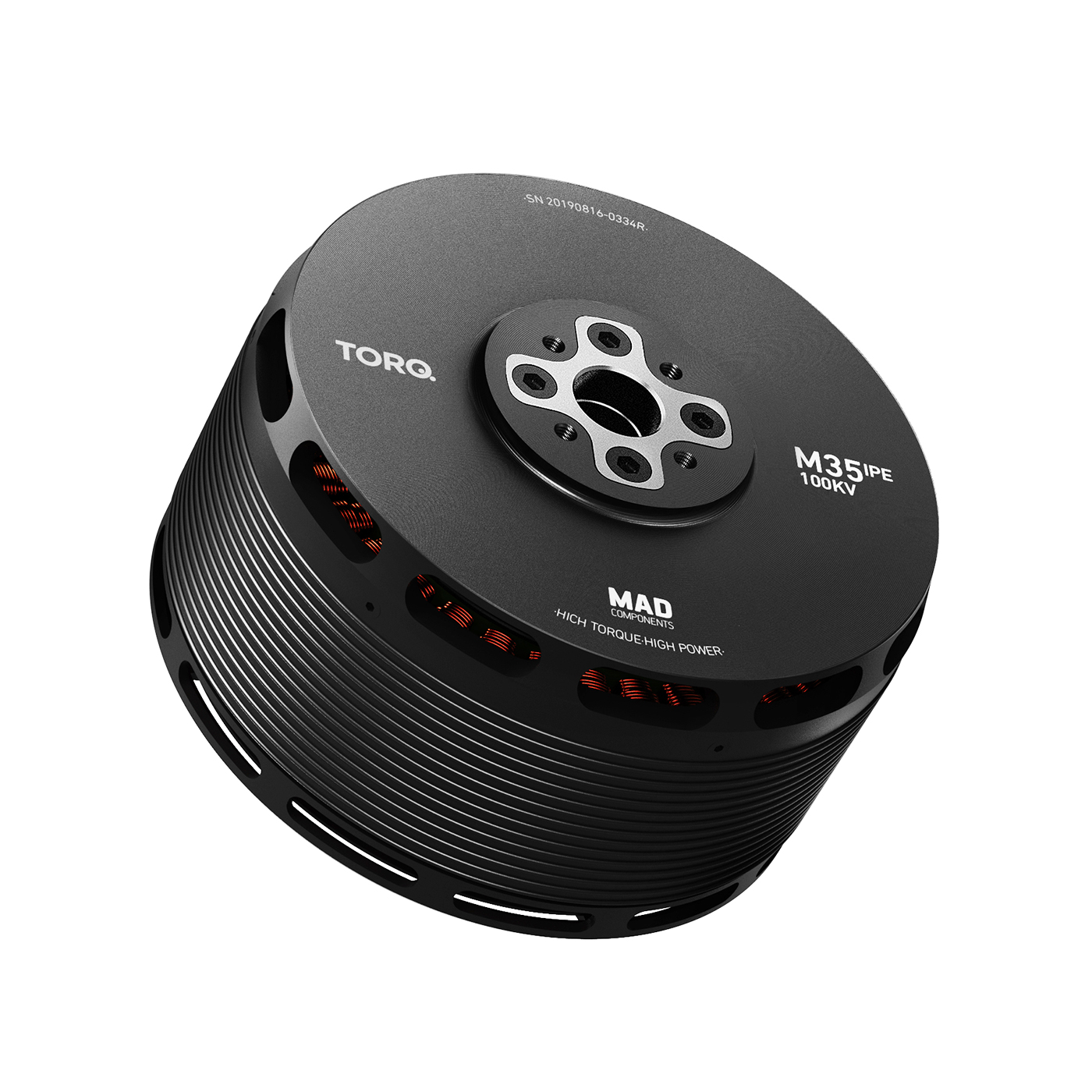

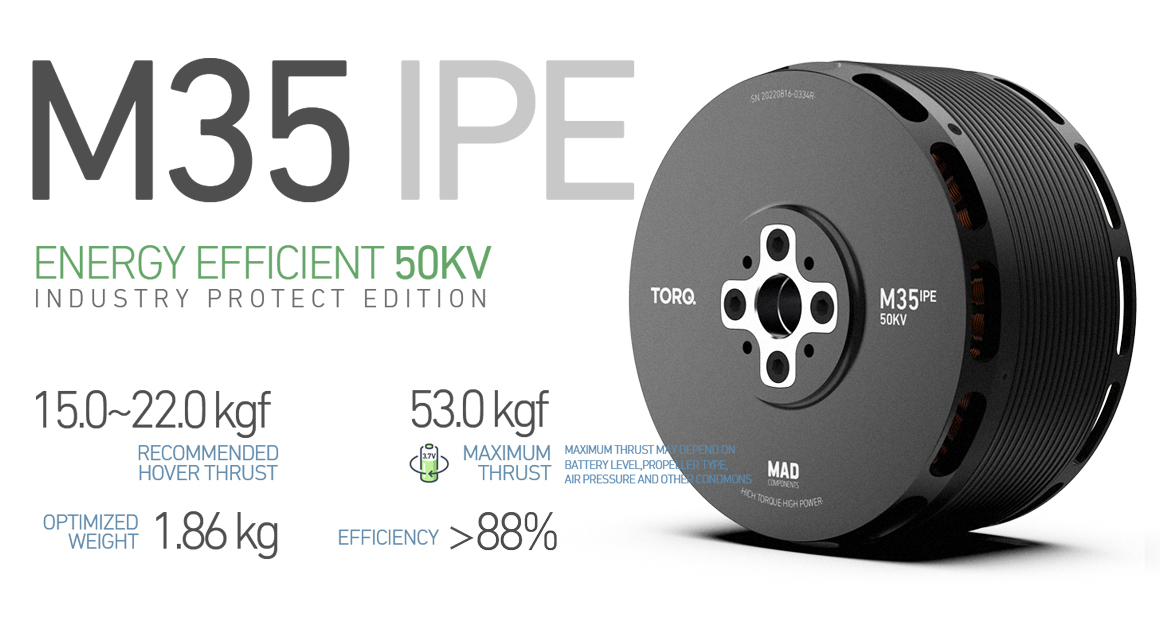

M35 TORQ IPE brushless drone motor

Name: M35 TORQ IPE brushless drone motor
Brand: MAD COMPONENTS
SKU: 0101DJ0799
Price: 929 USD
Availability: InStock

SKU: 0101DJ0799

M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs and UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying and anything in between where professional industrial grade propulsion is required. This type of motor is built with industrial grade components for an unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV).

$929.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

Description
50KV

Motor Data
Motor Model	MAD M35 IPE V1.0	Number of pole pairs	15
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:122 × 68.5 mm	Motor Balance	180°C
Degree of Protection	IP35	Cable Length	150 mm (extended Enameled wires）
Centrifugal Heat Dissipation	YES	Rotor Balance	≤10 mg
Propeller Mounting Holes	D:30 M4×4	Motor Balance	≤20 mg
Shaft Diameter	IN: 20 mm	Motor Mounting Holes	D:55 M5×4
Bearing	6904ZZ*2	Disruptive test	500 V
