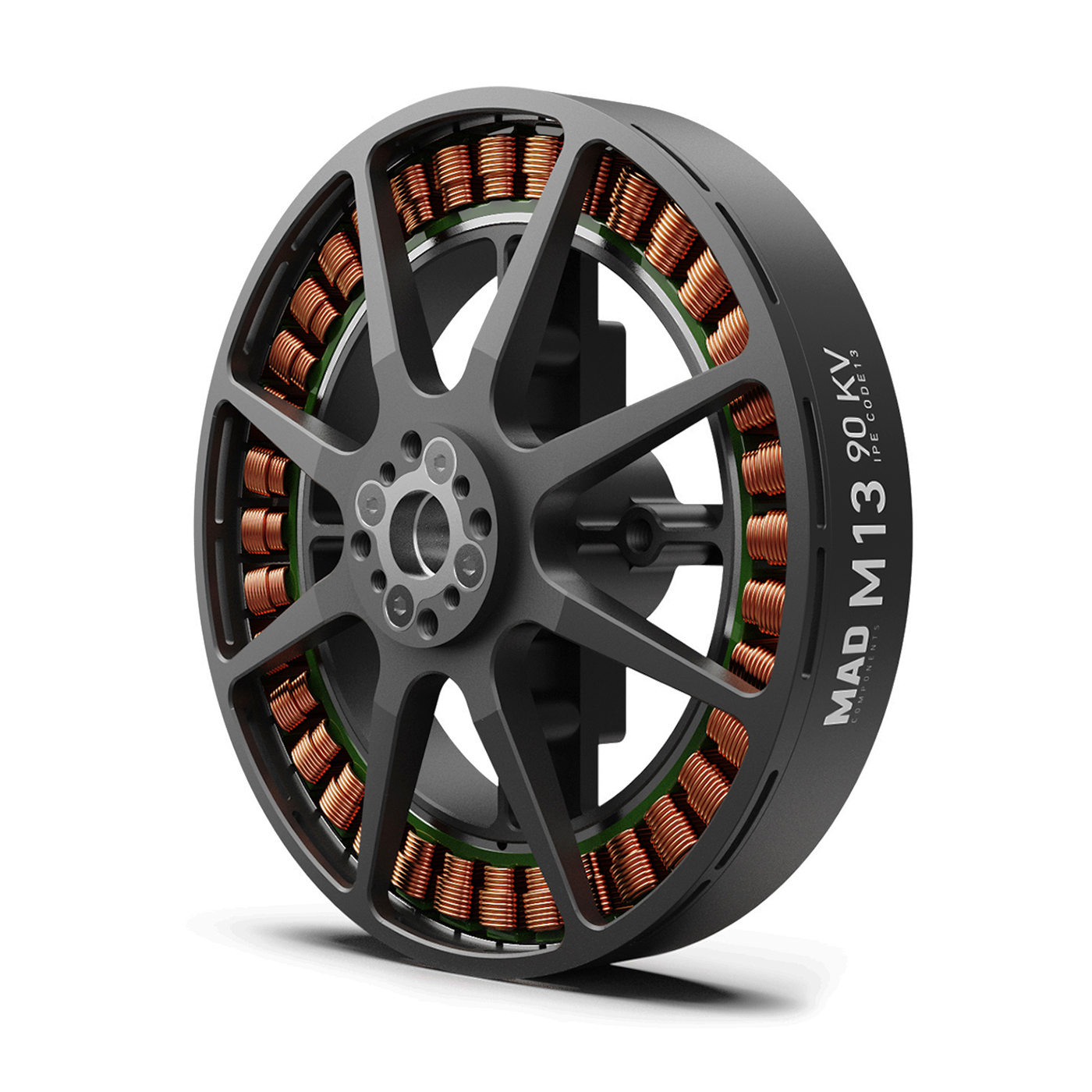

M13 EEE brushless drone motor

SKU: 0101DJ1049
M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying or anything in between where professional industrial grade propulsion systems are required. This type of motor is made with industrial grade components, it is for the long flight time multirotor hexacopter octocopte for the long flight time tethered drone.
$0.00 $339.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    90KV
    Please select the information you wantX
Quantity
-
+
Add to Favorites (0)
  • MAD M13 EEE brushless drone motor for the long flight time multirotor hexacopter octocopter
  • MAD M13 EEE brushless drone motor for the long flight time multirotor hexacopter octocopter
  • MAD M13 EEE brushless drone motor for the long flight time multirotor hexacopter octocopter
  • MAD M13 EEE brushless drone motor for the long flight time multirotor hexacopter octocopter
  • Description
  • 90KV

Motor Data
Motor Model MAD M13 EEE V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:116 × 35 mm Motor Balance 180°C
Degree of Protection Rain protection Cable Length 150 mm (extended Enameled wires）
Centrifugal Heat Dissipation Independent Rotor Balance ≤10 mg
Propeller Mounting Holes D:20 M3×4, D:23 M4×4 Motor Balance ≤20 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:50 M5×4
Bearing 6802ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
